HUBBELL WIRING DEVICE-KELLEMS HBL300FO Connector,3R, 4X, 12,Single Pin,Ornge

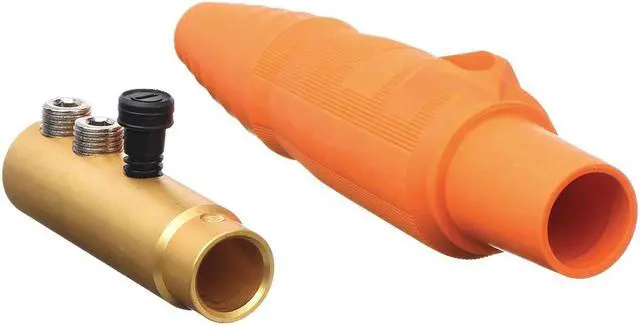

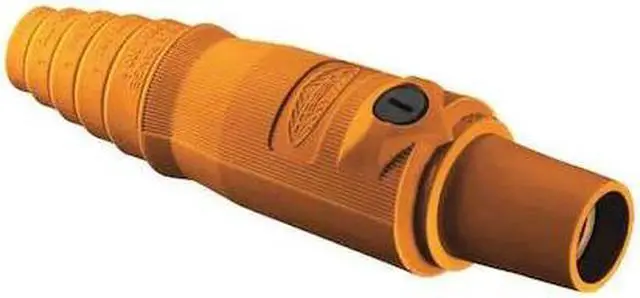

The HUBBELL Connector, Series 16, is a single pole female connector intended for use in temporary electrical power distribution applications. It features a taper nose style and accommodates cable sizes from 6 AWG to 2/0 AWG. The connector uses a double set screw terminal connection and is constructed with a thermoplastic elastomer housing.

Key Features of the HUBBELL Series 16 Single Pole Female Connector:

• Amperage Rating: Rated for up to 300 A (AC/DC)


• Voltage Rating: Suitable for use at up to 600V AC or 250V DC


• Cable Range: Accepts wire sizes from #6 to 2/0 AWG


• Contact Material: Brass single cam contact


• Terminal Connection Type: Double set screw terminal connection secures the conductor within the connector


• NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12 requirements for protection against dust, water, and corrosion


• Standards Compliance: Listed under UL and cUL; meets ANSI/NFPA 70 (NEC) standards; fits UL1691 specifications


• Housing Material: Thermoplastic elastomer construction


• Flammability Rating: HB per UL94 standard
