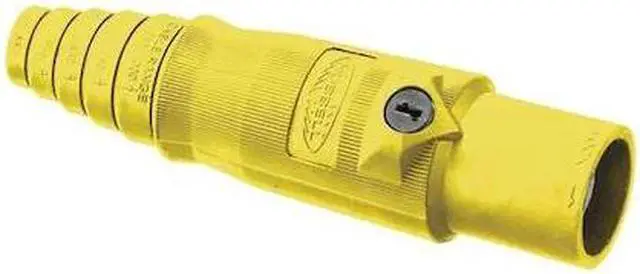

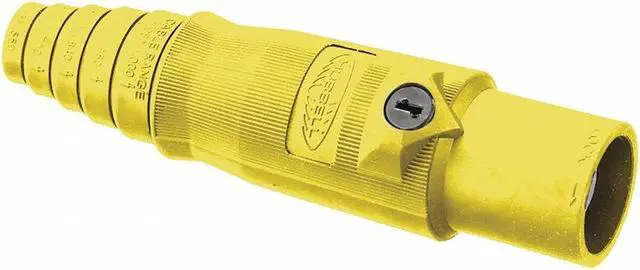

HUBBELL WIRING DEVICE-KELLEMS HBL400MY Connector,3R, 4X, 12,Male,Ylw,2/0 to 4/0

The HUBBELL Connector, Series 16, is a single pole male connector intended for use in temporary electrical power distribution applications. It accommodates cable sizes from 2/0 to 4/0 AWG and features a taper nose style with double set screw terminal connections. The housing is constructed from thermoplastic elastomer and includes an Insulgrip® style housing to assist with assembly and disassembly.

Key Features of the HUBBELL Series 16 Single Pole Male Connector:

• Amperage Rating: Rated for operation at up to 400 A AC or DC


• Voltage Rating: Up to 600V AC or 250V DC


• Cable Range: Accepts wire sizes from 2/0 AWG to 4/0 AWG


• Contact Material: Brass contacts with a single cam design; see manufacturer specifications regarding performance characteristics


• Terminal Connection Type: Double set screw terminals designed to hold conductors in position


• NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12 requirements


• Standards Compliance: Listed under ANSI/NFPA 70 (NEC), UL/cUL standards, UL Enclosure Types, and UL94 HB flammability rating


• Compatible With: Compatible with Series 15, Series 16, and Insulgrip devices; meets UL1691 specifications
