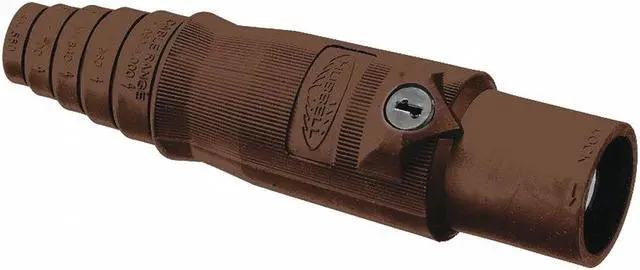

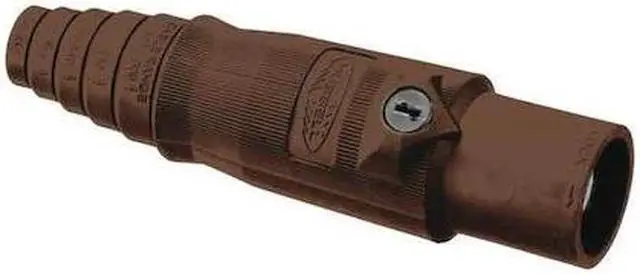

HUBBELL WIRING DEVICE-KELLEMS HBL400MBN Connectr,3R, 4X, 12,Male,Brwn,2/0 to 4/0

The HUBBELL Connector, Series 16, is a single pole male connector intended for temporary electrical power distribution. It accommodates cable sizes from 2/0 to 4/0 AWG and features a taper nose style with double set screw terminal connections. The housing is constructed from thermoplastic elastomer and includes an Insulgrip® style design.

Key Features of the HUBBELL Series 16 Male Connector:

• Amperage Rating: Rated for up to 400 A (AC/DC)


• Voltage Rating: Suitable for use at up to 600V AC or 250V DC


• Cable Range: Accepts cables sized from 2/0 to 4/0 AWG


• Contact Material: Brass single cam contact


• Terminal Connection Type: Double set screw terminal connection ensures reliable wire retention


• NEMA Enclosure Ratings: Meets NEMA Types 3R, 4X, and 12 requirements


• Standards Compliance: Listed under UL1691; meets ANSI/NFPA70 (NEC), cUL, UL94 HB flammability rating


• Compatible With: Compatible with Series 15, Series 16, and Insulgrip devices
