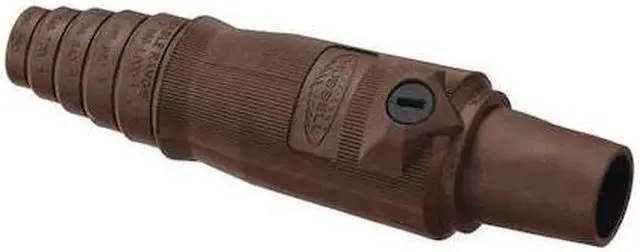

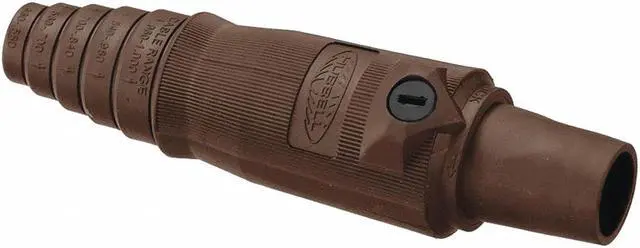

HUBBELL WIRING DEVICE-KELLEMS HBL400FBN Connector, 3R, 4X, 12, Female, Brown,

The HUBBELL Series 16 Single Pole Connector is a female, taper nose electrical connector designed for use with 2/0 to 4/0 AWG cables. It features a thermoplastic elastomer housing and brass contacts, providing compatibility with temporary power distribution systems where single pole devices are required. This connector is rated for up to 400 A and supports both AC (up to 600V) and DC (up to 250V) applications.

Key Features of the HUBBELL Series 16 Single Pole Connector:

• Amperage Rating: Rated for up to 400 A at both AC and DC voltages


• Cable Range: Accepts cable sizes from 2/0 AWG to 4/0 AWG


• Contact Material: Brass contact for electrical connection


• Housing Material: Thermoplastic elastomer housing enhances durability


• NEMA Enclosure Ratings: Suitable for use in Type 3R, 4X, and 12 enclosures


• Terminal Connection Type: Double set screw terminal connection; does not require special tools for installation


• Industry Standards: Meets ANSI/NFPA70, NEC requirements; UL Listed; cUL Listed; UL Enclosure Types certified


• Taper Nose Style: Designed as a single cam-type connector compatible with Series16 devices
