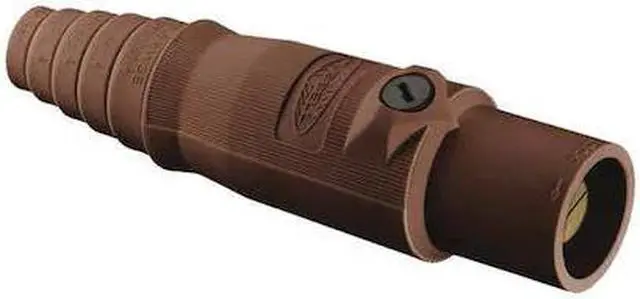

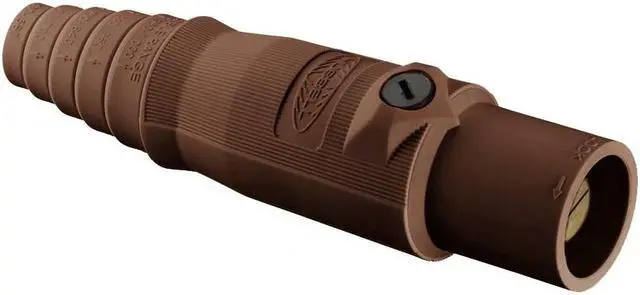

HUBBELL WIRING DEVICE-KELLEMS HBL300MBN Connector,3R, 4X, 12,Single Pin,Brwn

The HUBBELL Connector, Series 16, is a single pole male connector intended for temporary electrical power distribution. It features a Taper Nose style and accommodates cable sizes from 6 AWG to 2/0 AWG. The housing is constructed from thermoplastic elastomer and includes an Insulgrip® style handle. This connector uses a double set screw terminal connection with brass contacts, rated for operation up to 300 A at 600V AC or 250V DC.

Key Features of the HUBBELL Connector, Series 16:

• Amperage Rating: Rated for up to 300 A (AC/DC)


• Voltage Rating: Supports up to 600V AC / 250V DC


• Cable Range: Accepts wire sizes from #6 AWG to 2/0 AWG


• Contact Material: Brass single cam contact


• Terminal Connection Type: Double set screw terminal connection secures conductors in place


• NEMA Enclosure Ratings: For use with NEMA Type3R,4X, and12 enclosures


• Standards Compliance: Meets ANSI/NFPA70 (NEC), UL Listed, cUL Listed requirements


• Compatible With: Designed for use with Series15 and Series16 devices; fits UL1691 standards


• Housing Material: Thermoplastic elastomer housing enhances durability under demanding conditions
