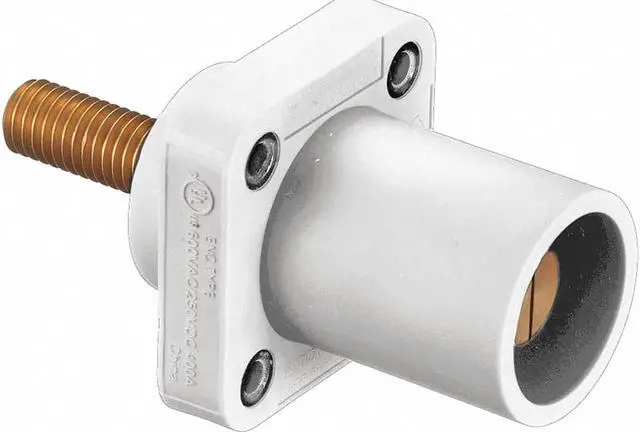

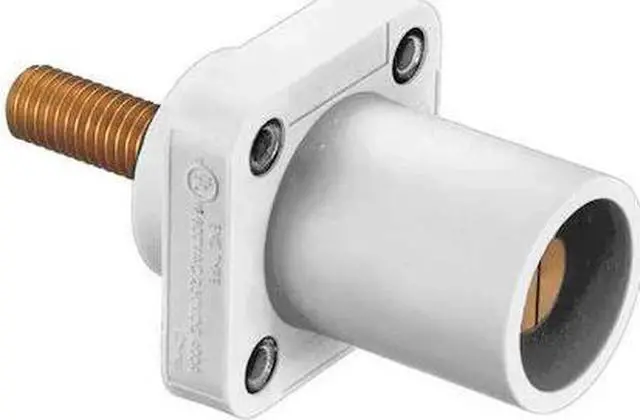

HUBBELL WIRING DEVICE-KELLEMS HBLMRSCW Connector,Male,White,4 to 4/0,Stud

The HUBBELL Connector, Male, White, 4 to 4/0, Stud is a single pole receptacle rated for use in high ampacity electrical connections. This male connector is compatible with Series 16 devices and accommodates wire sizes from #4 AWG to 4/0 AWG. It includes a threaded stud terminal connection and is constructed with a thermoplastic elastomer housing; intended for installation in indoor or protected environments as specified by the manufacturer.

Key Features of the HUBBELL Connector, Male, White, 4 to 4/0, Stud:

• Amperage Rating: Rated for up to 400 A (300/400A AC/DC)


• Voltage Rating: Suitable for applications up to 600V AC or 250V DC


• Terminal Connection Type: Threaded stud design allows mounting and connectivity


• Wire Size Compatibility: Accepts conductor sizes from #4 AWG to 4/0 AWG


• Material Construction: Brass contacts within a thermoplastic elastomer housing


• NEMA Enclosure Ratings: Meets NEMA Types 12, 3R, and 4X requirements when properly installed


• Standards Compliance: Listed under ANSI/NFPA70 (NEC), UL/cUL standards including UL1691


• Mounting Style: Threaded hole mounting; includes screw mounting hardware
