HUBBELL WIRING DEVICE-KELLEMS L430R9 Pin & Sleeve Receptacle, 30 A, 250V AC,

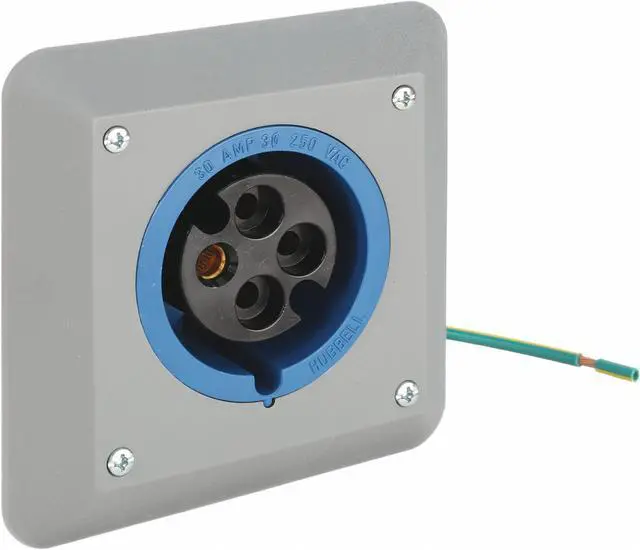

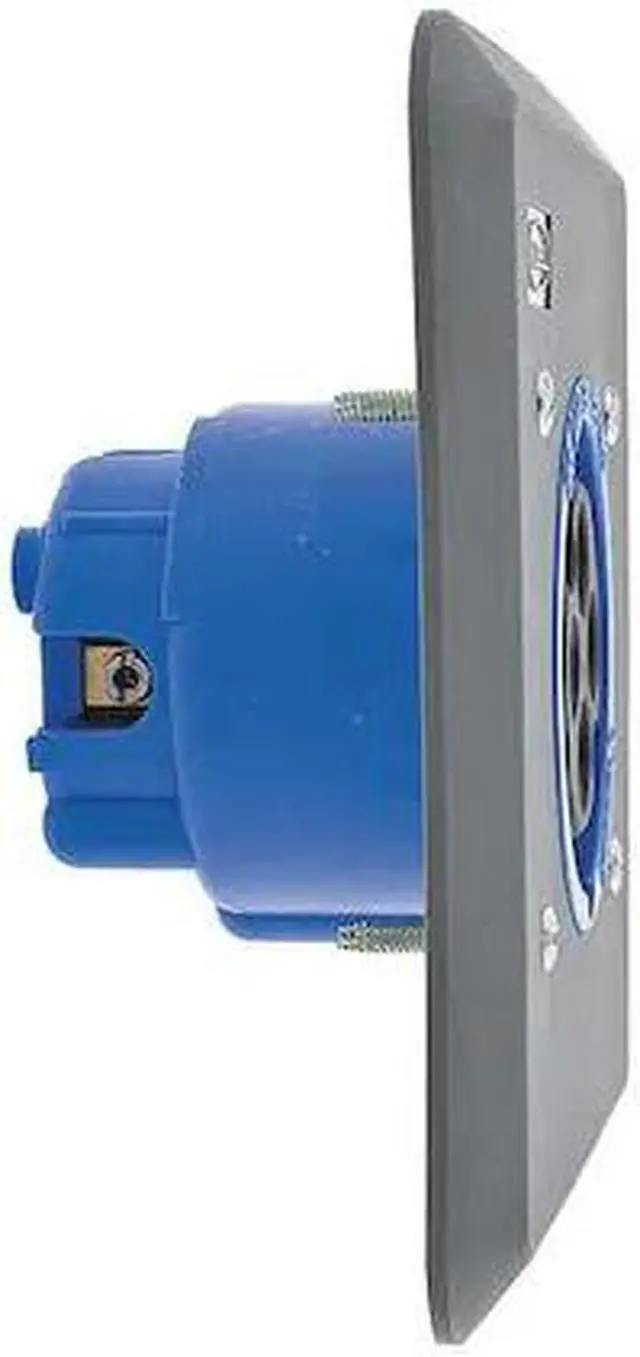

The HUBBELL IEC Pin and Sleeve Receptacle, 30A, 250V is an IP22 rated enclosure intended for use in industrial applications requiring up to 30A, 250V AC. This low profile device with compact dimensions features a design suitable for installations where space is limited. It is compatible with standard IEC 60309 pin and sleeve devices and supports three-phase operation at 30A, 250V AC.

Key Features of the HUBBELL IEC Pin and Sleeve Receptacle:

• Current/Voltage Rating: Rated for 30 A, 250V AC, three-phase applications


• Material: Zytel 101 nylon thermoplastic housing


• Connection Type: Screw terminals with pressure terminal screws accommodate wire sizes from 12 to 8 AWG


• Ingress Protection: IP22 rated enclosure provides protection against limited water ingress


• Operating Temperature Range: -40°C to +75°C


• Coding & Identification: Blue color coded housing; shrouded design enhances connection integrity


• Standards Compliance: Meets CSA C22.2 No.0.17 & No.182.1, UL1682, UL94 HB flammability rating, IEC standards


• Additional Features: Split sleeves with self-adjusting stainless steel springs; grounded per IEC convention; single gang flange mount style
