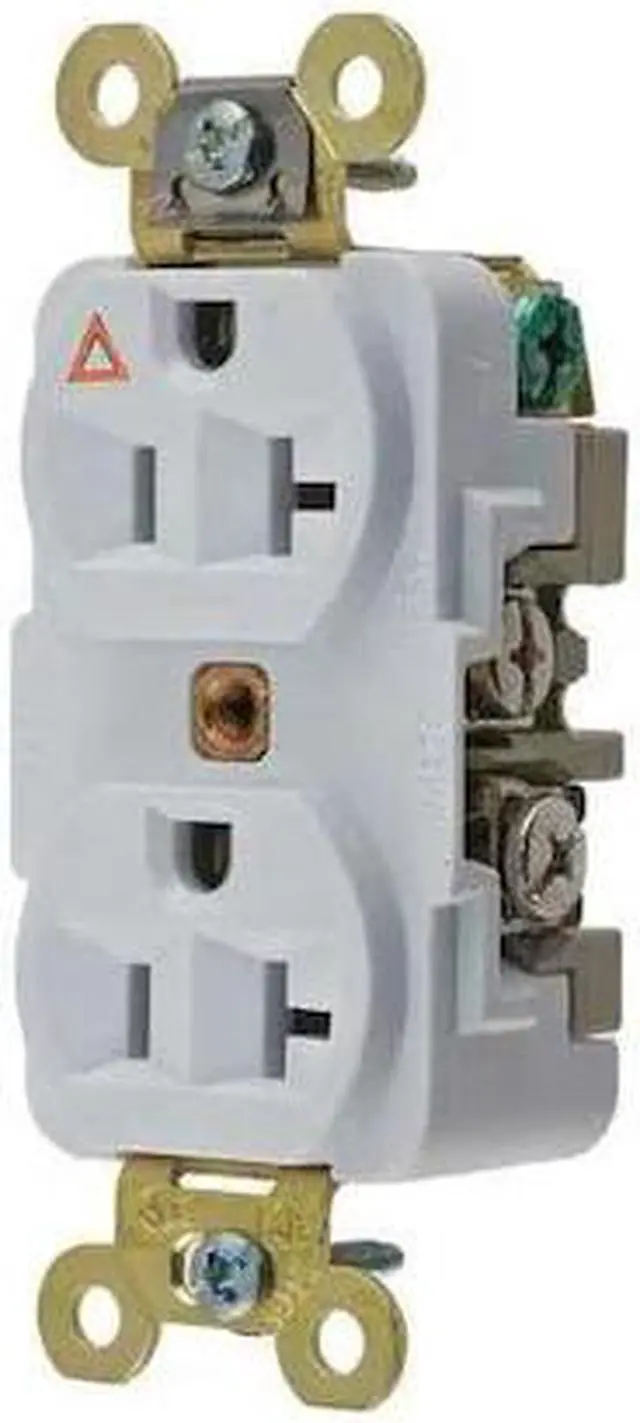

HUBBELL WIRING DEVICE-KELLEMS IG5362W Duplex Straight Blade Receptacle, 5-20R,

The HUBBELL 5-20R Isolated Ground Duplex Receptacle is a flush mount electrical outlet rated for 20A and 125V AC. Suitable for use in commercial and industrial environments, this receptacle includes an isolated ground system that separates the ground contacts from the mounting strap. It accommodates both back and side wiring with screw terminals, accepts #12#10 AWG copper wire, and has a traditional duplex configuration.

Key Features of the HUBBELL 5-20R Isolated Ground Duplex Receptacle:

• Isolated Ground: Insulation barrier construction separates ground contacts from the mounting strap; green grounding screw connects directly to grounding contacts.


• NEMA Configuration: Standard 5-20R (2 pole, 3 wire) suitable for single-phase circuits.


• Specification grade; rated for operation at 20A, 125V AC


• Material Construction: Nylon housing with reinforced PET base; nickel-plated brass contacts; phosphor bronze power contacts.


• Wiring Options: Back and side wired screw terminals compatible with #12#10 AWG stranded or solid copper wire only.


• Electrical Ratings: Rated at 20A, 125V AC; withstands dielectric voltage of minimum 2,000V; maximum continuous operating temperature of 75°C (167°F).


• Certifications & Standards: UL Listed to UL498 File E2186; CSA Certified C22.2 No.42 File 285; Federal Specification W-C-596; NEMA WD-6 compliant.


• Mounting Type: Flush mount design includes mounting hardware and grounding clip.
