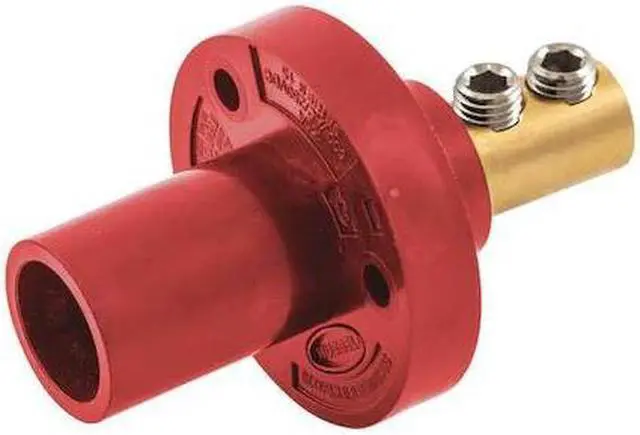

HUBBELL WIRING DEVICE-KELLEMS HBL15MRR Receptacle, Male, Red, 150AC/DC, 8-2

The HUBBELL Receptacle, Male, Series 15 is a single pole device intended for use in industrial settings where temporary electrical power distribution is needed. This male inlet receptacle includes a double set screw termination and accommodates wire sizes from #8 to #2 AWG. It is rated for up to 150 amps at 600V AC or 250V DC and is constructed with a thermoplastic elastomer housing and brass contacts for reliable connectivity in indoor dry locations unless additional protection is provided.

Key Features of the HUBBELL - Receptacle, Male, Series 15:

• Amperage/Voltage Rating: Rated for 150 A; supports up to 600V AC or 250V DC operation


• Cable Range: Accepts cable sizes from #8 to #2 AWG


• Connection Type: Includes a double set screw termination


• Material Construction: Housing made from thermoplastic elastomer; contact material is brass


• NEMA Enclosure Ratings: For use in NEMA Types 12, 3R, and 4X enclosures when installed according to manufacturer instructions


• Mounting Style: Screw mount with through hole mounting design; includes mounting hardware


• Standards Compliance: Meets ANSI/NFPA 70 (NEC), UL Listed, cUL Listed requirements; fits UL1691 standard


• Pole Configuration: Single pole (1-pole) device compatible with Series 15 products
