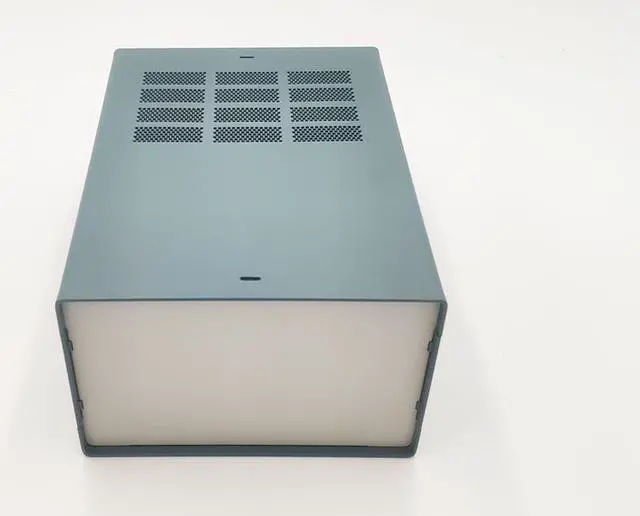

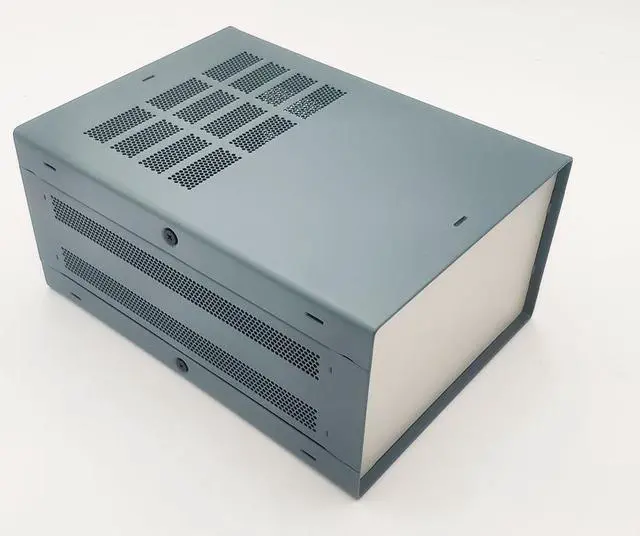

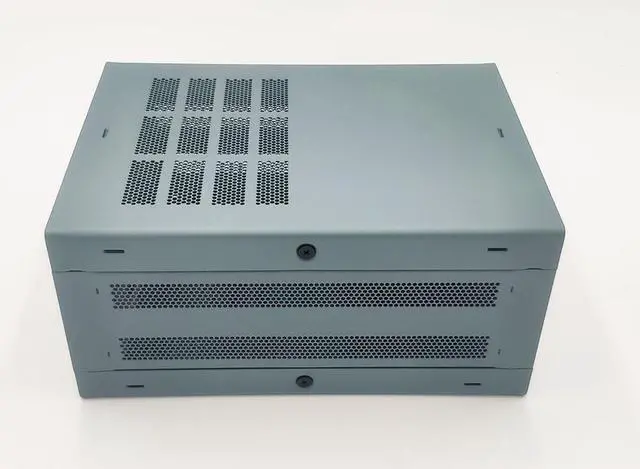

DIY Electronic Enclosure 3U 131 x 279 x 203 mm. Full Aluminum SLATE GREY

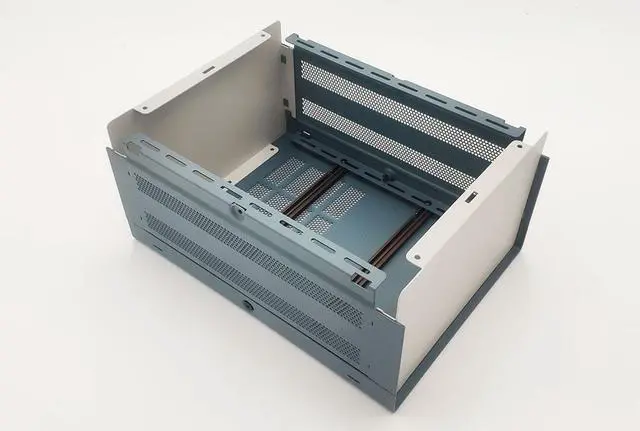

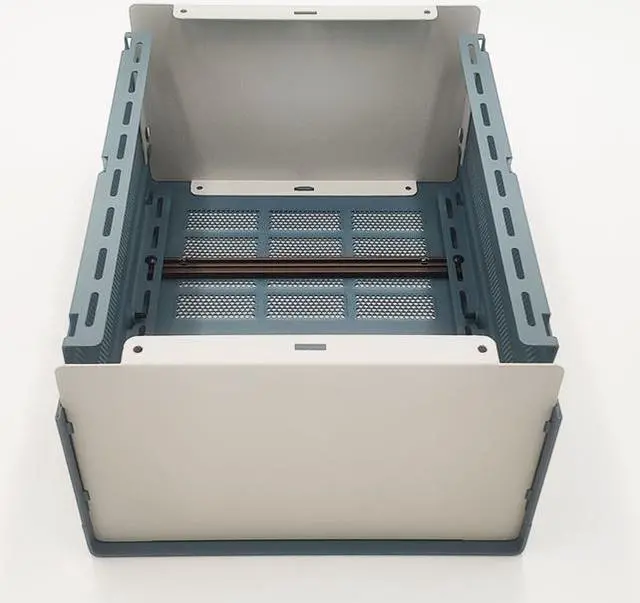

Our SA Series of stand alone general use electronic enclosures is a highly versatile line of quality enclosures for both industrial and hobbyist use. The high grade aluminum body provides a strong and light weight structure and our “open frame” design, allows easy access to the components being assembled inside. The Aluminum front and rear panels are ideal for end user customization. Available in 24 different sizes and configurations, the SA Series enclosures come flat packed and its unique “snap together” design requires only 4 screws to complete the assembly.

Standards and Material:

• Conform toKEY_TAB IEC-60 297-1.


• Premium grade (AL 5052) aluminum.


• Designed and manufactured under ISO 9001:2015 and ISO 14001:2015


• All materials RoHS compliant.

Part Lists:

• Front Rear Panel 2 pieces


• Side Frame 2 pieces

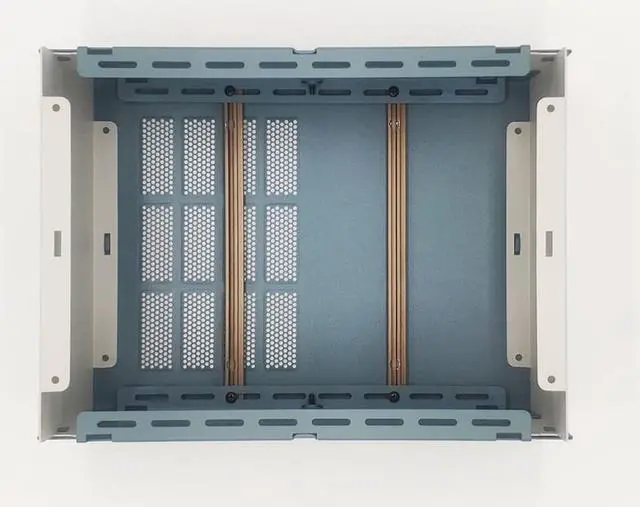

• Component Mount bar 2 pieces


• Umbrella Phillips screw M3-6 4 pieces


• Top / Bottom Cover 2 pieces


• Umbrella Philips dog point Screw M4-8 4 pieces


• Rubber feet 4 pieces

Dimension:

Outside: 131 x 279 x 203 mm.
Inside: 127 x 259 x 183 mm.
Internal component mount bar install:KEY_TAB Height -10 mm (1 cm.) If install top and bottom together: Height - 20 mm (2 cm.)
