BONAEVER IP68 Waterproof Cable Connector 3-Channel 3-Poles, Outdoor Waterprrof Junction Box Connector,Ideal for 2 or 3 Pin Cables Ø4-12mm,Use for Outdoor Billboards,Tunnel Lights,Road Landscape Lights

Features:

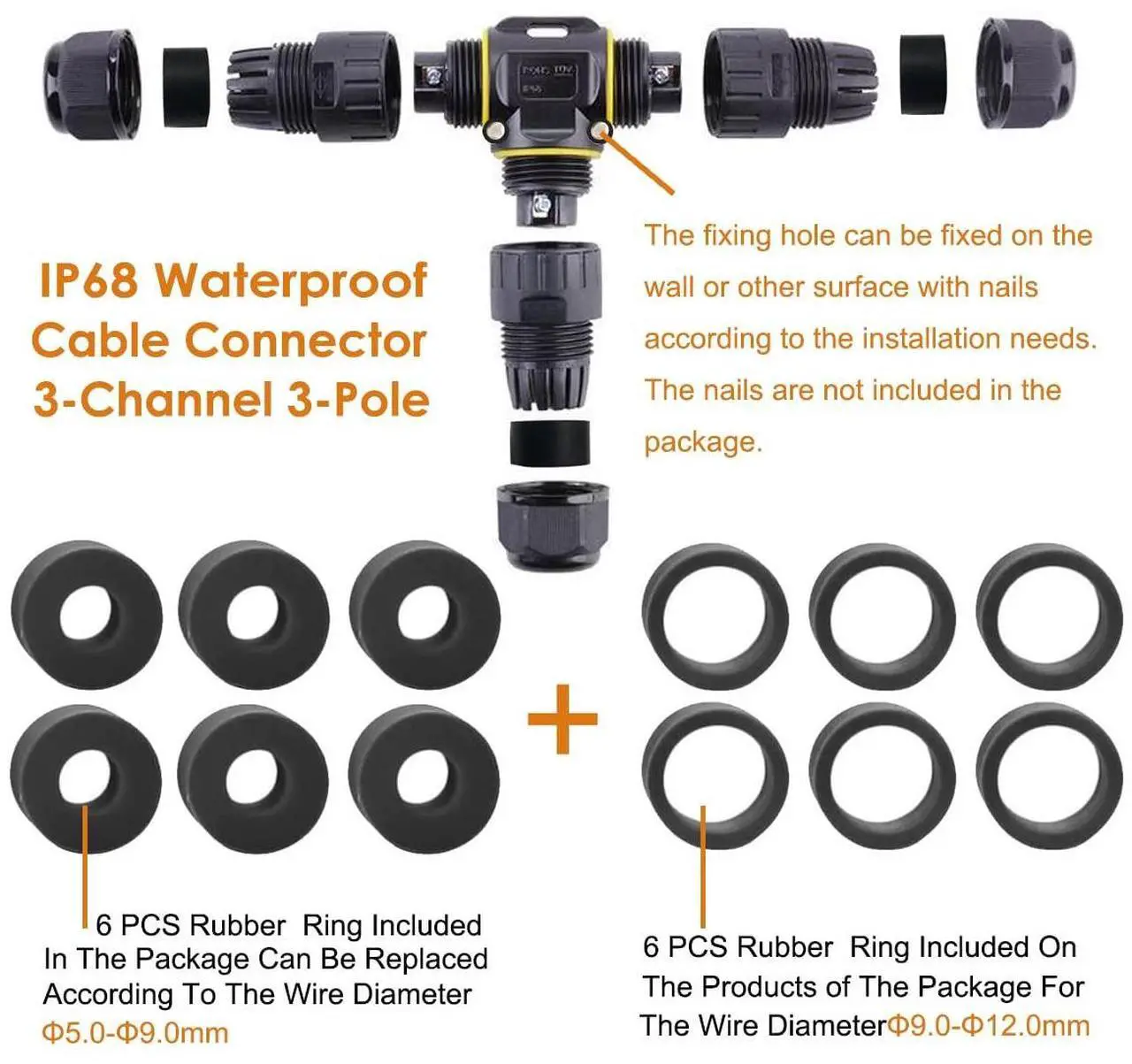

"T Shape"Junction Box Power Cable Connector. This is a safe DIY tool. Can be used to repair and extend power cables. 3 Channel (3-pole) M20 plug connector, with two sizes of rubber ring.Available for 2 or 3-core cables,Cable Size : Ø5-9mm/9-12mm,wire diameter:Ø0.5-2.5 mm²(AWG24-13). the connectors include "live wire"&"neutral wire"&"earth wire". Rated voltage: Max 450v, rated current: Max 24A

Waterproof Grade:IP68 Waterproof / Moisture-proof / Dust-proof. Rubber rings and clamping nuts provide the perfect waterproof and excellent sealing, strong waterproof used indoor or outdoor cable wiring connection.Also can be used in the water,but no more than 3 meters

3High quality Material: the casing is made of nylon PA66 with high temperature resistance( -40° C - 110° C); The inner conductor is cooper core filling for better abrasion resistance and electronic conductivity;The sealing element is rubber Ring with perfect waterproof level.

Easy Installation and secure.Unscrew the ends of connector casing, insert wire through directly, fix the wires inside the poles by screwdriver, then tighten the nuts. The cable connector installed in any place where it needs. Note:When finished, check that all nuts are tight.

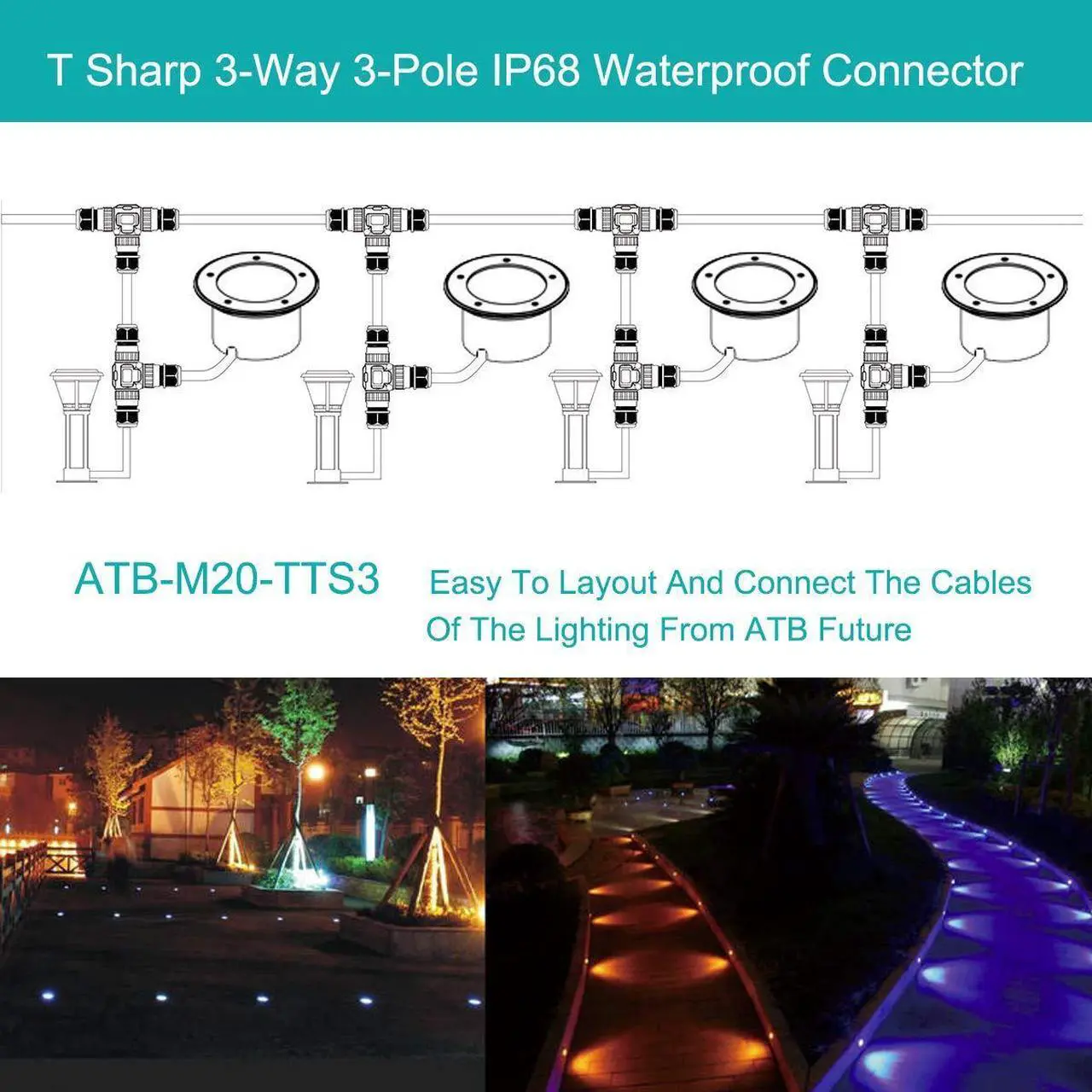

Application. It suits for Indoor or outdoor Cable connection,Such as tri-proof lights,garden lights,tunnel lights,led flood lights,landscape lights,wall lamps,high bay,Canopy lamps,Machine Power Cable Connection,Vehicle Cable Connection.etc.It is also a good DIY tool for repairing or extending your power cables;Suitable for coastal, river or underwater engineering, underground engineering.

Product Specifications :
Max current: 24A
Max voltage: 450V
Working temperature: -40° C - 110° C
Size: Approx. 75x25mm (L*D)

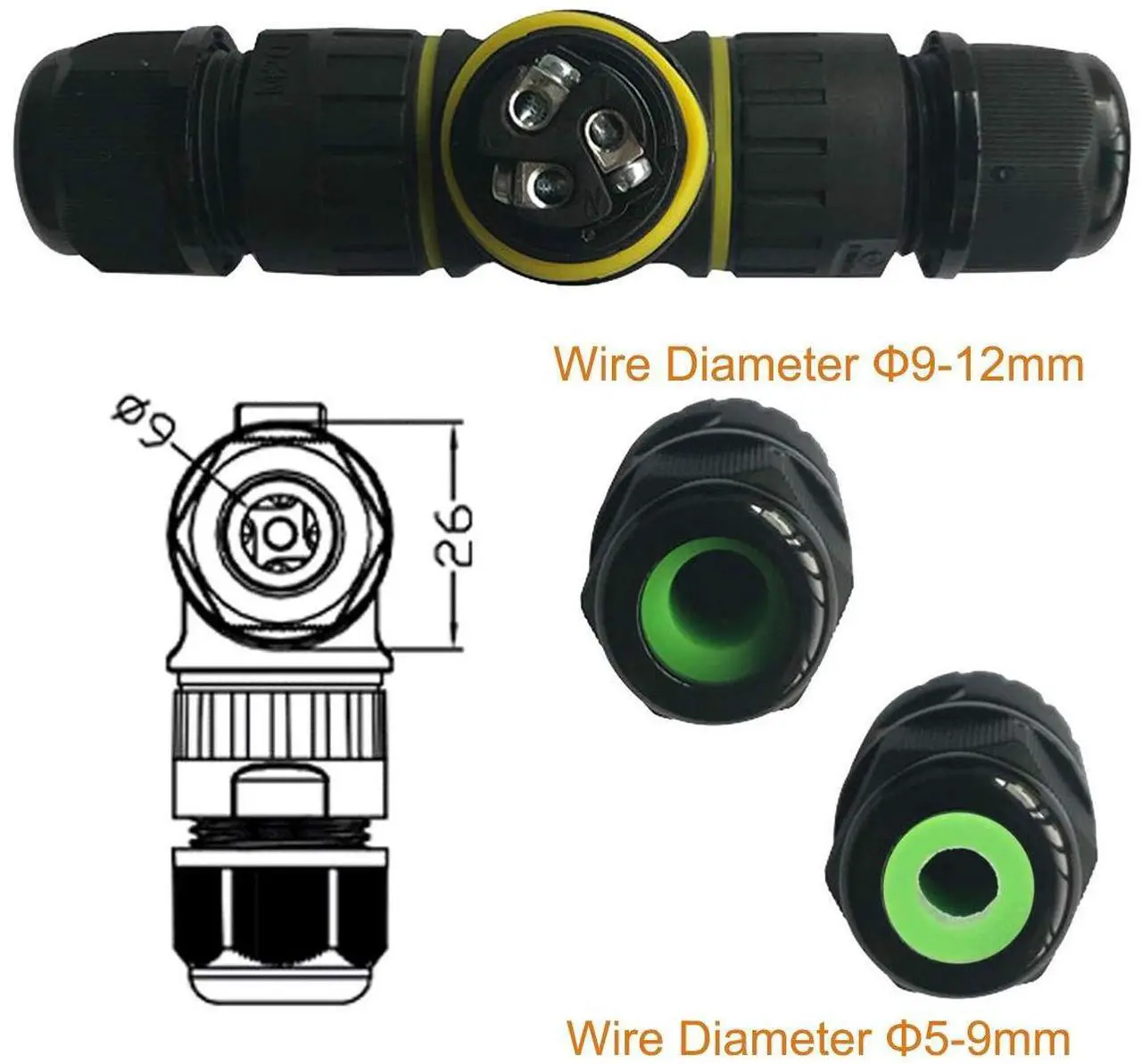

Apply to wire diameter:Ø0.5-2.5 mm²(AWG24-13) Suit for power cable diameter 5-12mm Wire stripping length:4-8mm
Cable Connector Type: Screw Fixed
Certification:CE,TUV
Material: body-nylon PA66; contact-brass;sealing element-silicon .
Application:Widely used in solar panel system, outdoor LED lamp and electrical wire connecting.
Protector Level: IP68(Recommend to immerse it in water within 2meters)

Package Content :

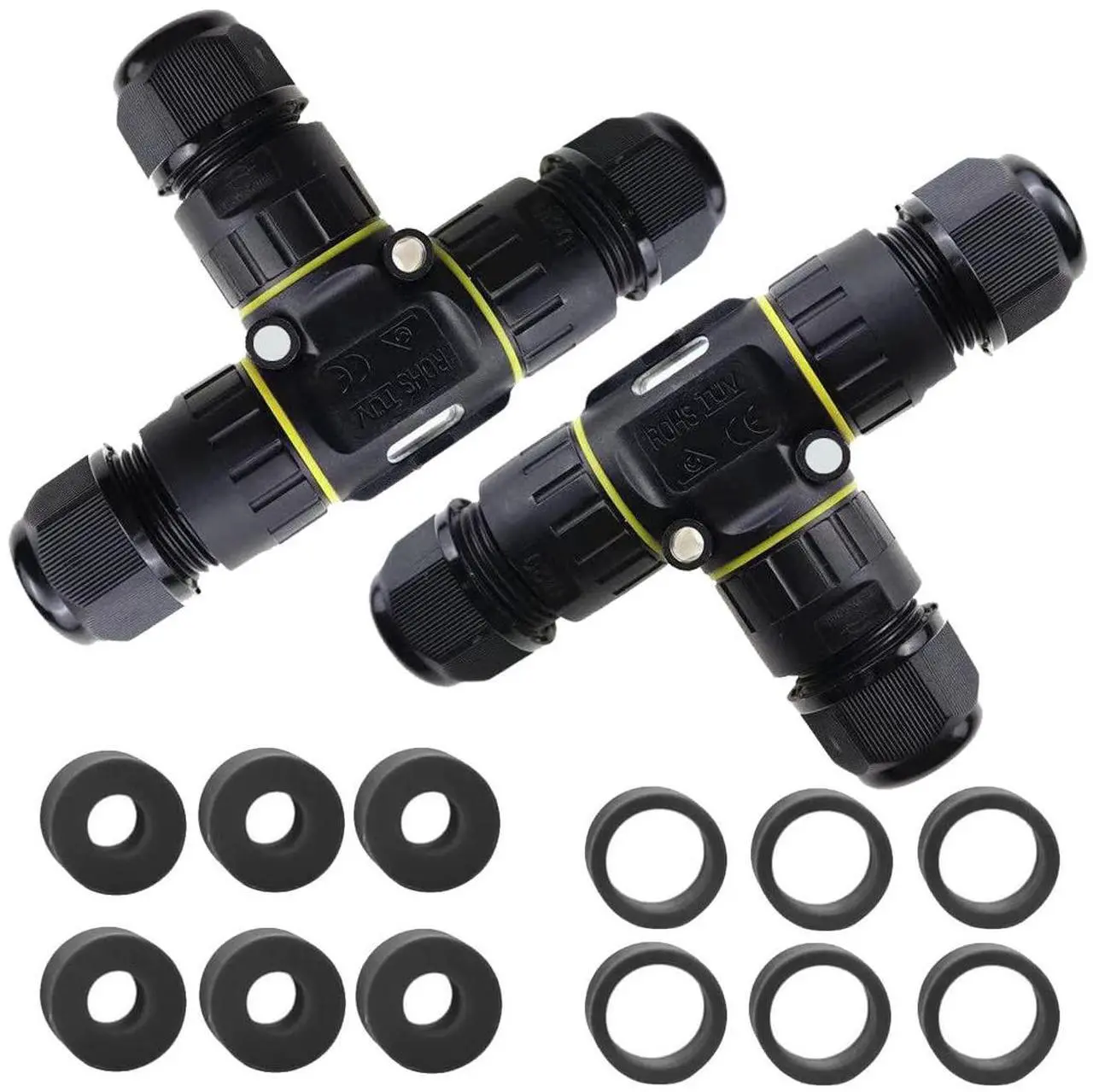

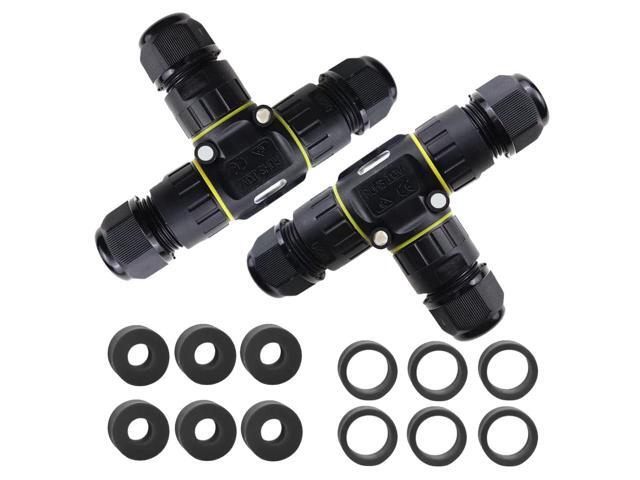

2 PACK ATB-M20-TTS3 Waterproof cable connector Package Weight:132.2g/0.29lb/4.7oz Package Size:L178xW110xH24.6mm(L7.0xW4.3xH0.97inch)
