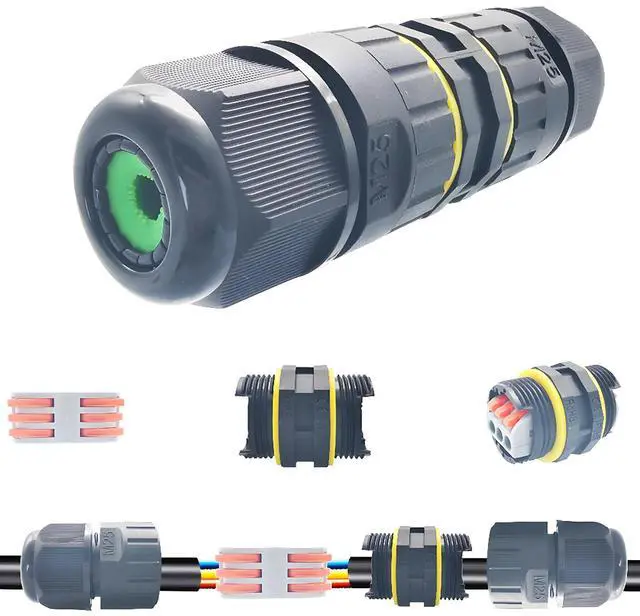

Junction Box Outdoor Waterproof IP68 3 - Way Line M25 Cable Connector Black (1 Pcs Junction Box, 1 Pcs Quick Connection Terminal)
The weatherproof junction box cable plug is safe for home, garden or exterior lighting. Use it to repair and extend power cables. It is safe enough to repair and extend electrical wires. Suitable for quick connection to outdoor lighting and external wiring. IP68-rated weatherproof coupler to connect two 2pin/3pin cord wire cables together, ideal for harsh industrial or outdoor environments.
How to install?
First:Unscrew the caps on both ends.Prepare the wire,Strip the wire sheath to 7-8mm
Second:Thread the thread into the cover.Push the orange lever to 90°,insert a wire.
Third:Press the orange operating handle make sure there is no looseness
![the [ unused0 ]'s tool for the [ unused0 ]](http://c1.neweggimages.com/sellingpilot/modules/product/a-plus/744fa99b0d4d50df4aff6acc593fdd52bd0aa9067c9d96dd07034a2e8c13223e.jpg)
Fourth:After the wiring is completed screw the cap in place to achieve the water proof effect.
Product Features:

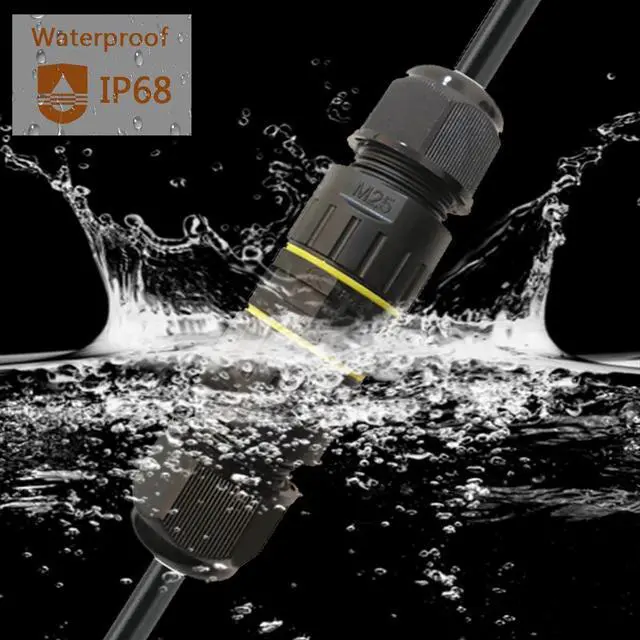

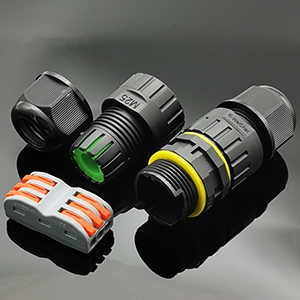

High quality PC casing, silicone sealing ring, nylon elastic wiring port.The waterproof rating is updated to IP68; Fireproof, dustproof and impact resistant, It can be used in the sun or rain.
Installation is easy and quick, which can save a lot of time and ensure a firm connection. The cable connector can be installed anywhere, it is more convenient, you will fully protect the cable.
Suitable for cable outer dimaeter:6-11mm
Compact wire connectors is suitable for various strands of cables: Hard wire 0.08-4mm²/AGW28-12; Soft wire 0.08-2.5mm²/AWG28-14
The junction boxes Suitable for kinds of LED billboards, LED tunnel lights, LED Road landscape lighting, LED outdoor display, LED garden lights.Further applications in coastal, river, sea or underwater engineering, underground engineeri
- Applicable core: 2/3 core
- Material: plastic + metal
- Product size: 11*3cm
- Rated voltage: 450V
- Rated current: 16A
- Rated power: 5.85KW
- Working temperature: -40-95 °C / -40-203 °F
- Waterproof rating: IP68
- Precautions:
- 1. When using this product, please use it within the rated voltage, current and power range.
- 2. During the wiring process, the fire wire, ground wire and neutral wire must correspond to the corresponding wiring holes.
- 3. After the wiring is completed, the lock nut must be tightened in place to achieve the waterproof effect.

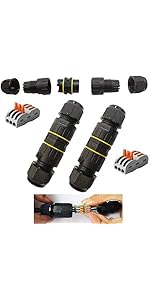

 CESFONJER Junction Box Outdoor Waterproof IP68 3 - Way Line M25 Cable Connect... |  CESFONJER Junction Box Outdoor Waterproof IP68 3 - Way Line M25 Cable Connect... |  CESFONJER Cable Connectors IP68, M25 Waterproof Junction Box Outdoor, 2/3 - W... |  CESFONJER Cable Connectors IP68, 6 Pcs M25 Waterproof Junction Box, Extension... |  CESFONJER Waterproof Junction Box, M25 Cable Connectors IP68, Power Cord Exte... |  CESFONJER Waterproof Junction Box, 10 Pcs Cable Connectors IP68, Power Cord E... | |
|---|---|---|---|---|---|---|
