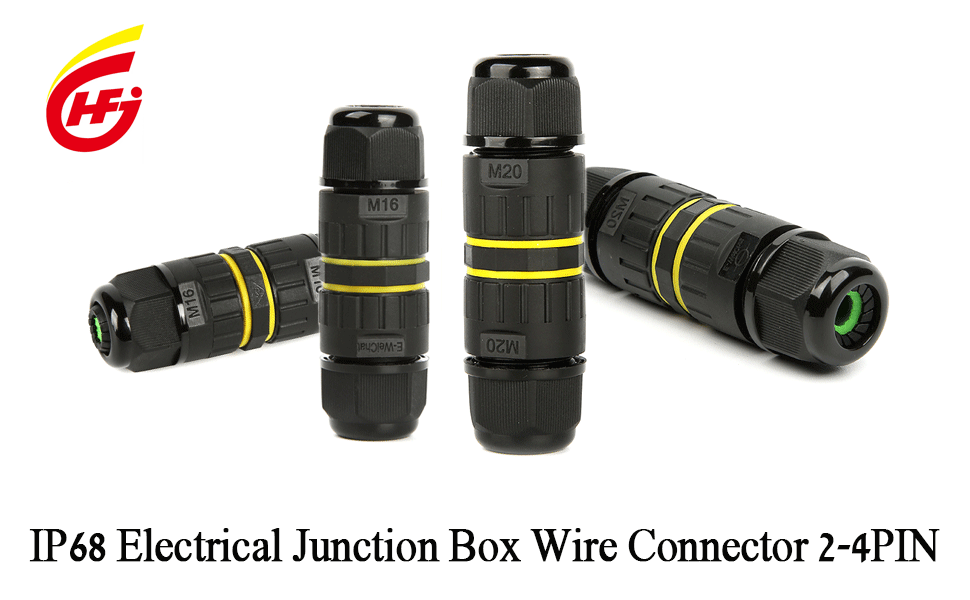

HFJY Junction box Electrical Cable Connector IP68 Waterproof
The electrical junction box can be used in outdoor, indoor, underwater, underground and other places. It is used to repair and connect power cables. It is a very safe wire connector.
Technical Specifications
Products name : Waterproof outdoor

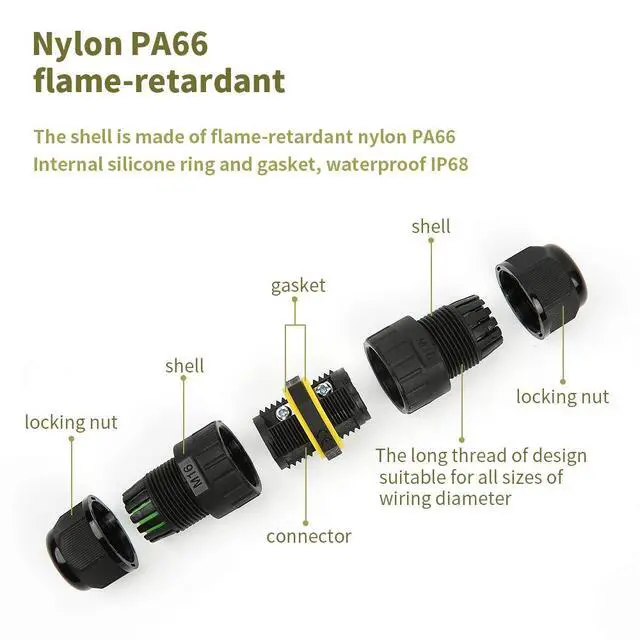

junction box Material : Nylon PA66 flame-ratardant,Silica-gel Rubber ring
Connect Type: M16/20 2-4pin
Waterproof level : IP68

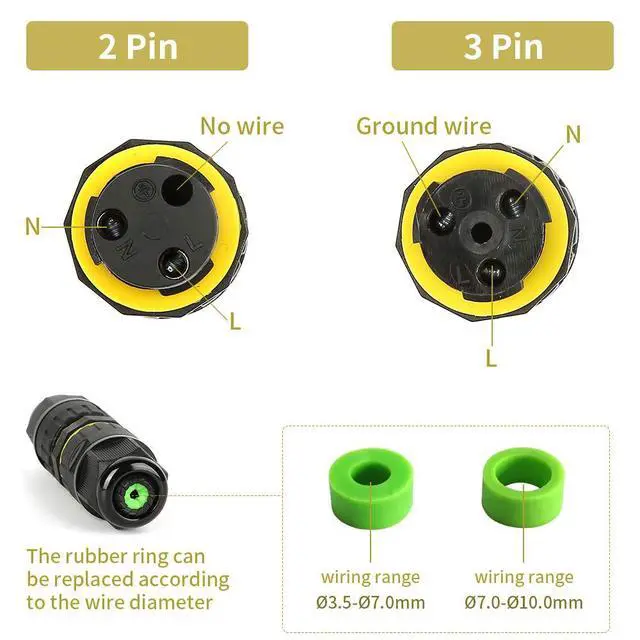

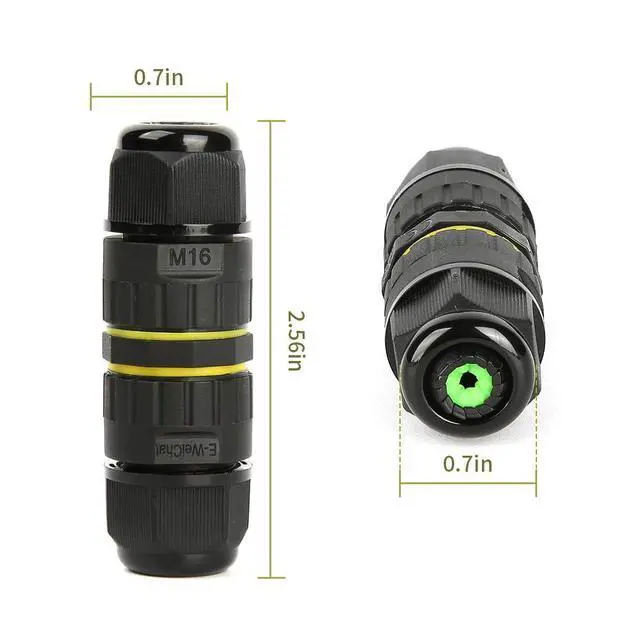

Wire range : Ø3.5-7mm/7-10mm ,suit for most usually power cord
Rated voltage: = 400v
Rated current: =17.5A
Working Temperature: -40 - 105 ?

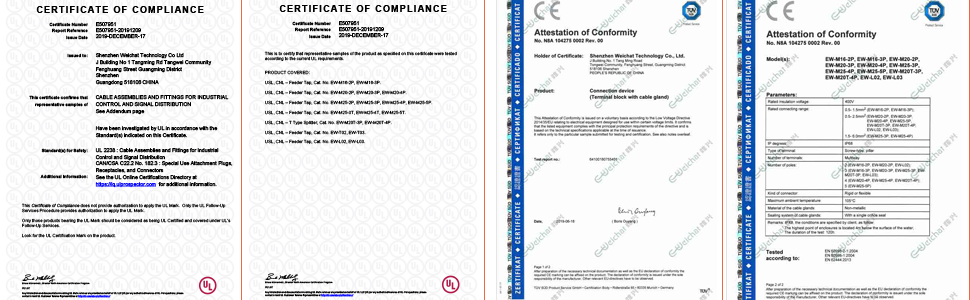

Certification: UL TUV SAA CE ROSH
Packing

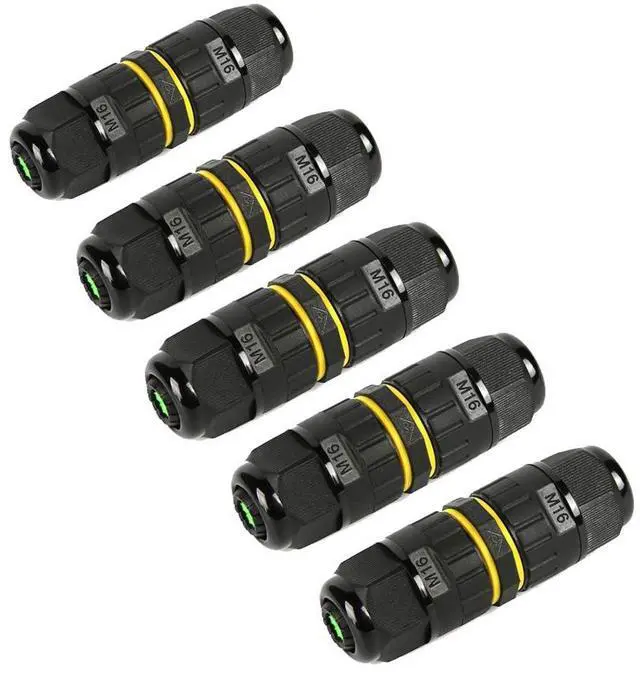

- 5*junction box junction box (inside 3.5-7/9-12mm Rubber ring)
- 6 x Rubber ring (Extra size of replacement rubber ring)
- 5 x Screw
- Installation Instructions

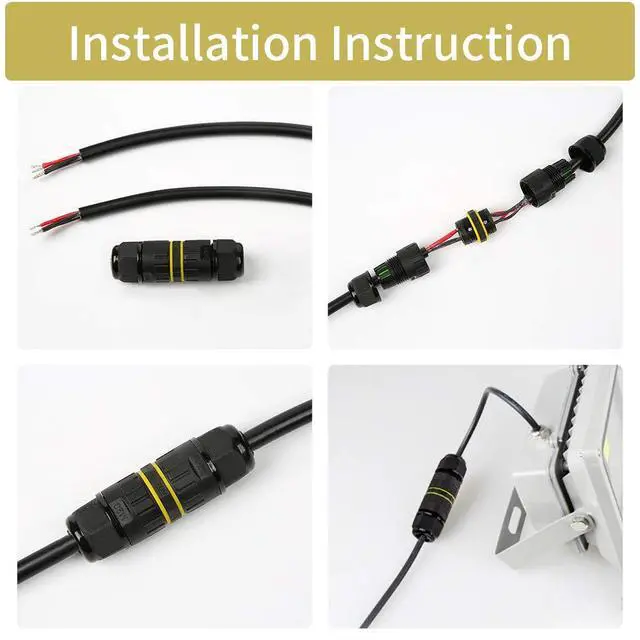

Very Easy to Install

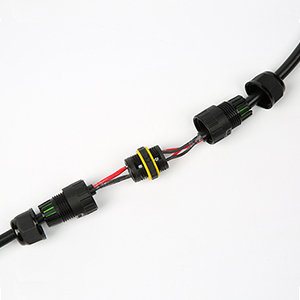

Unscrew the ends of waterproof connector, insert wire through directly, secure the cable in the right hole, and tighten it, all it takes just a screwdriver.
Warnings
After completion, please confirm again whether the screw has been tightened and the cable is completely sealed.
Please don't use the waterproof joint box when it is seriously damaged.

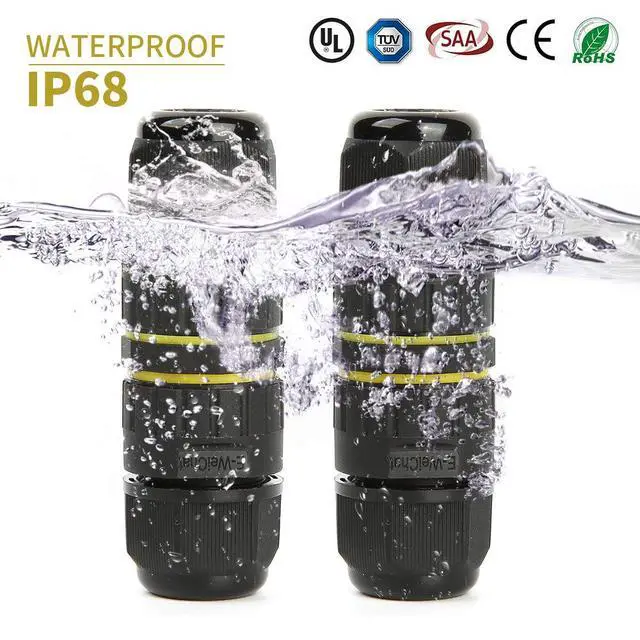

Waterproof
The junction box is a wire connector with good waterproof performance. The waterproof grade reaches IP68. It can be used within 3 meters underwater, but not more than 3.5 meters.
Heat-resistance
The wire connector can be safely used outdoors and can adapt to severe weather of outdoor high temperature
Fire-resistant
The junction box is made of flame-retardant material, which has a good flame-retardant effect. In case of a sudden fire, it will not be burned out in a short time and cause secondary disasters
Corrosion-resistance
The connector can be used underground and can resist the corrosive environment and humid environment in the soil. It is suitable for users who need to bury the connector underground and other humid environments
Complete certificates and guaranteed quality can be purchased and used with confidence

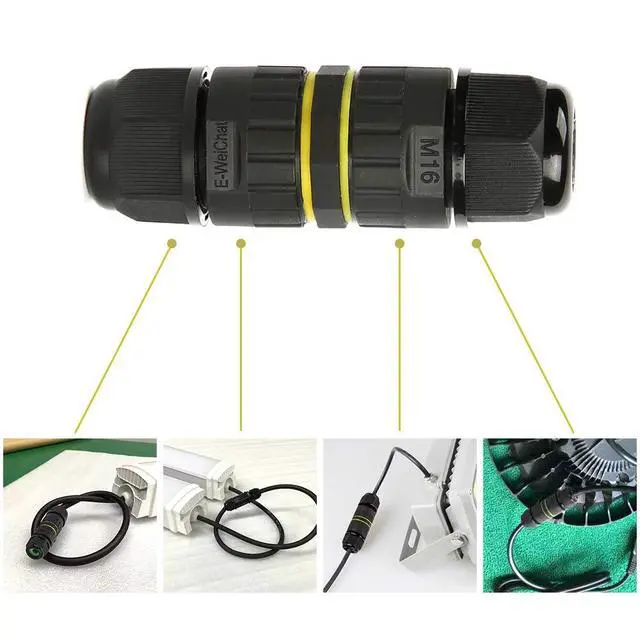

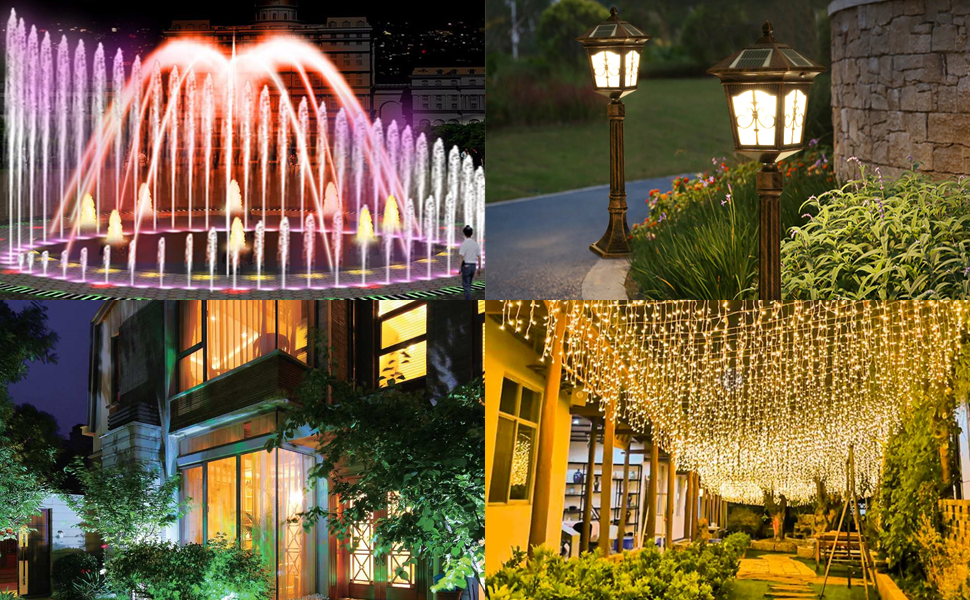

Waterproof junction box Suitable for quick connection of garden and outdoor display, floor heating, beacon, cruise ship, led billboard, led tunnel light, led street light, external wiring, etc.
Waterproof junction box is further used in coastal, river or underwater engineering, underground engineering, mining engineering, and various mechanical equipment.
Welcome to HFJY, thank you very much for opening our product introduction, we feel very honored.
Yes, here you will find the products you need. The product quality and after-sales service will not let you down. If you have any questions about the product before purchas, please tell me by email.
Enjoy your shopping.
LED Driver Waterproof IP67
Switch Power Not Waterproof
IP68 Outdoor Junction Box

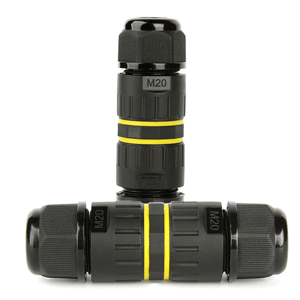

T-type junction box
