2 Pcs Waterproof Junction Box Ip68 Outdoor 3 Way Plug Line M25 Plastic Wire External Electrical Junction Box Outdoor Cable Connector for Diameter Cable 5-9mm, 9-12mm, 10-14mm
- Specifications of Junction Box: 1 in and 2 out, adapting four-position terminal blocks; Internal dimensions: 71 X 56 x 29.3 mm/ 2.79 x 2.2 x 1.15 inches (L x W x H); Terminal current: 40A; Terminal voltage: AC 450V; Available wire diameter: 5-9mm, 9-12mm, 10-14mm; Cable specifications: 0.5-6.0mm²; Waterproof protection level: iP68 (IPX8: 4M, 120H)
- Quantity and Quality: comes with 2 waterproof junction boxes, and equipped with 2 four-position terminal blocks, 8 nails, 18 waterproof rubber rings and 1 screwdriver; Our outdoor junction boxes are made of durable PA66 plastic, feature silicone sealing rings and have copper screw holes, resist cracking and fading under sunlight, and ensure a long service life
- Simple Installation: outdoor junction box waterproof is easy to install, just loosen the connector end, insert the wire, secure it with a screwdriver and tighten it; Compact and waterproof, it is suitable for tunnel lights, garden lights, landscape lights
- IP68 Waterproof Level: waterproof junction box 3 way is designed in IP68 level has nice waterproof performance, which could prevent dust and rain from the outside, even in severe rainy weather
- Scope of application: 3 way junction box IP68 is ideal for indoor and outdoor, perfect for various LED billboards, tunnel lights, road landscape lighting, garden lights and more, also can be widely applied in various machinery and equipment
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

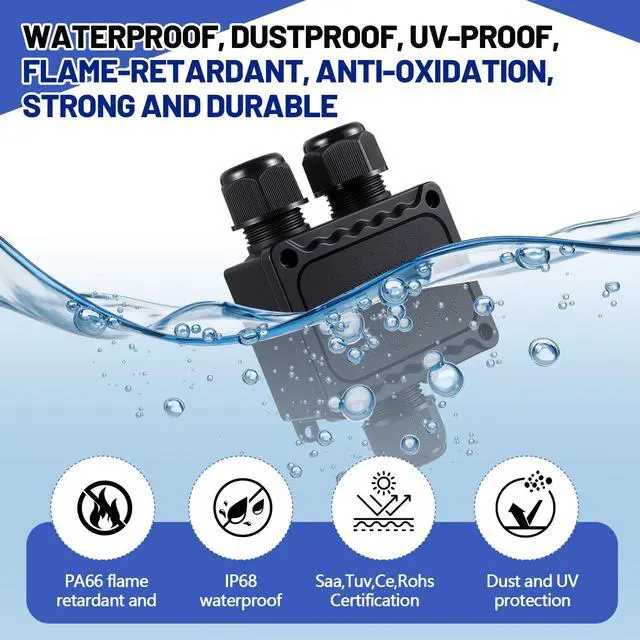

Wonderful waterproof performance
With high IP68 waterproof rating, this outdoor cable box is suitable for outdoor or humid environment, effectively prevent moisture and dust from entering, and ensure electrical safety.
Reliable electrical performance:
High current and voltage carrying capacity (40A, 450V), ensuring stable electrical connection and transmission.
Compact design:
Compact internal structure, save space, while providing sufficient wiring capacity, suitable for various electrical installation needs.
Specifications:

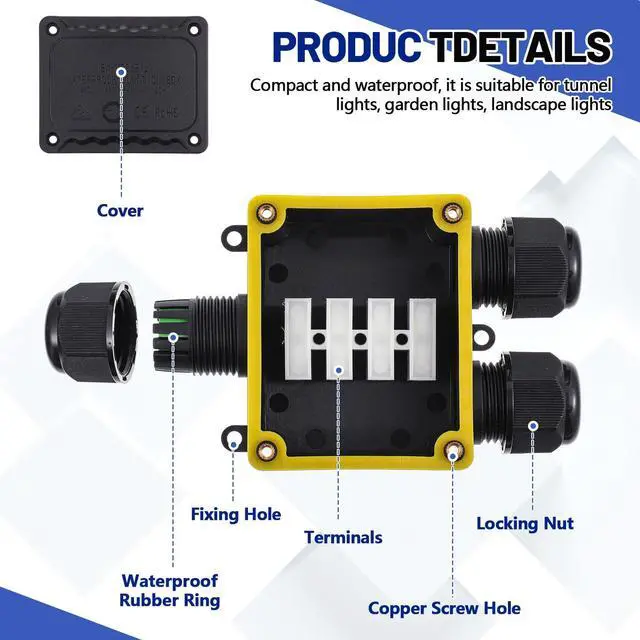

Material: PA66 plastic, silicone sealing rings, copper screw holes
Color: black
Size:

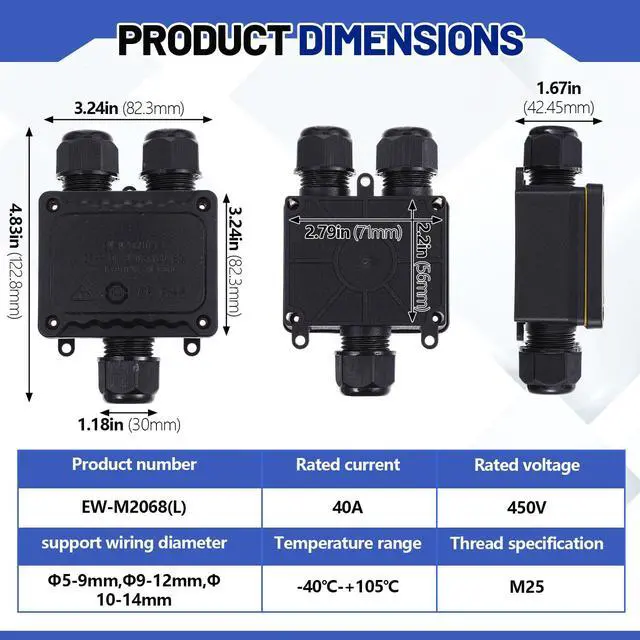

Internal dimensions: 71 X 56 x 29.3 mm/ 2.79 x 2.2 x 1.15 inches (L x W x H)
Terminal current: 40A
Terminal voltage: AC 450V

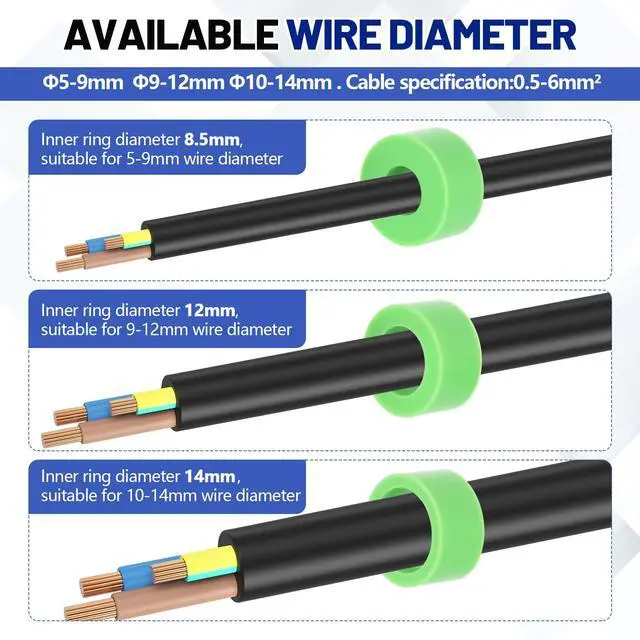

Available wire diameter: 5-9mm, 9-12mm, 10-14mm
Cable specifications: 0.5-6.0mm²

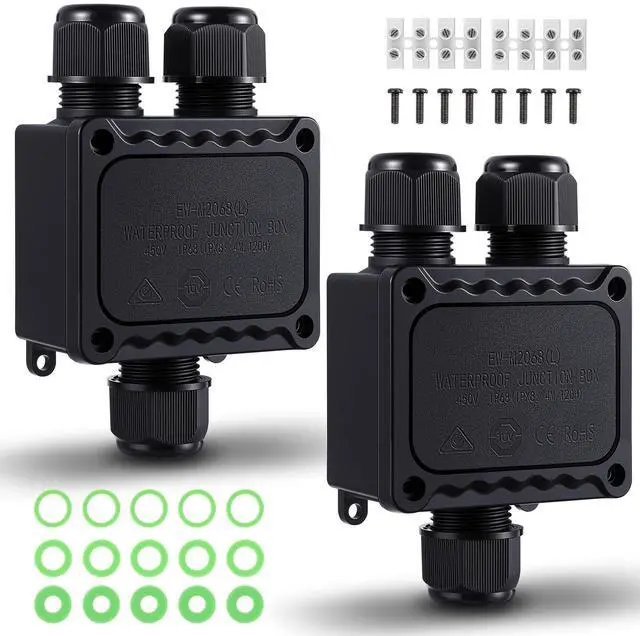

Package includes:
2 Sets of outdoor waterproof junction box
Notes:
Manual measurement, please allow slight errors on size.
The color may exist a slight difference due to different screen displays.
Prohibited to charge inserted.
Operating temperature: -40 to 221 Fahrenheit scale.
