IP68 waterproof junction box
Easy and quick to use, offers you full cable line protection.

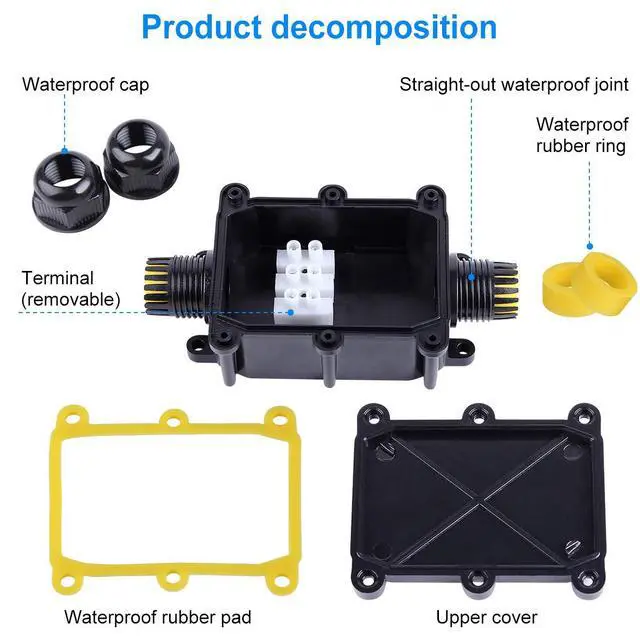

The junction box with 2 ways, and at both ends of the junction box 2 sealed sealing rings of different sizes of Ø5-9MM, Ø9-15MM are mounted, the application scope of the junction box is more extensive, so of course suitable for different wires. It is suitable for home, garden or farm is designed.

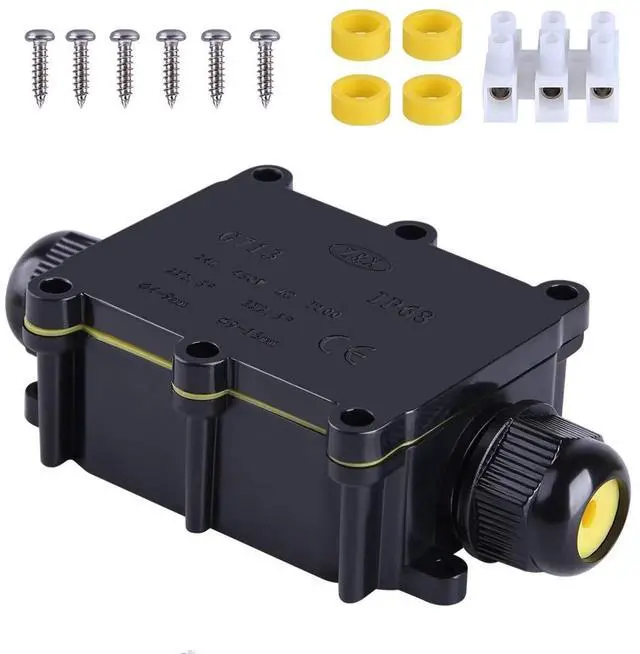

One in and one out and is delivered with a three-position terminal block. Terminal Block Current: 24A; Terminal Block Voltage: AC 450V. Supported wire diameter: imperial units 3/16" to 11/32", 11/32" to 15/32", 15/32" to 19/32" (Metric units 5~9mm/9~12mm/12~15mm)

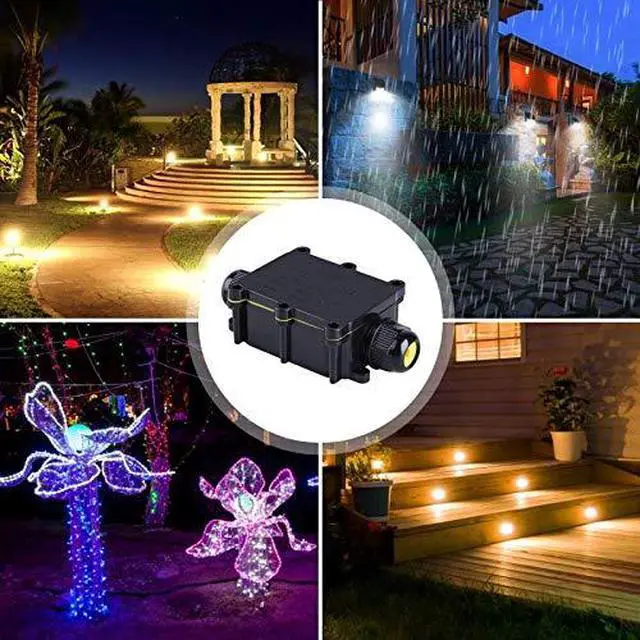

Use the junction boxes outside (garden lamps & motion detectors)
Suitable for electrical installations, outdoor wiring or cable repairs.
Use for distributors, fountains, cable boxes, electric cable connection boxes, underground cables, outdoor sockets, cable boxes, waterproof, fountains, garden sockets, sleeves, garden ponds, power extension cables, outdoor lig-hting, pumps, sockets, extensions, pond pumps, connectors etc.
Wide Usability
Junction box ip68 Ideal for connecting outdoor lamps and lighting. Outdoor wiring and cable repairs or extensions. It can be installed outdoors and indoors, such as various industrial areas.
High-quality materials allow for a tight fit. strong and has decent waterproofing characteristics.
The waterproof class is up to IP68, and it has fireproof, dustproof, anti-impact, .These features ensure that it could be used under the sun or in rainy days. IP68 for outdoor, indoor and underground applications, a long service life.
The 2-way junction box can be used for both the left side of the cable connection, and can also be used for the right side of the cable connection, only the direction of the can can be rotated. But please screw the can tightly, otherwise the water will leak out.
grade
1. Tighten the screws.
2. Lock the junction box, but not much force, otherwise the sealing ring will not be locked properly.
3. Do not stand in the water for a long time, little water drop because of the long rain inside, but will not affect the internal structure.
4. Install O-ring correctly.
