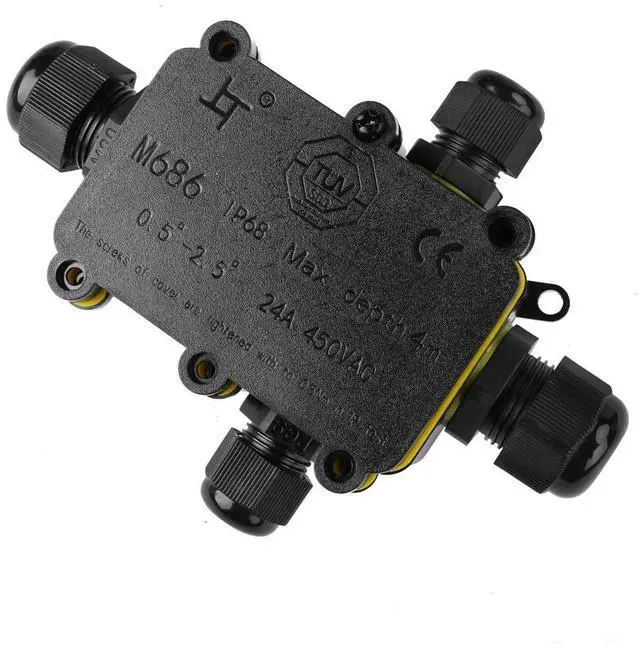

4 Way Electrical Junction Box, La Vane IP68 Waterproof 4 Way Cable Connector Lighting Connector Electric External Coupler, Cable Gland Ø 5-12mm
- ✔ 4 WAY JUNCTION BOX - 4 Way junction box, 2 pcs 3 pole screw fix terminal inside, cable connector gland available for cable diameter 5mm-12mm;
- ✔ FIRST-GRADE MATERIAL - Made of ABS + PVC, compression and temperature resistance, TUV, VDE and CE approved, curved sawtooth design, more solid, and outside lugs for screws so easy to fix to wall, no worry aboot water input;

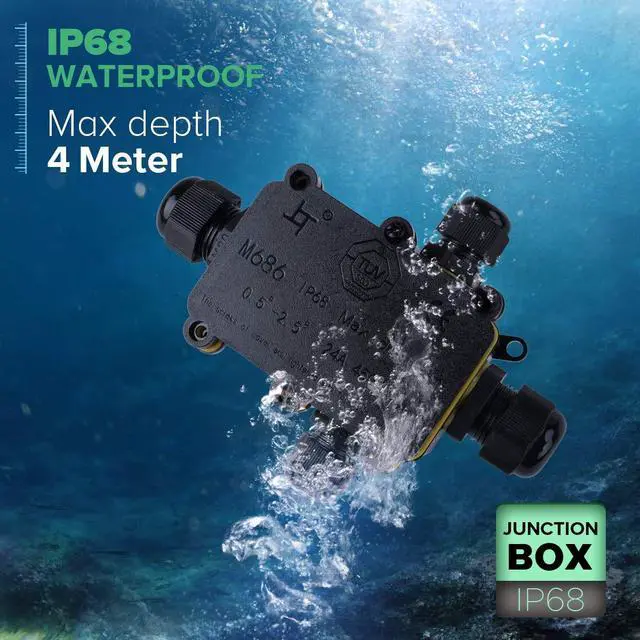

- ✔ IP68 WATERPROOF - Professional waterproof design, the grade of the waterproof is up to IP68, and it has fireproofing function, dust-proof function, anti impact function, these functions make sure it could be used under the sun or in rainy days;
- ✔ LARGER INNER SPACE - Junction box inside size: 78*50*35mm, inside is loose enabling more fiddling about with unwieldy armoured cable, and using larger connector boxes to make easier;

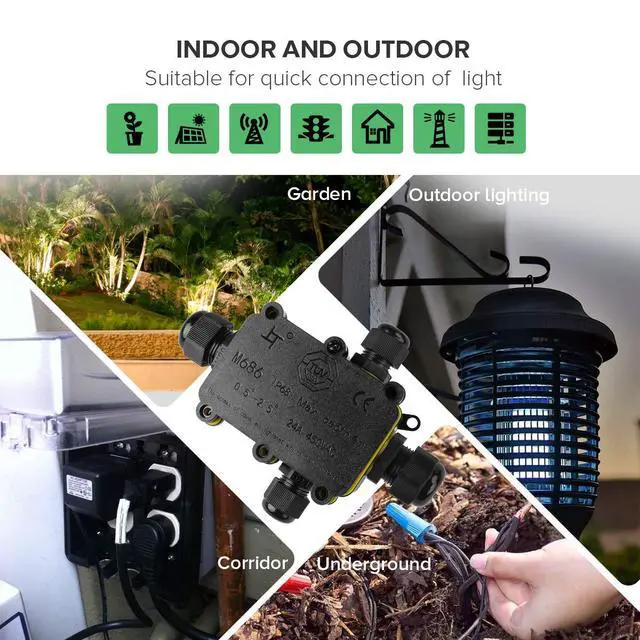

- ✔ MULTIFUNCTIONAL APPLICATION - Suitable for quick connection of indoor and outdoor lighting, external wiring, extension and connection cable or tidy up the wire, great safe for your home, garden, farm or construction plant. It is also applicable to the outdoor lamps and lanterns connection;
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specification
- Material: ABS + PVC;
- Connector Cable Diameter Range: 5-9mm / 9-12mm;

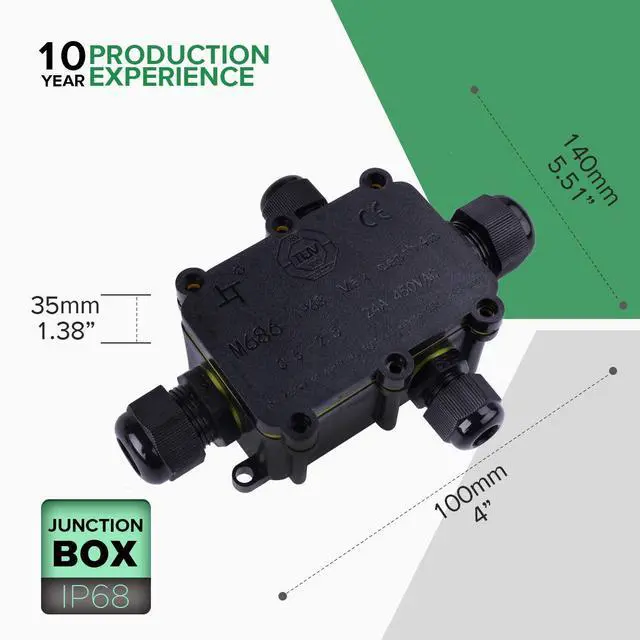

- Size: 100*140*50mm;
- Rated Voltage: AC 450V;
- Rated Current: 24A;
- Waterproof Rating: IP68;
Note
- 1. Use appropriate tools to avoid damaging the material of the article;
- 2. Please use the correct seals for the cable diameters for the cable entries;
- 3. Strongly recommend against penetrating moisture to grease all seals! This additionally facilitates, inter alia, Also the introduction of the cables (coats);
- 4. After the ladder is secured and before final storage, please check ALL the screw connections and tighten them if necessary;
Application
- 1. Suitable for LED billboards, LED tunnel lights, LED Road landscape lighting, LED outdoor display, LED garden lights, garden spike light ect.;
- 2. Further applications in coastal, river, sea or underwater engineering, underground engineering, mining engineering, solar-wind power, solar water heaters, various machinery and equipment;
Package Included
- 1x Junction Box
- 2x 3-Terminal Group
- 2x 5-9mm Waterproof Rubber Ring
- 4x 9-12mm Waterproof Rubber Ring
- 1x Set of Screws
