NEMA Metal Case, 8x8x6'' NEMA 4X Metal Electric Enclosure, IP66 Water & Dust Resistant, Suitable for Both Outdoor & Indoor Electrical Connections
- Specifications
- Model: SPT
- Color: Gray White(RAL7035)

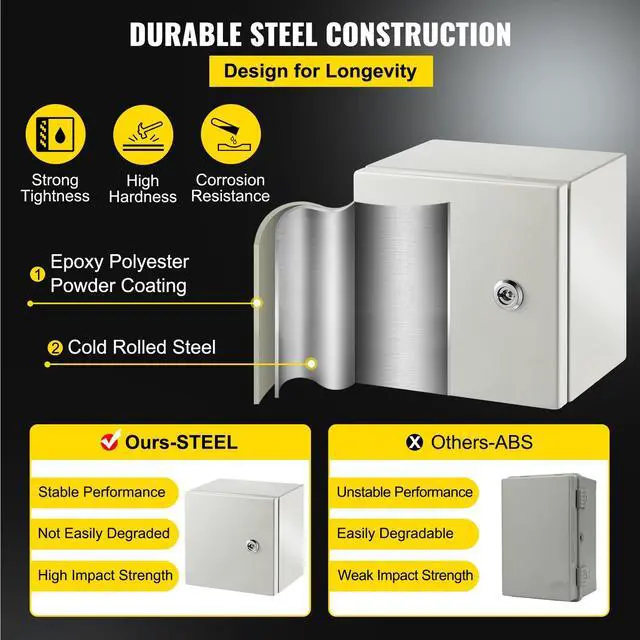

- Material: 0.059'' / 1.5 mm Carbon Steel
- Coating: Epoxy Polyester Powder Coating
- Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate
- IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
- Connection Type: Hinged
- Feature: Lockable, Waterproof
- Galvanized Backplate Dimensions: 6" x 6" / 15 x 15 cm
- Outer Dimensions (H x W x D): 8'' x 8'' x 6'' / 20 x 20 x 15 cm
- Inner Dimensions (H x W x D): 7.8'' x 7.8'' x 4.6'' / 19.7 x 19.7 x 11.65 cm
- Product Weight: 7.72 lbs / 3.5 kg
- Certification: CE / ROHS Certification

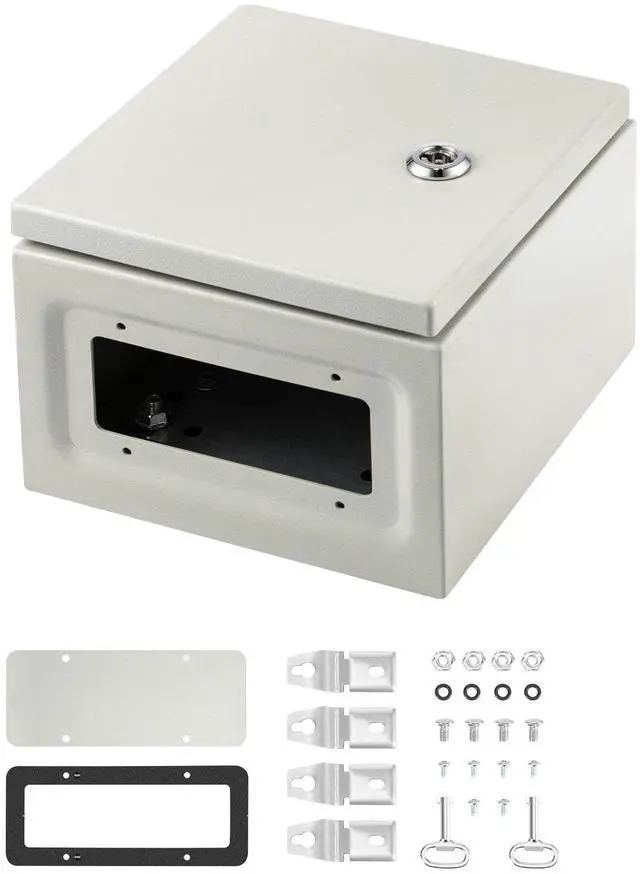

- Package Content
- 1 x Electrical Box
- 2 x Keys
- 1 x Mounting Plate(The mounting plate has been assembled in the box)

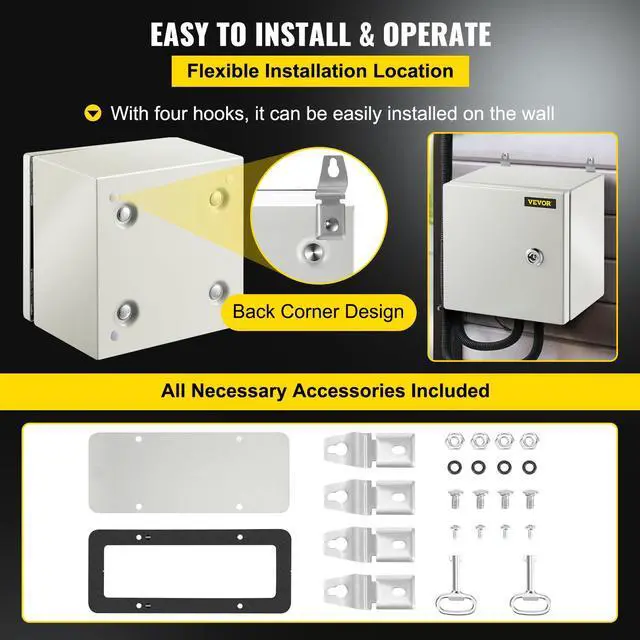

- 1 x Set of Wall Mounting Pendants
- 1 x Bottom Sealing Plate
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Model: SPT
Color: Gray White (RAL7035)
Material: 0.059 '' / 1.5 mm Carbon Steel
Coating: Epoxy Polyester Powder Coating
Mounting Plate: 0.079 '' / 2 mm Detachable Galvanized Backplate
IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
Connection Type: Hinged
Feature: Lockable, Waterproof
Galvanized Backplate Dimensions: 6" x 6" / 15 x 15 cm
Outer Dimensions (H x W x D): 8'' x 8'' x 6'' / 20 x 20 x 15 cm
Inner Dimensions (H x W x D): 7.8 '' x 7.8 '' x 4.6 '' / 19.7 x 19.7 x 11.65 cm
Product Weight: 7.72 lbs / 3.5 kg
Certification: CE / ROHS Certification
Package Content
1 x Electrical Box
2 x Keys
1 x Mounting Plate (The mounting plate has been assembled in the box)
1 x Set of Wall Mounting Pendants
1 x Bottom Sealing Plate
