NEMA Steel Enclosure, 12 x 10 x 6\'\' NEMA 4X Steel Electrical Box, IP66 Waterproof & Dustproof, Outdoor/Indoor Electrical Junction Box, with Mounting Plate
- Specifications
- Model: SPT
- Color: Gray White(RAL7035)
- Material: 0.059'' / 1.5 mm Carbon Steel

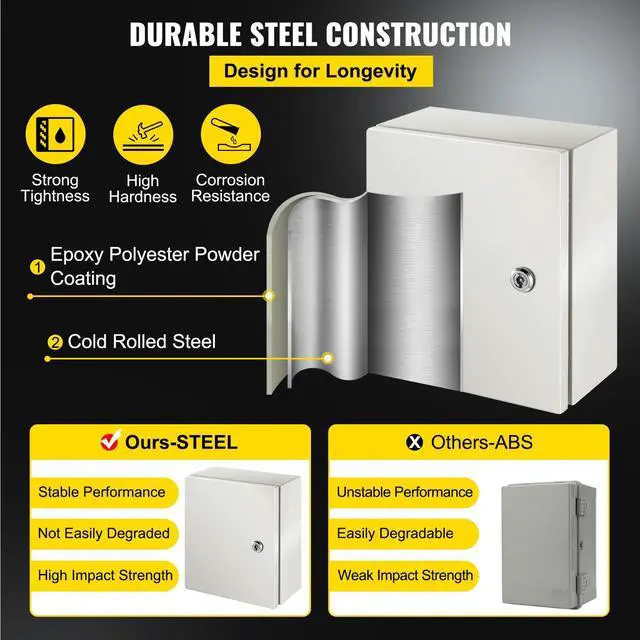

- Coating: Epoxy Polyester Powder Coating
- Mounting Plate: 0.079'' / 2 mm Detachable Galvanized Backplate

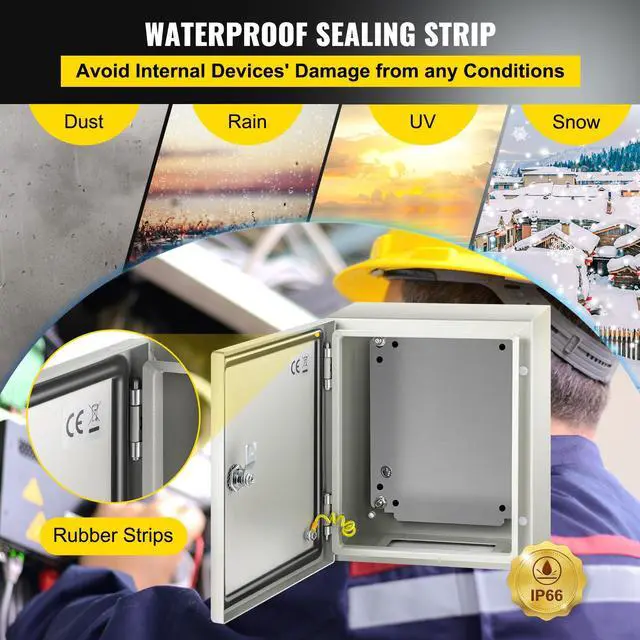

- IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications

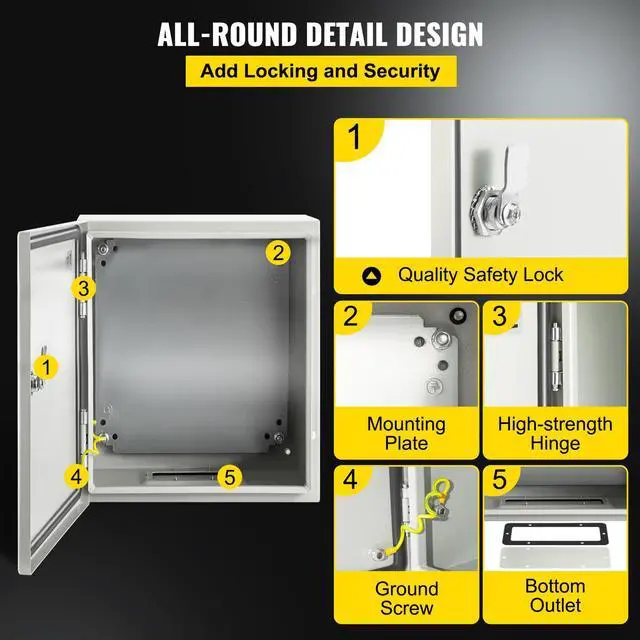

- Connection Type: Hinged
- Feature: Lockable, Waterproof
- Galvanized Backplate Dimensions: 9.8" x 7.9" / 25 x 20 cm

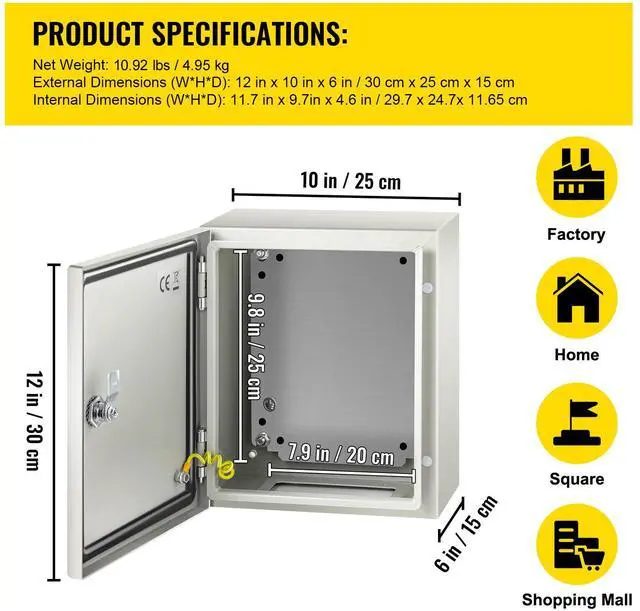

- Outer Dimensions (H x W x D): 12'' x 10'' x 6'' / 30 x 25 x 15 cm
- Inner Dimensions (H x W x D): 11.7'' x 9.7'' x 4.6'' / 29.7 x 24.7 x 11.65 cm
- Product Weight: 12.79 lbs / 5.8 kg
- Certification: CE / ROHS Certification
- Package Content
- 1 x Electrical Box
- 2 x Keys
- 1 x Mounting Plate (The mounting plate has been assembled in the box)

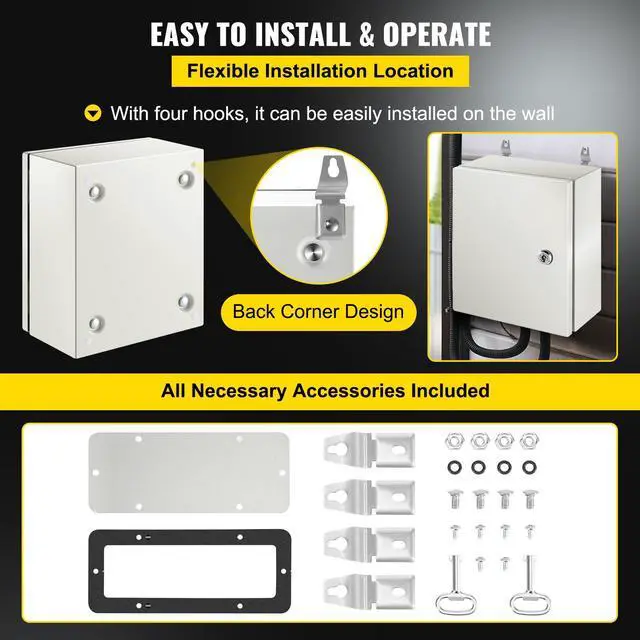

- 1 x Set of Wall Mounting Pendants
- 1 x Bottom Sealing Plate
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Specifications
Model: SPT
Color: Gray White (RAL7035)
Material: 0.059 '' / 1.5 mm Carbon Steel
Coating: Epoxy Polyester Powder Coating
Mounting Plate: 0.079 '' / 2 mm Detachable Galvanized Backplate
IP Rating: Designed to meet IP66 and NEMA 1, 2, 4, 4X, & 12 specifications
Connection Type: Hinged
Feature: Lockable, Waterproof
Galvanized Backplate Dimensions: 9.8" x 7.9" / 25 x 20 cm
Outer Dimensions (H x W x D): 12'' x 10'' x 6'' / 30 x 25 x 15 cm
Inner Dimensions (H x W x D): 11.7 '' x 9.7 '' x 4.6 '' / 29.7 x 24.7 x 11.65 cm
Product Weight: 12.79 lbs / 5.8 kg
Certification: CE / ROHS Certification
Package Content
1 x Electrical Box
2 x Keys
1 x Mounting Plate (The mounting plate has been assembled in the box)
1 x Set of Wall Mounting Pendants
1 x Bottom Sealing Plate
