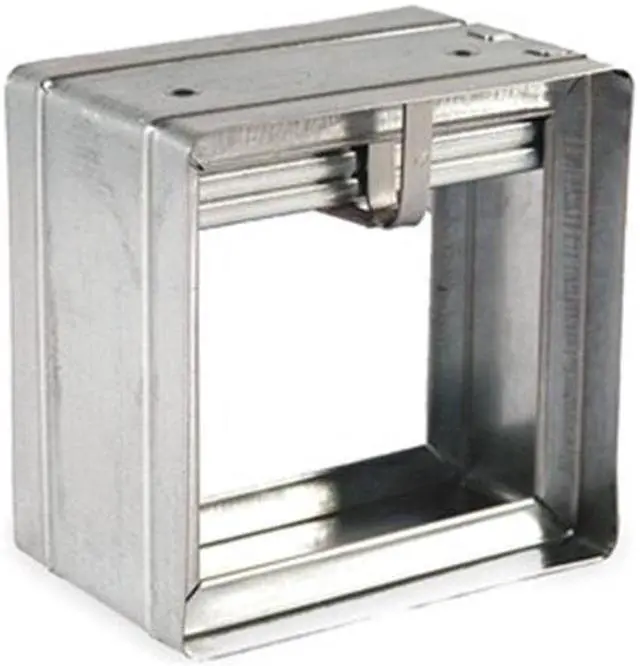

Square Fire Damper, 9-3/4 In. W

Fire Damper, Square, Mounting Type Static, VerticalNominal Duct Width 10 In., Nominal Duct Height 10 In., Damper Depth 3-11/16 In., Recommended Retaining Angle 2TGG7, Material 22 ga. Galvanized SteelDamper Height 9-3/4 In., Damper Width 9-3/4 In., Fire Rated 1-1/2 hr., Free Area 0.422 sq. ft., Fusible Link 165 Degrees F, For Use With Low Pressure HVAC Systems, Standards UL Standard 555, NFPA 80, 90A and 101, IBC, CSFM, NYC MEA, Includes UL Fusible Link Life Safety DampersFire DampersStaticFor zero-pressure systems. Vertical-mount models close via gravity. Horizontal models have spring-assist closing.Accommodate airflow in either direction.Fire-resistance rating: 1-1/2 hr. Max. temp.: 165 F Curtain blade style NFPA 80 requires retaining anglesUL, NFPA, IBC, MEA, CSFM
