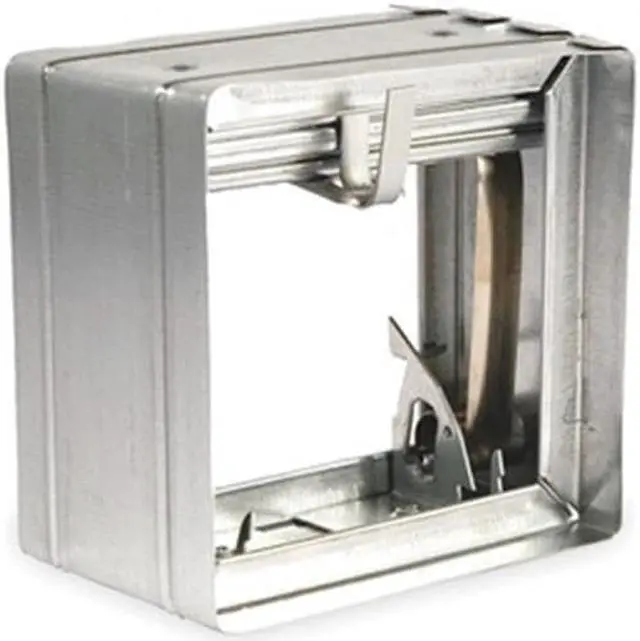

Main image of Square Fire Damper, 13-3/4 In. W

Alt view image 2 of 3 - Square Fire Damper, 13-3/4 In. W

Alt view image 3 of 3 - Square Fire Damper, 13-3/4 In. W

Shop All Dayton Products | Visit Zoro Store

Square Fire Damper, 13-3/4 In. W

Be the first to review this product...

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Fire Damper, Square, Mounting Type Dynamic, Vertical or HorizontalNominal Duct Width 14 In., Nominal Duct Height 14 In., Damper Depth 3-11/16 In., Recommended Retaining Angle 2TGH4, Material 22 ga. Galvanized SteelDamper Height 13-3/4 In., Damper Width 13-3/4 In., Fire Rated 1-1/2 hr., Free Area 0.925 sq. ft., Fusible Link 165 Degrees F, For Use With Low Pressure HVAC Systems, Standards UL Standard 555, NFPA 80, 90A and 101, IBC, CSFM, NYC MEA Life Safety DampersFire DampersDynamicSteel spring-assist closing.Accommodate airflow in either direction.Fire-resistance rating: 1-1/2 hr. Max. temp.: 165 F Curtain blade style NFPA 80 requires retaining anglesVelocity rating: 2,000 fpm Pressure rating: 4" wgUL, NFPA, IBC, MEA, CSFM
