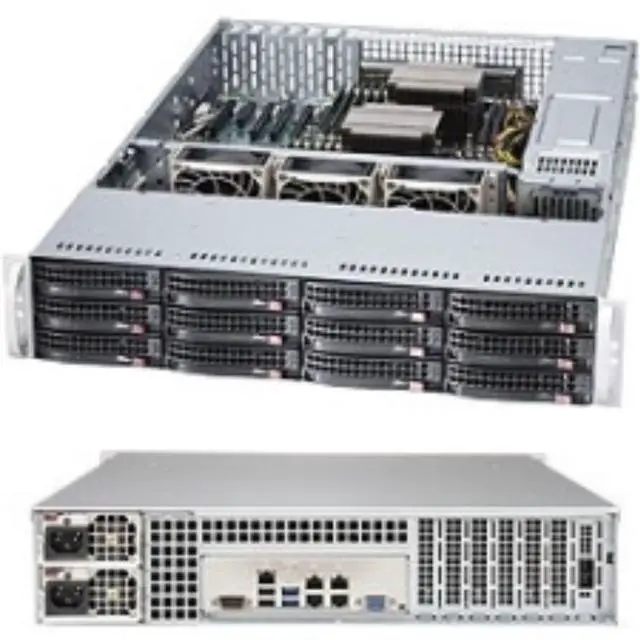

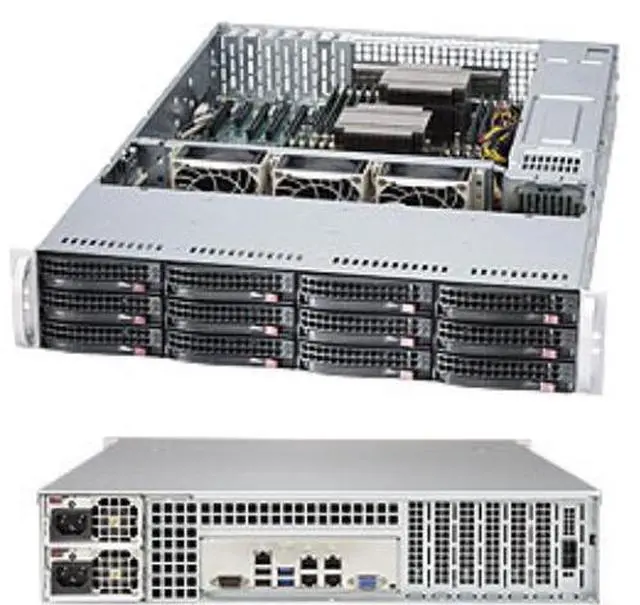

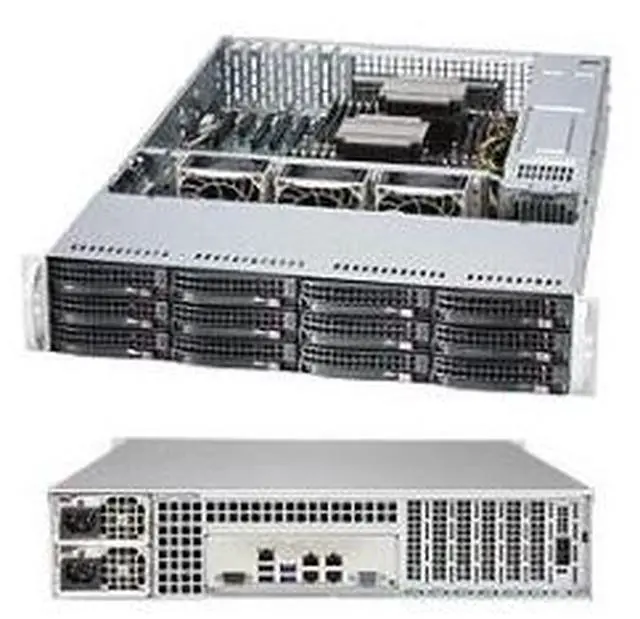

Supermicro SuperServer 6028R-E1CR12N
Used - Like New Product Type
+
+
Overview
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
SpecificationsMfr Part Number:
SSG-6028R-E1CR12NMotherboard: Super
X10DRi-T4+Processor: Dual LGA2011Support Intel Xeon E5-2600 v3 ProcessorsSupport up to 18 CoresCache up to 45 MBQPI up to 9.6 GT/sSupport up to 145W TDP
Chipset: Intel
C612 ExpressMemory: 24x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots; Supports up to 1.5TB ECC/Load Reduced Memory or up to 512GB
ECC/REG MemorySlots: 2x PCI-Express 3.0 x16 Slots, 3x PCI-Express 3.0 x8
SlotsSATA: SATA3 Support RAID 0, 1, 5, 10SAS: SAS3 via LSI 3108 AOC; HW
RAID
Video: ASPEED
AST2400 BMC GraphicsLAN: Quad Intel X540 10-Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
Drive Bays: 12x Hot-swap 3.5" SAS3/SATA3
HDD TraysBackplane: SAS3/SATA3
single expander per backplanePorts: 2x USB 3.0 Ports, 1x Type A USB Port, 2x Serial Ports (1 rear, 1 via header), 1x VGA Port, 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI
LAN PortForm Factor: 2U
RackmountPower Supply: 920W 80 PLUS Platinum Certified high-efficiency (94%+) AC-DC Re
SSG-6028R-E1CR12NMotherboard: Super
X10DRi-T4+Processor: Dual LGA2011Support Intel Xeon E5-2600 v3 ProcessorsSupport up to 18 CoresCache up to 45 MBQPI up to 9.6 GT/sSupport up to 145W TDP
Chipset: Intel
C612 ExpressMemory: 24x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots; Supports up to 1.5TB ECC/Load Reduced Memory or up to 512GB
ECC/REG MemorySlots: 2x PCI-Express 3.0 x16 Slots, 3x PCI-Express 3.0 x8
SlotsSATA: SATA3 Support RAID 0, 1, 5, 10SAS: SAS3 via LSI 3108 AOC; HW
RAID
Video: ASPEED
AST2400 BMC GraphicsLAN: Quad Intel X540 10-Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI)
Drive Bays: 12x Hot-swap 3.5" SAS3/SATA3
HDD TraysBackplane: SAS3/SATA3
single expander per backplanePorts: 2x USB 3.0 Ports, 1x Type A USB Port, 2x Serial Ports (1 rear, 1 via header), 1x VGA Port, 4x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI
LAN PortForm Factor: 2U
RackmountPower Supply: 920W 80 PLUS Platinum Certified high-efficiency (94%+) AC-DC Re
