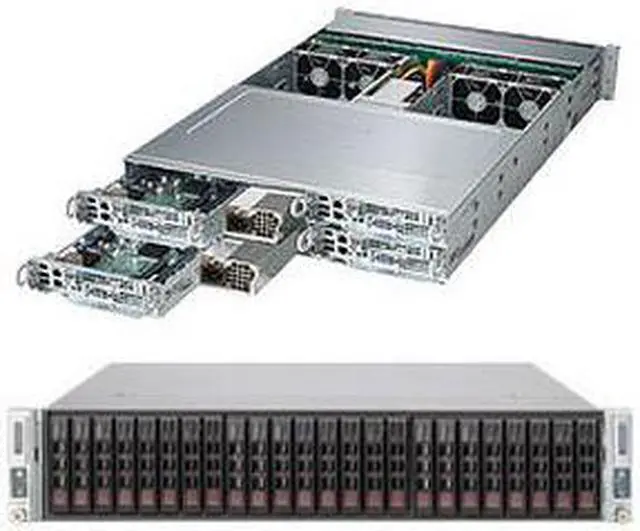

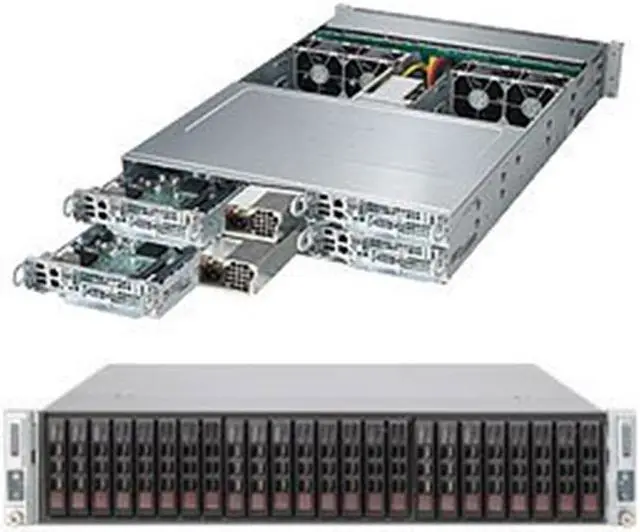

Supermicro SuperServer 2028TP-HC0R

SpecificationsMfr Part Number:
SYS-2028TP-HC0RMotherboard: Super X10DRT-PProcessors per
Node: Dual LGA2011Support Intel Xeon E5-2600 v3 Family ProcessorsSupport up to 145W TDP
Support up to 18 CoresCache up to 45MBQPI up to 9.6 GT/sChipset per
Node: Intel C612 ExpressMemory per
Node: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG MemorySlots per
Node: 1x PCI-Express 3.0 x16 Slot (Low-profile), 1x "0 slot" (x16)
SAS per Node: 6x SAS3 Ports, Support RAID 0, 1, 10Video per
Node: ASPEED AST2400 BMC GraphicsLAN per
Node: Intel i350-AM2 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8201N PHY (dedicated IPMI) Drive Bays per
Node: 6x 2.5" Hot-swap SAS/SATA HDD TraysPorts per
Node: 2x USB 3.0 Ports (2 rear), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI
LAN PortForm Factor: 2U
RackmountPower Supply: 2000W 80 PLUS Platinum Certified Redundant Power
