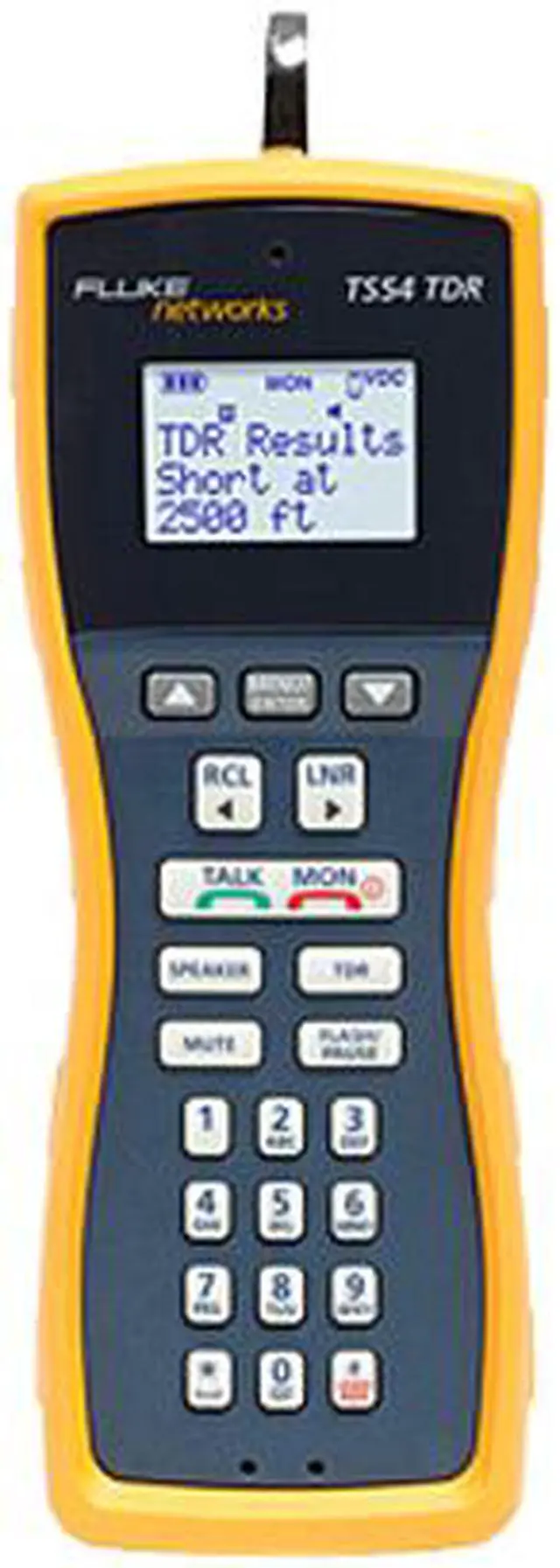

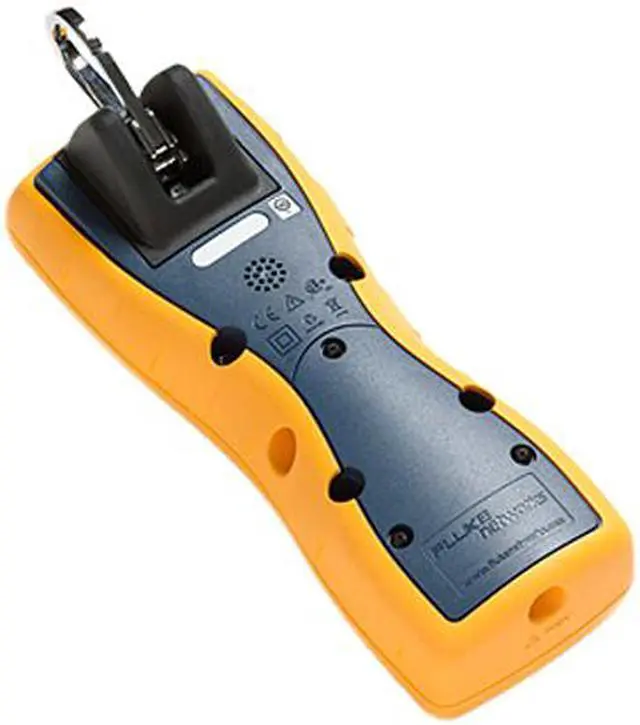

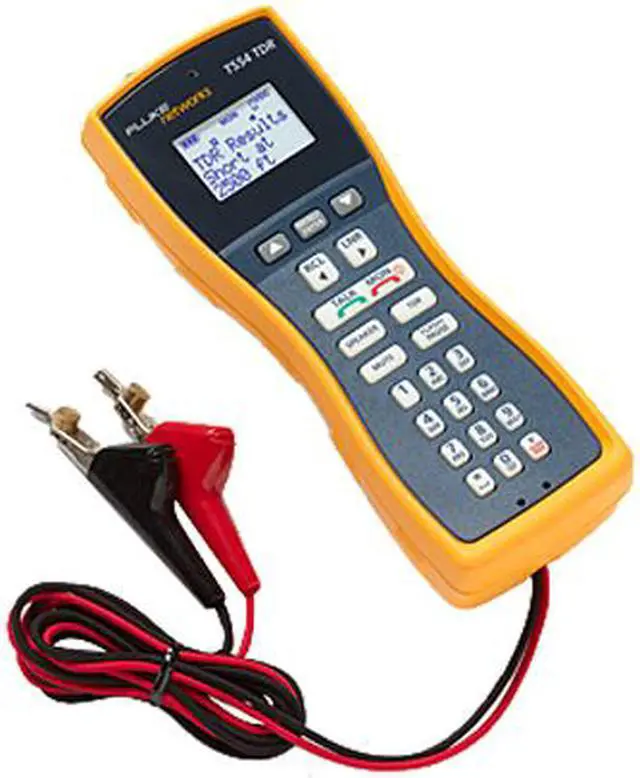

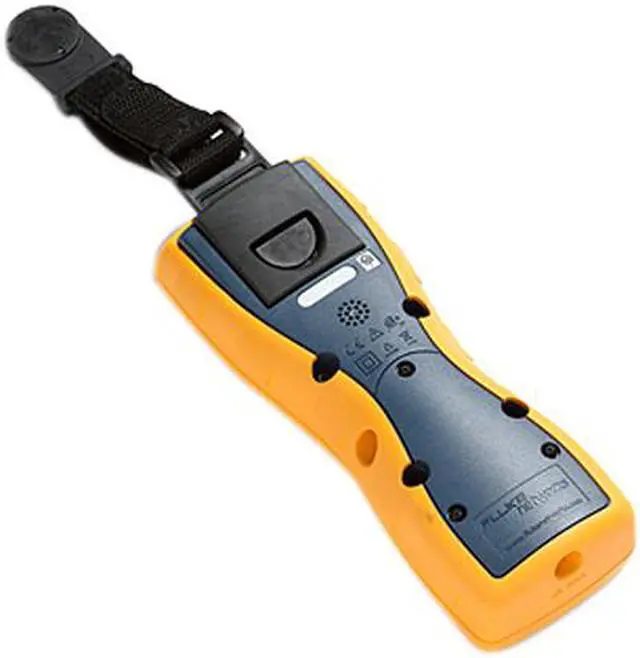

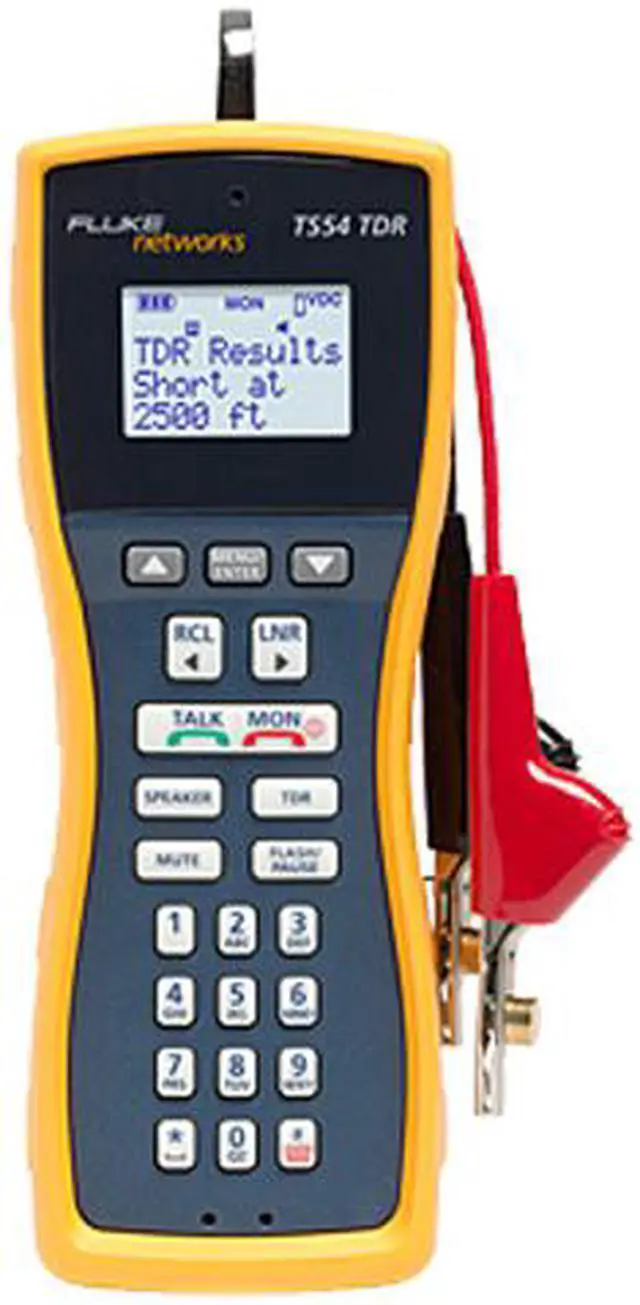

TS54 PRO LCD BUTTON TEST SET

Fluke Networks Test set is perfect for voice/data/video and communication service provider technicians and features caller ID with call waiting CID that verifies functional service.

Fluke Networks Test set features DTMF digit grabbing that isolates faulty customer premise equipment. Set has voltage indication/measurement that identifies potential line problems with data indication which warns when data is present on the line.

Display type: Extra-large, backlit LCD screen.
Two-way, hands-free speakerphone.
Current range: 10 - 100 mA.
AC impedance: Off-hook: 600 O nominal 300 - 3400 Hz, on-hook: greater-than120 kO, 300 - 3400 Hz, headset impedance: 32 ohm.
Pulsing rate: 10 pps +/- 1 pps, Break/make ratio: 60/40, Interdigit interval: greater-than300 ms, Resistance during break: greater-than100 kOhm.
Tone frequency error: +/- 1.5% maximum, Tone level: -3 dBm combined (typical), High versus low tone difference: 2 dB +/- 2 dB.
Memory capacity: 9 speed dial memories of 23 digits, plus one last number redial memory, PBX pause duration:-user programmable, default of 4 seconds, hook flash duration:user programmable, default of 500 ms.
Voltage range: 4 - 140 VDC.
Current range: 0 - 100 mA.
TDR range: 3000', Accuracy: +/-2 m, +/- 5 %.
Frequencies: Steady tone: 950 Hz, Alternating tones: 950 Hz and 1480 Hz.
Battery type: 9 V alkaline battery.
Dimensions: 8.3" x 3.2" x 2.6".
Detects dial tone, places and receives calls, polarity.
Compliant and standards: ANSI/ISA 82.02.01 (61010-1) 2004, CAN/ CSA-C22.2 No. 61010-1-04, UL 61010-1 (2004) and IEC 61010-1:2010.
Data indication warns when data is present on the line, voltage indication/measurement identifies potential line problems, caller-ID with call waiting verifies functional service, DTMF digit grabbing isolates faulty customer premise equipment.
Sold as 1 Each.
