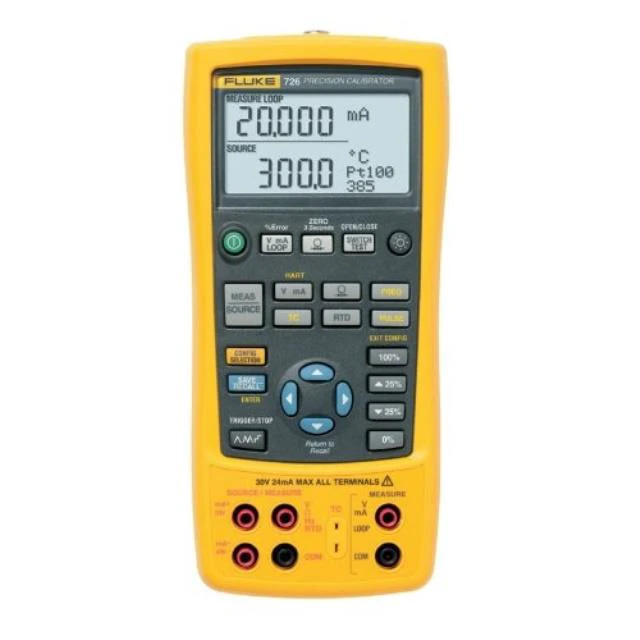

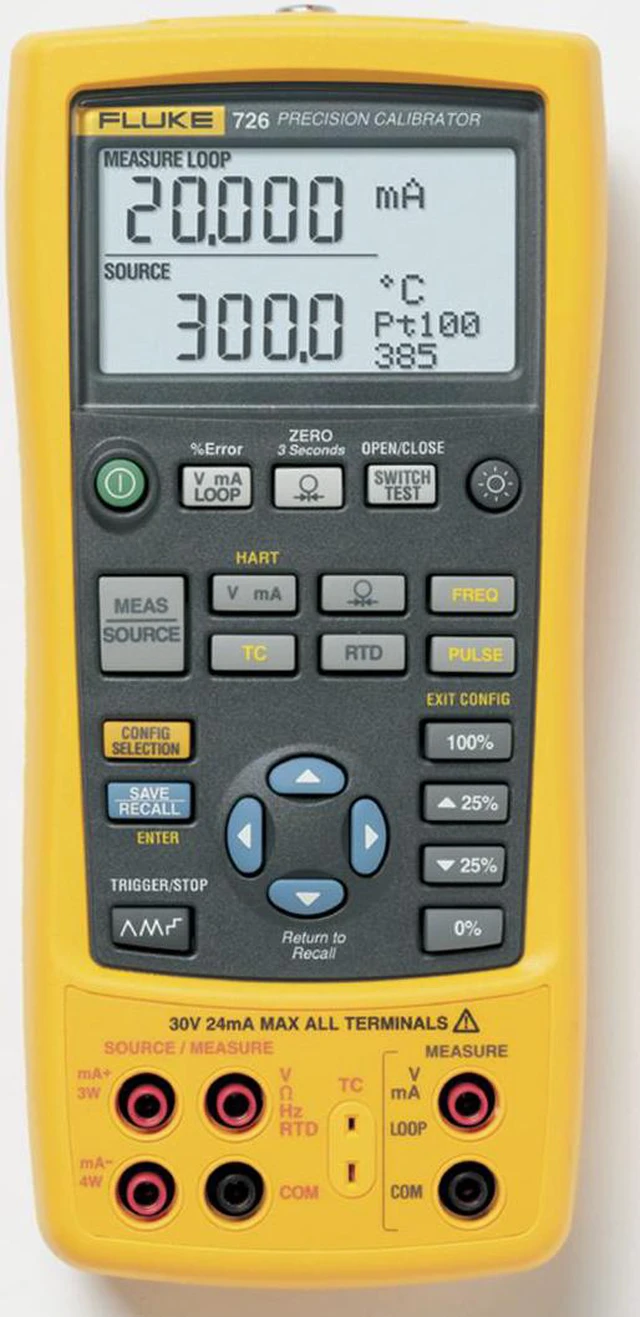

Fluke 726 Multifunction Precision Process Calibrator

FLUKE 726 - Precision Multifunction Process Calibrator More precise measurement and calibration source performance, accuracies of 0.01 %. Two separate channels; measure, source and view process signals simultaneously Measure volts, mA, RTDs, thermocouples, frequency, and resistance to test sensors and transmitters Source/simulate volts, mA, thermocouples, RTDs, frequency, ohms, and pressure to calibrate transmitters Measure/source pressure using any of 29 Fluke 700Pxx Pressure ModulesThe Fluke 726 Precision Multifunction Process Calibrator is designed specifically for the Process industry with broad workload coverage, calibration power and unsurpassed accuracy in mind.

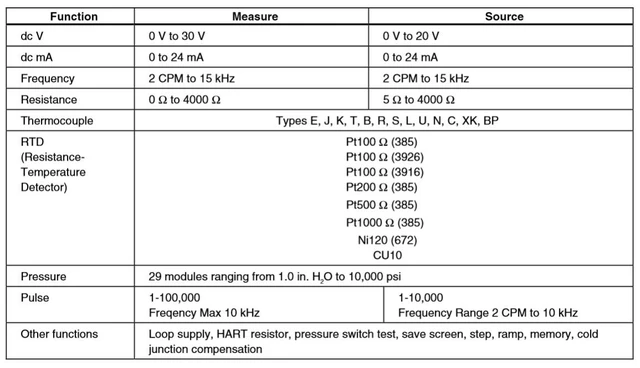

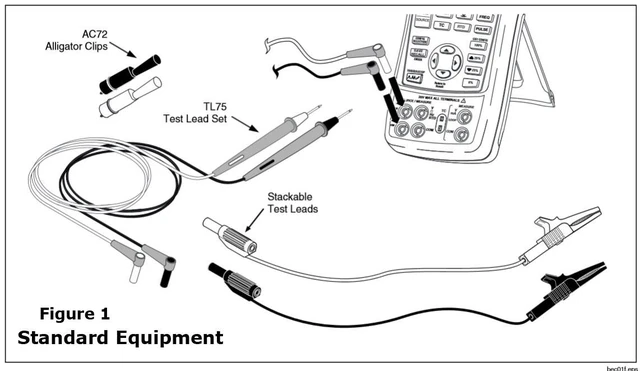

The 726 measures and sources almost all process parameters and can calibrate almost anything. The 726 will also interpret results without the help of a calculator and store measurement data for later analysis. The Fluke 726 Multifunction Process Calibrator (referred to as 'the Calibrator') is a handheld, battery-operated instrument that measures and sources electrical and physical parameters. See Table 1. In addition to the functions in Table 1, the Calibrator also has the following features and functions: A split-screen display. The upper display allows users to measure volts, current, and pressure only. The lower display allows the user to measure and source volts, current, pressure, resistance temperature detectors, thermocouples, frequency, and ohms. A thermocouple (TC) input/output terminal and internal isothermal block with automatic reference junction temperature compensation. Stores and recalls setups Manual and automatic stepping and ramping Stores and recalls calibration screens Control the Calibrator remotely from a PC running a terminal emulator programTable 1. Summary of Source and Measure FunctionThe items listed below and shown in Figure 1 are included with the Calibrator TL75 test leads AC
