Fluke 325 True RMS Clamp Meter True-rms 400A 600V AC/DC current Clamp meter LOT

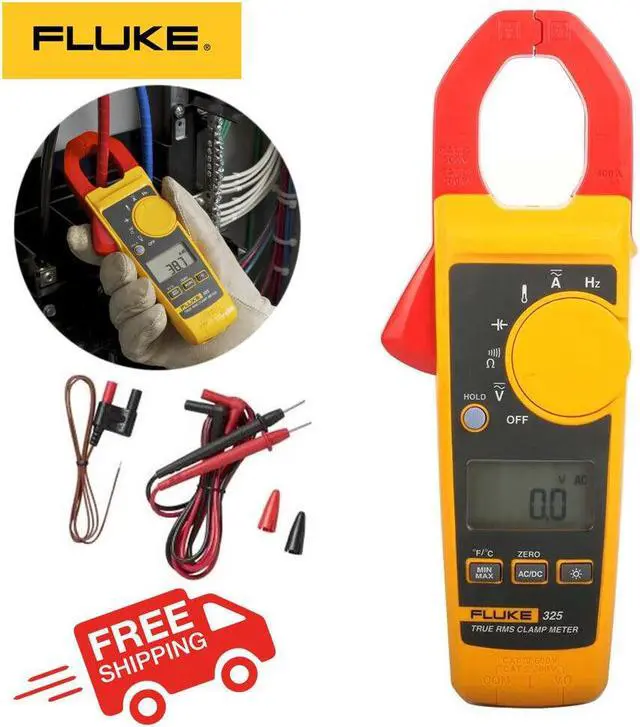

Product overview: Fluke 325 True RMS Clamp Meter
Troubleshoot problems safely and accurately
The Fluke 325 True-rms Clamp Meter is a reliable, versatile troubleshooting tool for commercial and residential electricians. Featuring a slim design for easy transport and use, and a large display for efficient troubleshooting. In addition to true-rms AC current and voltage on non-linear loads, the
325 measures:

DC current
DC voltage
Temperature
Frequency
Youll carry fewer tools in your bag and get more work done.

Covers most problems you see day-in, day-out
The 325 gives you a strong combination of measurement functions, in a tool that is reliable, easy-to-use and affordable. This clamp meter offers True-rms AC voltage and current measurements on non-linear signals. Paired with the CAT III 600 V, CAT IV 300 V safety rating the clamp meter can also measure:

Measures AC/DC current up to 400 A through jaw
AC/DC voltage to 600 V using test leads
Measures frequency from 5 Hz to 500 Hz; resistance to 40 k
Measures temperature from -10 °C to 400 °C with included K-type thermocouple
Min/Max function records important values
Comes with a two-year warranty

Specifications

: Fluke 325 True RMS Clamp Meter

Specifications

AC current Range 40.00 A / 400.0 A
Accuracy 2% ± 5 digits (45 Hz to 65 Hz)
2.5 % ± 5 digits (65 Hz to 400 Hz)
DC current Range 40.00 A / 400.0 A
Accuracy 2% ± 5 digits
AC voltage Range 600.0 V
Accuracy 1.5 % ± 5 digits
DC voltage Range 600.0 V
Accuracy 1.0 % ± 5 digits
Resistance Range 400.0 / 4000 / 40.00 k
Accuracy 1.0 % ± 5 digits
Continuity 30
Capacitance 0 to 100.0 F / 100F to 1000 F
Frequency 5.0 Hz to 500.0 Hz
AC response True-RMS
Backlight Yes
Data hold Yes
Contact temperature - 10.0 °C to 400.0 °C ( 14.0 °F to 752.0 °F)
Min/Max Yes
Size H x W x D (mm) 207 x 75 x 34
Max wire diameter 30 mm (600 MCM)
Weight 283 g
Category rating CAT III 600 V
CAT IV 300 V
Warranty Two-year
