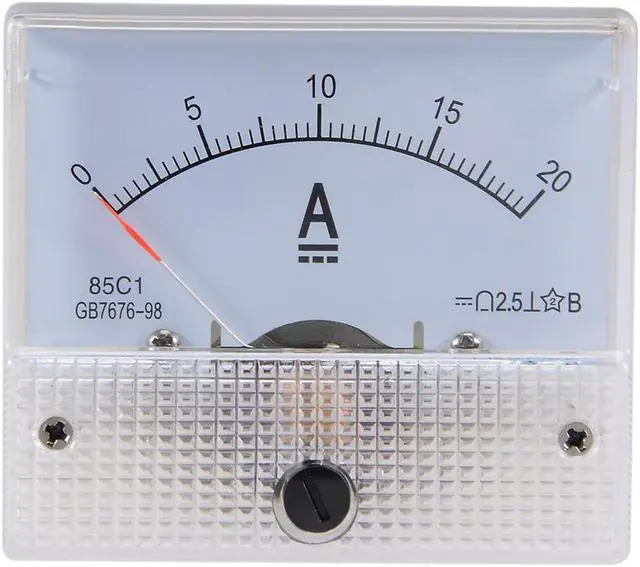

Analog Current Panel Meter DC 20A Ammeter with Pulse for Circuit Testing Ampere Tester Gauge 1 PCS

Note:

Do not need a shunt, directly connect.

If the pointer is not in the 0 position, please use the 0-position adjuster on the cover to adjust the needle to 0 position.

The device should not be knocked or shaken.

Measures amper range of 0-20A with accuracy of Class 2.5.

Clear and easy to read scale and a button for fine tuning the dial.

Needle Ampere Panel Meter for electronic applications, auto circuit or other Voltage measurement devices.

KEY_TAB

KEY_TAB

Specifications:

Product Name : Analog Amperemeter

Model : 85C1

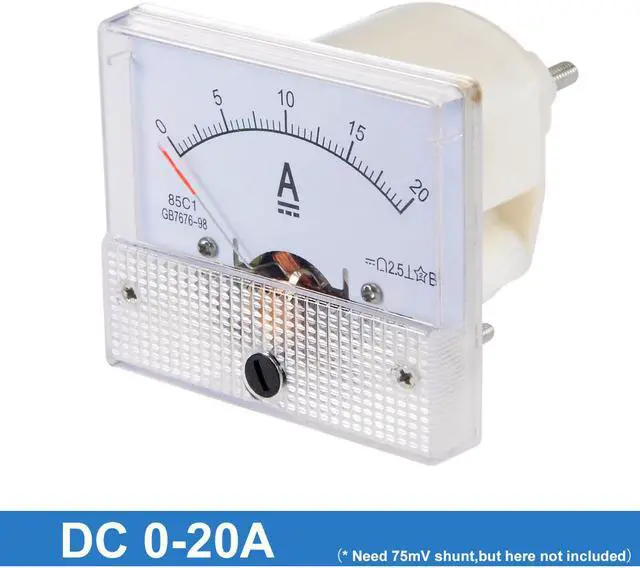

Measuring Ampere Range : DC 0-20A

Accuracy : Class 2.5

Work Temperature : -20~+ 50C

Relative Humidity : ≤85%

Meter Panel Size(Approx) : 2.5 x 2.2 x 2.3 inch / 64 x 56 x 60 mm(L*W*T)

Mount Size : 2 x 1.9 inch / 52 x 49 mm

Net Weight : 62g( oz)

Color : White

KEY_TAB

Package Include:

1 x Analog Amperemeter with PulseKEY_TAB

Several Installing Parts
