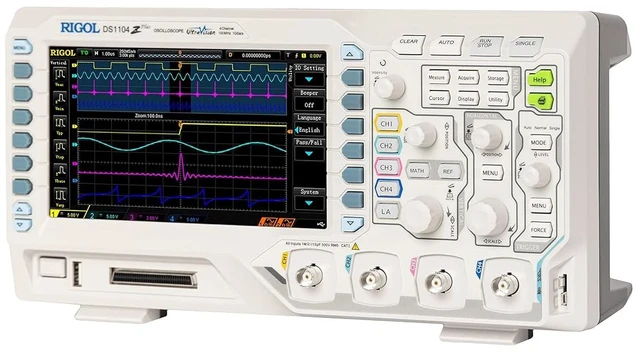

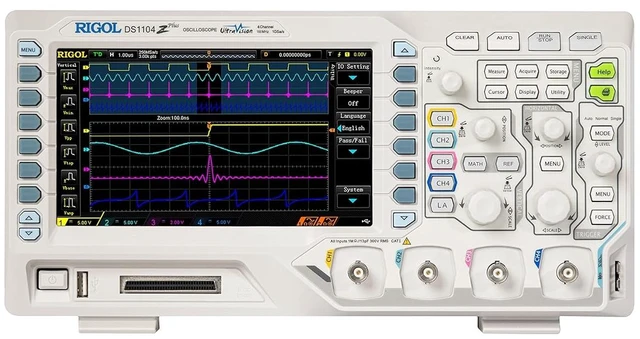

Rigol DS1104Z Plus 4-Channel Digital Oscilloscope, 100MHz, 1GSa/s, 24Mpts, Supports 16-ch logic analyzer (MSO), 1GSa/s real-time, 24Mpts memory, professional benchtop design for lab

1. Analog channel bandwidth: 100 MHz, 70 MHz, 50 MHz
2. 4 analog channels, 16 digital channels (only available for DS1000Z Plus that has been upgraded with the RPL1116 probe kit)
3. Real-time sample rate up to 1 GSa/s
4. Memory depth up to 24 Mpts
5. Up to 30,000 wfms/s waveform capture rate
6. Up to 60,000 frames hardware real-time waveform recording and playback functions
7. Various trigger and bus decoding functions
8. Low noise floor, vertical scale range: 1 mV/div to 10 V/div

1. Built-in dual-channel 25 MHz function/arbitrary waveform generator (only for "-S" Models)

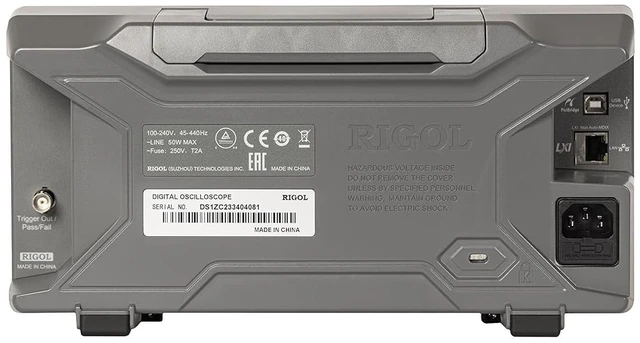

2. Various interfaces: USB Host&Device, LAN (LXI), AUX
3. Compact size, light weight, easy to use
4. 7 inch WVGA (800x480) TFT LCD, intensity graded color display

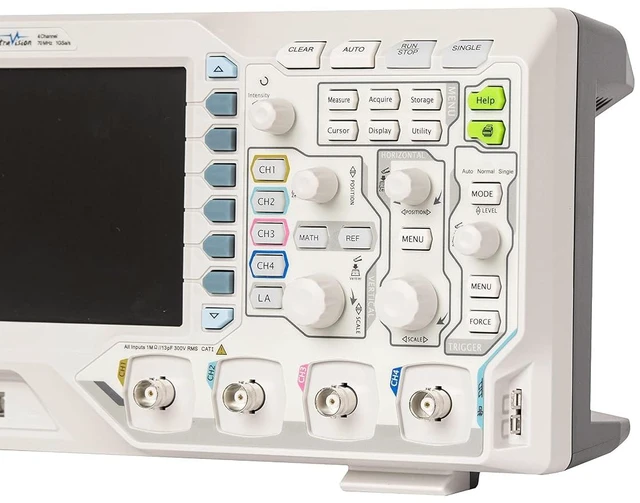

Visualize 4 analog channels simultaneously with full bandwidth. Find bugs and resolve problems faster with better visibility and signal comparison.

Standard 24 MPts memory depth (in 1 channel mode) allows the user to give full consideration to the overall signal details, while maintaining a high sampling rate for a longer period of time. Zoom in to view small signal details in the complete waveform record.

Record up to 60,000 frames of a dynamic signal and play them back like a movie for analysis and training. Locate infrequenct issues over long time periods and go directly to the issue.

Decode and trigger on serial bus systems including RS232, UART, I2C, and SPI all from the Oscilloscope's display. Gather data in hex, binary, or ascii and export to an event table for further analysis.

Gray level display capability, similar to fluorescent display effect, highlighting the smallest changes in the waveform over time

The "plus" models accepts the optional accessory probe (RPL1116). Together these provide 16 digital logic channels in addition to the 4 analog channels. Use this to test multiple analog and digital signals at the same time and analyze bus signals more conveniently.

The "-S" models contain two 25MHz arbitrary waveform generator channels. Use these for comparison, validation, and convenience with the analog channels. Move captured wave data directly to the generator channel for signal verification.
