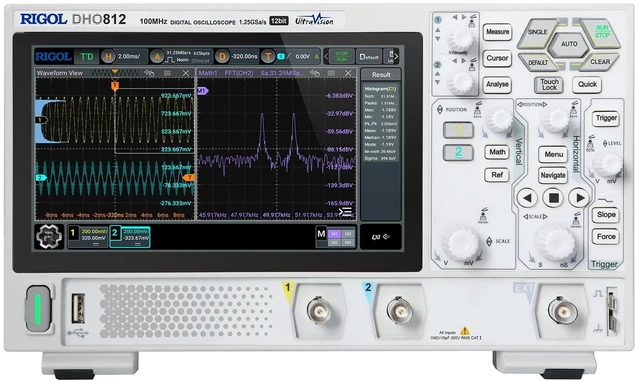

RIGOL DHO812 Portable Digital Oscilloscope, 100MHz, 2CH, 12-Bit Resolution, 12-bit high resolution, ultra-low noise floor, 7" touch screen, Type-C power, compact portable design for lab & field
- Key Specs100 MHz digital oscilloscope with 2 analog channels + EXT TRIG input, 1.25 GSa/s sampling, 12-bit resolution and up to 25 Mpts memory depthcaptures long waveforms with clear detail for ripple and fast edges.
- UltraAcquire & ReviewUltraAcquire up to 1,000,000 wfms/s; 256-level intensity grading plus waveform search/navigation helps surface rare events and review results in an event table with time/event/frame navigation.
- Trigger Decode ToolsPeak detect down to 1.6 ns; 41 auto measurements and math including FFT up to 1 Mpts and filters. Standard serial trigger/decode supports CAN, RS232/UART, I2C, SPI and 4-bit parallel decode using analog channels.
- LAN Web Control SCPILAN supports LXIC and browser Web Control; standard SCPI commands for automation. USB Host/Device and HDMI support saving data/screenshots and external display.
- ApplicationsDigital oscilloscope for SMPS ripple/noise, clock/reset validation and embedded bus debug; EXT TRIG supports flexible triggering setups, while 7" touch screen and Flex Knob improve bench efficiency.
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
DHO800 SERIESCOMPACT SIZE, VARIOUS INTERFACES
The DHO800 series is RIGOL's high-performance economical digital oscilloscope. Though compact in design, it has superior performance. It features a capture rate up to 1,000,000 wfms/s (in UltraAcquire Mode), 25 Mpts memory depth, 12 bits resolution, and low noise.
The DHO800 series is a brand new economical digital oscilloscope designed for the vast mainstream digital oscilloscope market to meet their design, debugging, and test demands.

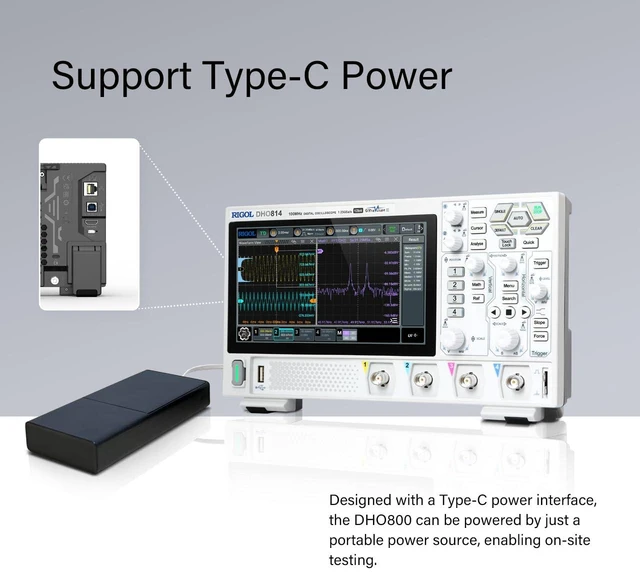

Designed with a Type-C power interface, the DHO800 can be powered by just a portable power source, enabling on-site testing.

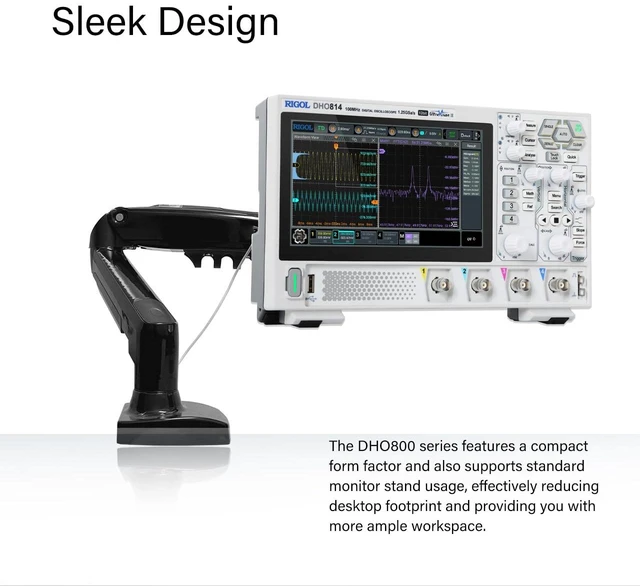

The DHO800 series features a compact form factor and also supports standard monitor stand usage, effectively reducing desktop footprint and providing you with more ample workspace.

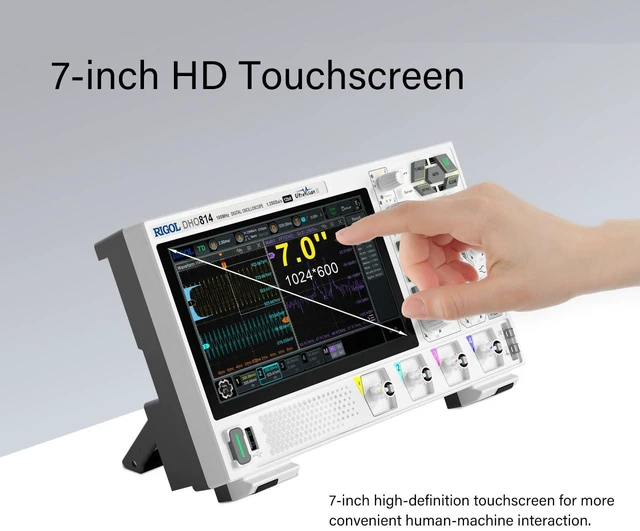

7-inch high-definition touchscreen for more convenient human-machine interaction.

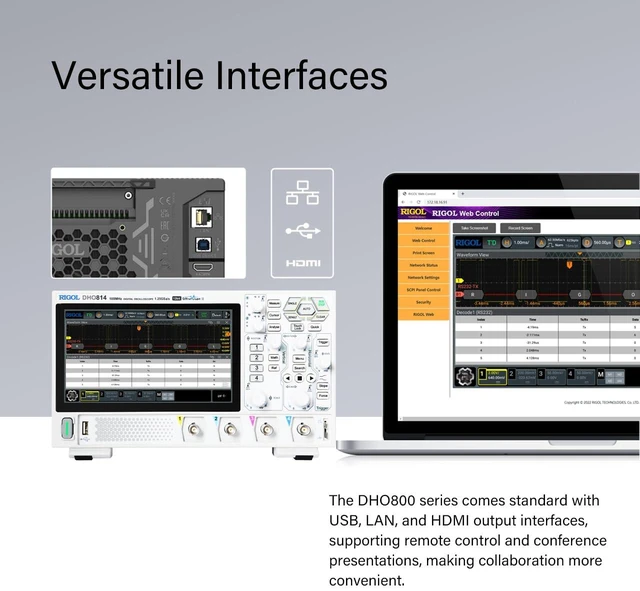

The DHO800 series comes standard with USB, LAN, and HDMI output interfaces, supporting remote control and conference presentations, making collaboration more convenient.
