Handheld Spectrum Analyzer HSA1036-TG Frequency Range of 9 kHz up to 3.6 GHz,EMI pre-Compliance Test Function and Tracking Generator
- The Owon HSA1036-TG spectrum analyser has a frequency range of 9 kHz up to 3.6 GHz and a frequency resolution of 1Hz which makes sure that very accurate measurements can be made.

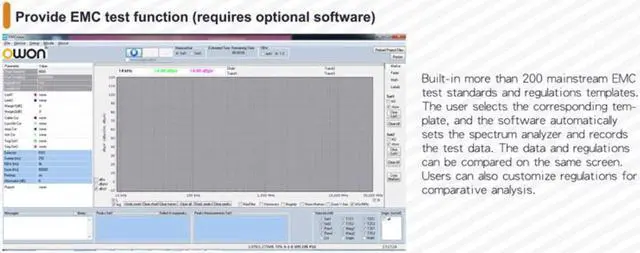

- EMI funtion and tracking generator The HSA1036-TG has a 3.6GHz tracking generator and provides EMI pre-compliance test function. The 6dB EMI filter and peak detector makes the spectrum analyser suitable for more accurate EMI-pre test and diagnosis. Complete testing and production report can be completed by using supporting software. Due the implementation of these functions, it is posibble to test whether or not devices fulfill the requirements of the EMI regulations.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

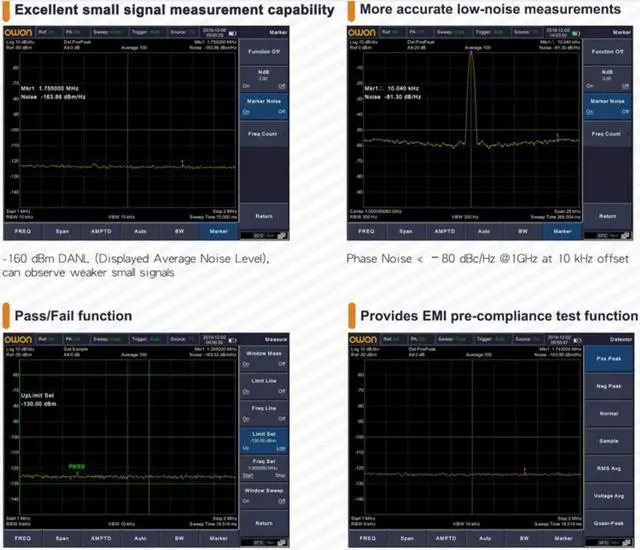

The Owon HSA1036-TG spectrum analyser has a frequency range of 9 kHz up to 3.6 GHz and a frequency resolution of 1Hz which makes sure that very accurate measurements can be made. Furthermore, the spectrum analyser has an excellent small signal measurement capability due to the small DANL. The Owon HSA1036-tg has a large screen with full touch design and a wider view angle for more convenient operation. Additionally, the spectrum analyser has a build-in light sensor which adjusts the backlight according to the environmental light. Lastly, the pass/fail function rapidly detects if the test results pass. The Owon HSA1036-TG is a handheld spectrum analyser which makes it easy in use. Additionally, the spectrum analyser also has a EMI pre-compliance test function and Tracking Generator.

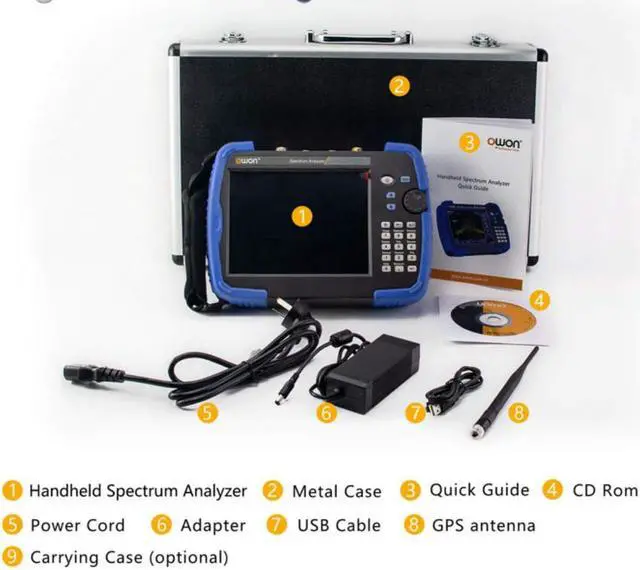

Accesoires The Owon HSA1036-TG will be delivered including:
Handheld spectrum analyser
Metal case
Power cord
Adapter
USB cable
Pros and co
Accesoires The Owon HSA1036-TG will be delivered including:
Handheld spectrum analyser
Metal case
Power cord
Adapter
USB cable
Pros and co
