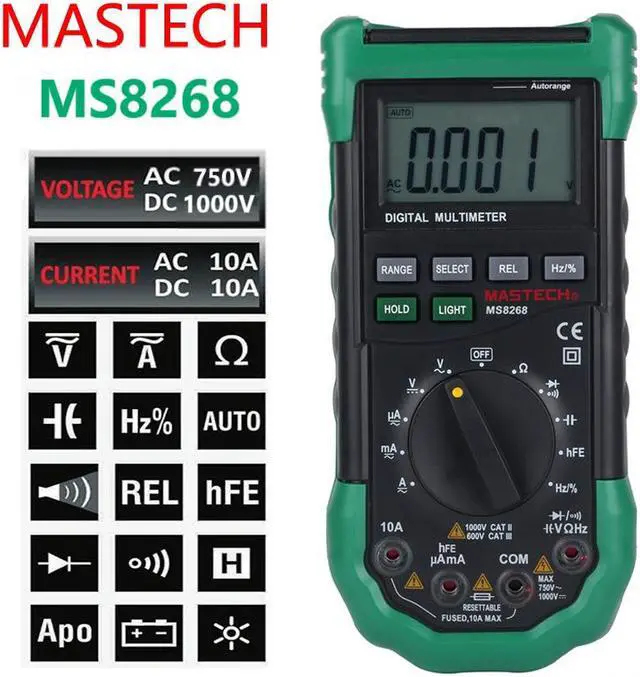

Mastech MS8268 Multimeter Digital Multimeter MS8261 MS8264 MS8265 MS8269 Electrical Measure Tool Current Resistance Capacitance Tester ( Model: MS8268 )

Description: This MS8268 is a fully featured digital multimeter. It is capable of most standard functions including AC/DC Voltage and Current, Resistance, Capacitance, Frequency, Temperature and more. It's also packed with many nice features, such as back light, data hold, reset table fuse. No matter you are a professional or just a DIYer, this is a great and affordable tool for your daily use.

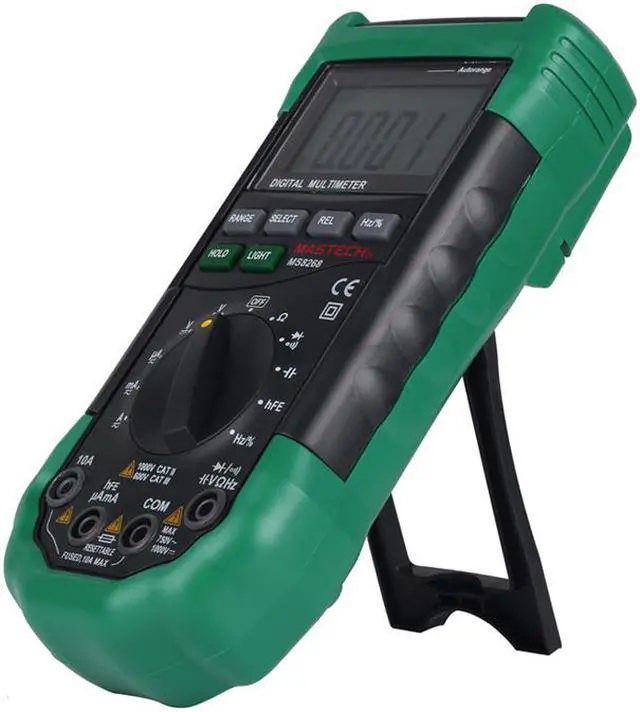

Feature: - Built-resettable fuse protection - Red lights to show the correct terminals - Auto power off and low battery indication - Powered by 1.5V AAA battery*3 (NOT included) - Back-stand is included for convenient operation - Automatic indication of functions and unit symbols - Full overload protection and dual insulation protection - "Sleep mode", auto power off and low battery indication - The meter has both manual range and auto range switching - Data holding, to hold the readings while taking measurement - Display relative measurement in all functions except frequency - 2.4 inch digits LCD with backlight. (press LIGHT for backlight on) - Equipped with sound and light alarms against misconnection of test leads - Detachable overmolding ruber case, shake-proof, skid-proof and good touch-feeling - Measuring of hFE of transistor and capacitance by using the special multi-function socket for more accurate value -
Multi-functional: Including measurements of AC / DC voltage and current, resistance, capacitance, frequency, duty cycle, transistor, diode and continuity
test
Specification:
Material: ABS
Model: MS8268
Test Leads: 1KV 10A
Transistor hFE: 1 ~ 1000
Storage Humidity: below 80%
RH Capacitance: 20n/200n/2µ/20µF ± 4.0 %
Sampling Rate: approx. 3 times / second

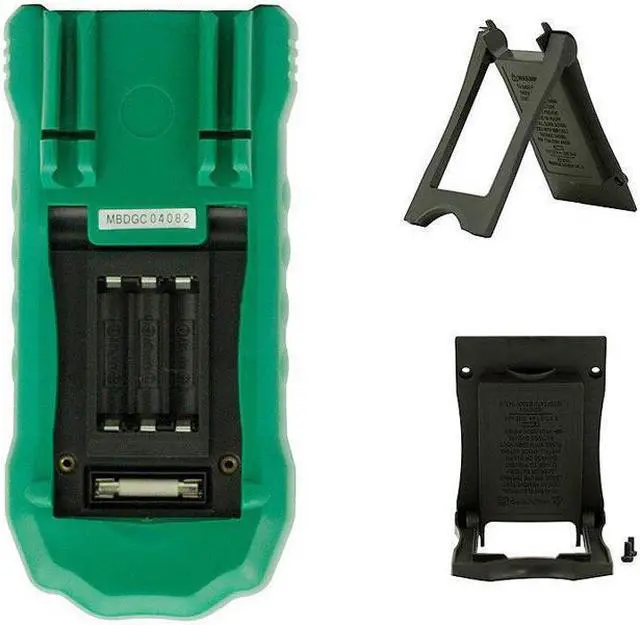

Power: 1.5V AAA battery*3 (NOT included)
Frequency: 10/100/1000/10k/200kHz ± 2.0 %
Storage Temperature: -10 to 60°C (14 to 140° F)
Operating Temperature: 0 to 40°C (32 to 104°
F) Resistance: 400/4k/40k/400k/4MO ± 1.0 %, 40MO ± 2.0 %

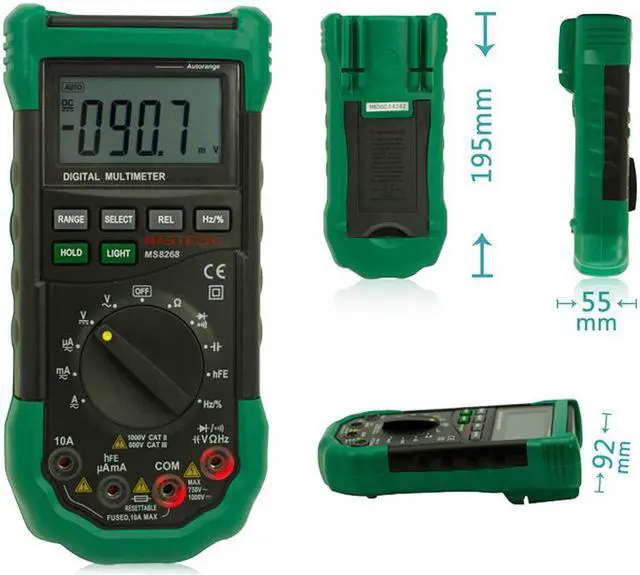

Operating Humidity: below 80% RH, <10°C non-condensin Safety Standards: IEC1010-1, CAT. III 600V & CAT. II 1000V DC voltage: 400mV/4V/40V/400V±(0.7%+2), 1000V±(0.8%+2) AC current: 2mA±(0.8%+20), 200mA±(1.2%+20), 10A±(2.5%+50) DC current: 400µA/4000µA/40mA/400mA±(1.2%+3), 10A±(2.0%+5) AC voltage: 400mV±(0.3%+3), 4V/40V/400V±(0.8%+3), 750V±(1.0%+3) Dimension / Weight: 195*92*55mm (7.68*3.62* 2.17 inch) / 380g

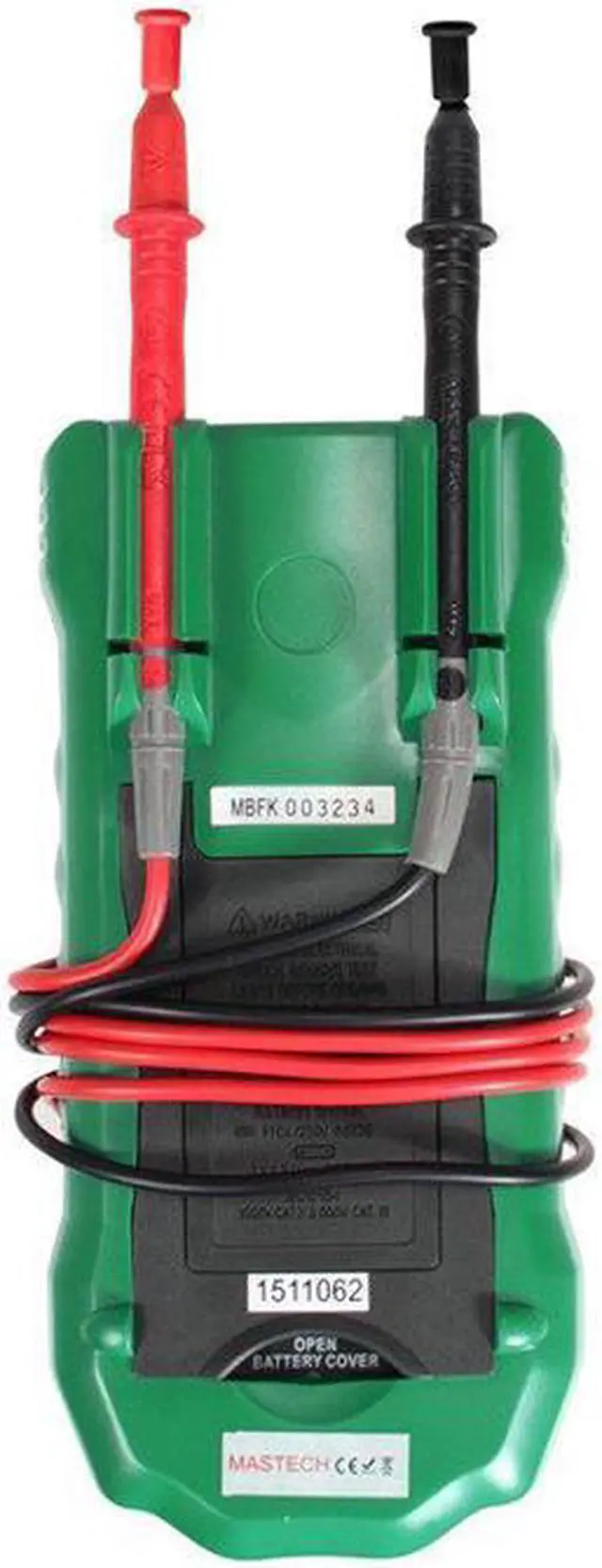

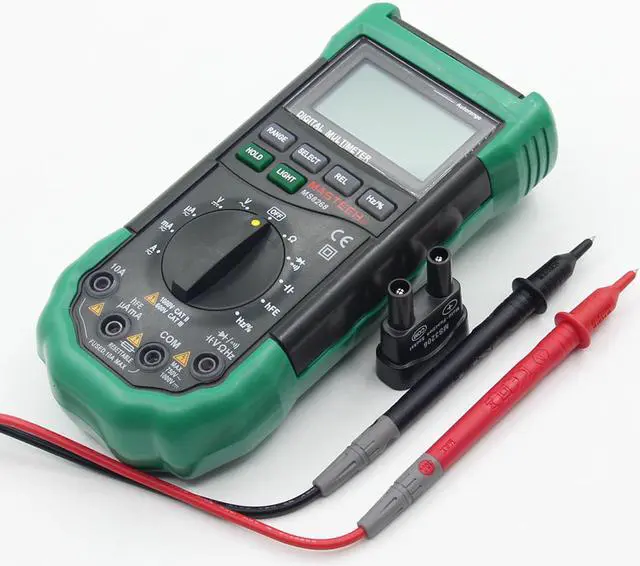

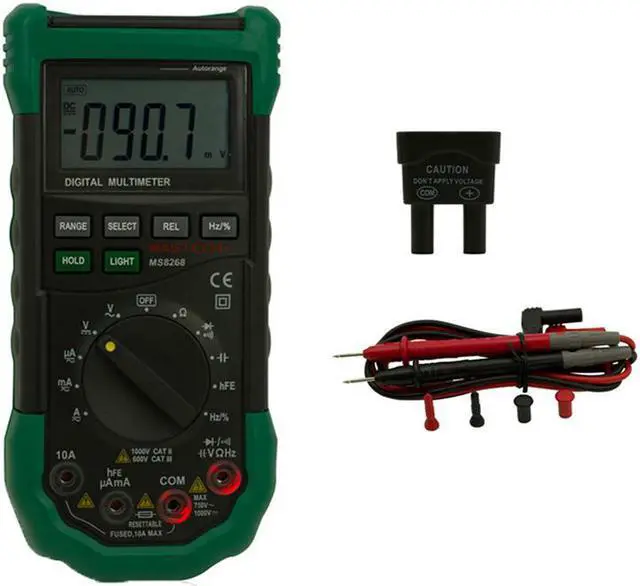

Packing List: Test Lead Cable*2 Multifunction Socket*1 MS8268 Digital Multimeter*1
