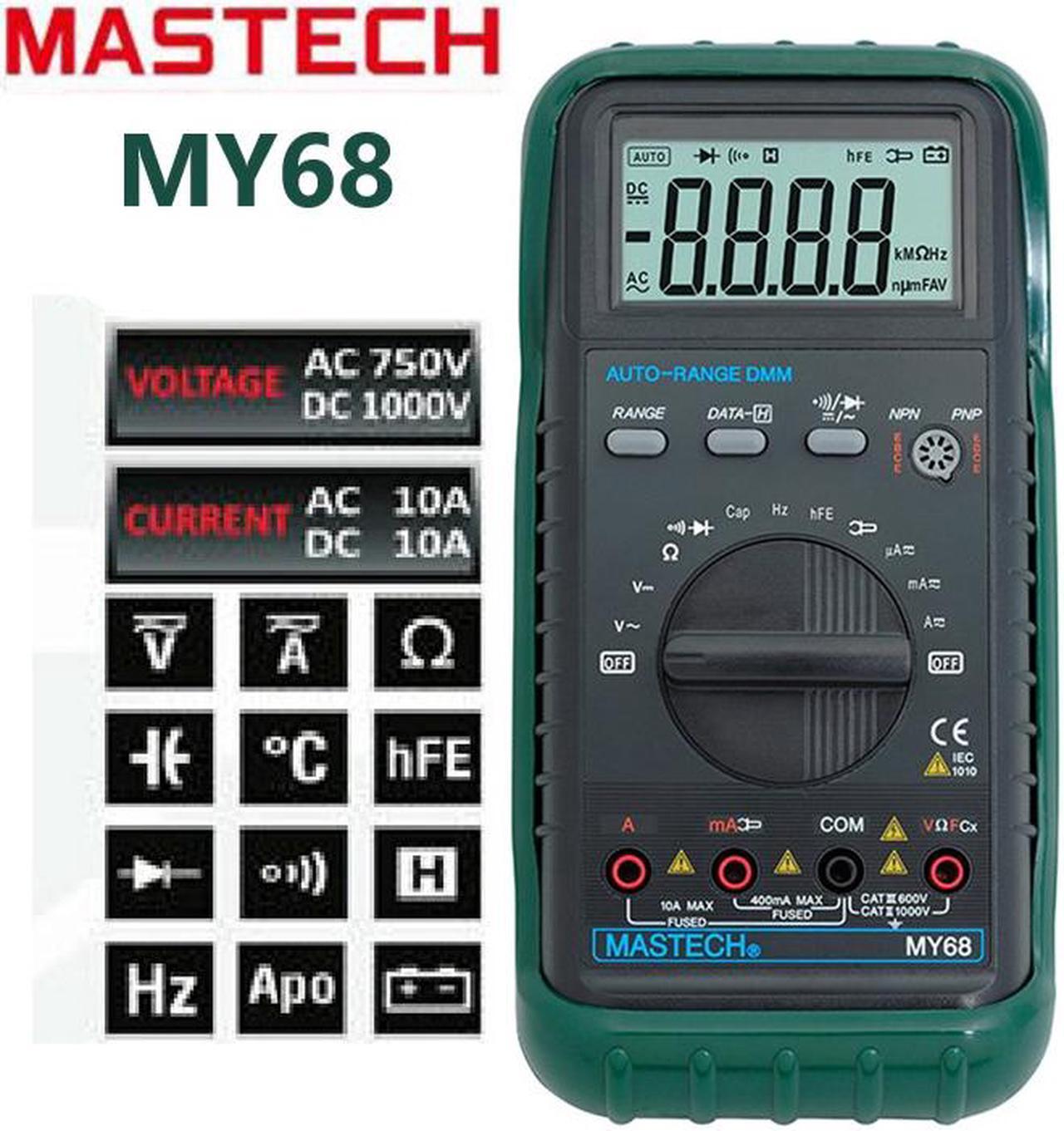

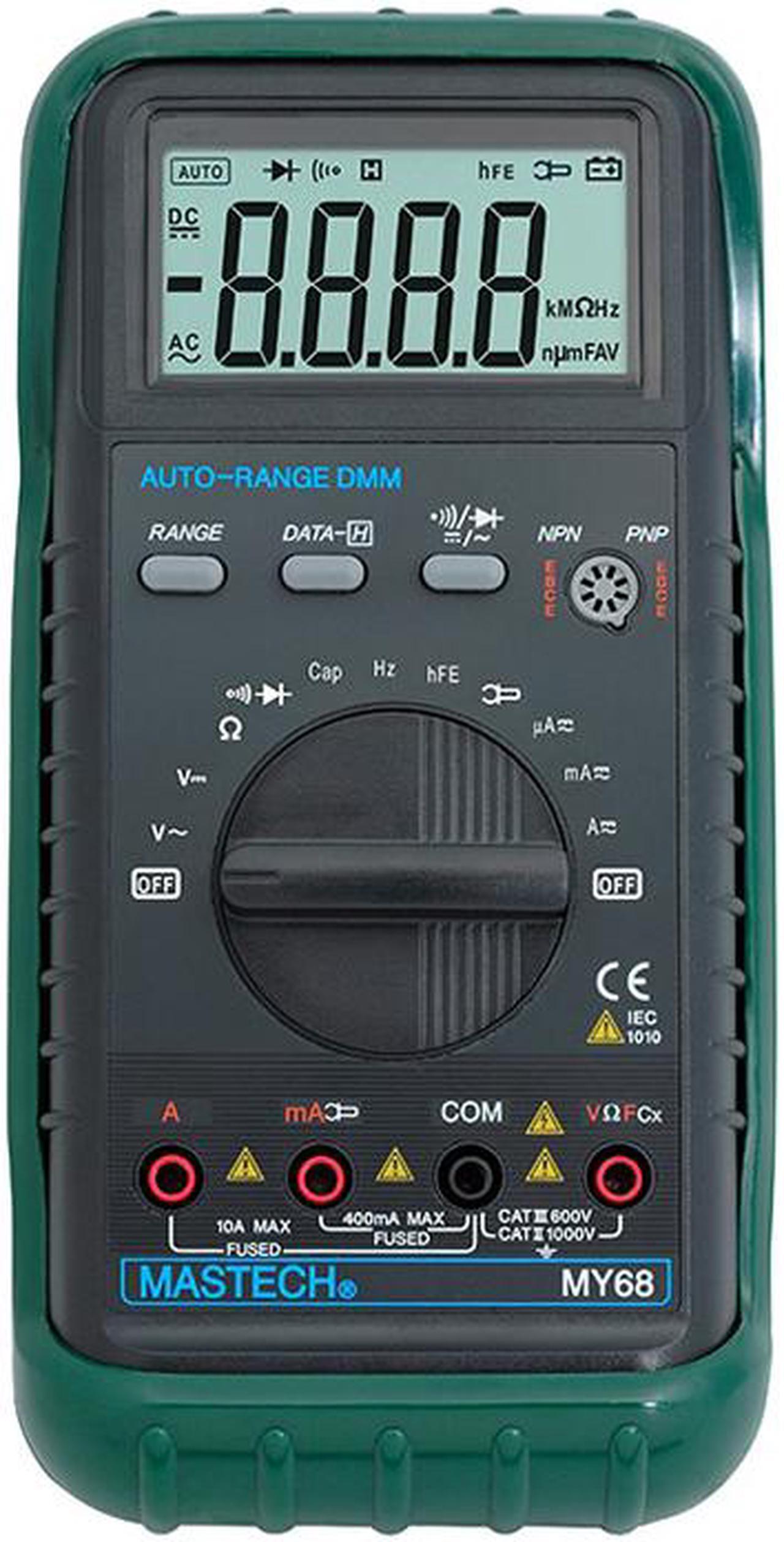

Mastech MY68 Multimeter Digital Multitester Auto Range DMM Current Resistance Capacitance Digital Tester MY68
- Rugged shell design
- Data hold and auto power off
- Application: Office, Industrial, Education, Home Tool
- Test AC/DC voltage and current, resistance, capacitance and frequency
+
+
Overview
Specs
Reviews (1)
Description: This is a fully featured digital multimeter. It is capable of most standard functions including AC/DC Voltage and Current, Resistance, Capacitance, Frequency, Temperature and more. It's also packed with many nice features, such as back light, data hold, reset table fuse. No matter you are a professional or just a DIYer, this is a great and affordable tool for your daily use.
Features: Data Hold Low battery indication Auto and manual range 3.75 inch digits LCD display Autorange and Manual ranging Diode Test and continuity check
Over range indication: LCD will display "OL" Automatic indication of functions and symbols Transistor, Continuity, Continuity, Data hold, Diode test Test AC/DC voltage and current, resistance, capacitance and frequency
Specifications:
Model: Mastech
MY68 Transistor (hFE) test: 1-1000
Powewr Supply: 9V 6F22*1 (NOT included)
Dimension/Weight: 189*91*32mm / about 300g
DC Voltage: 400mV/4V/40V/400V± 0.7 %, 1000V± 0.8 %
AC Voltage: 400mV±3%, 4V/40V/400V± 0.8 %, 750V± 1.0 %
DC Current: 400uA/4000uA/40mA/400mA± 1.2 %, 10A± 2.0 %
AC Current: 400uA/4000uA/40mA/400mA± 1.5 %, 10A± 3.0 %
Capacitance: 4nF± 5.0 %, 40nF/400nF/4uF/40uF/200uF± 3.0 %
Frequency: 10Hz/100Hz/1000Hz/10kHz/100kHz/200kHz± 2.0 %
Resistance: 400ohm/4kohm/40kohm/400kohm/4Mohm± 1.2 %, 40Mohm± 2.0 %
Package List: Test Lead Cable*2 MY68 Digital Multimeter*1
Features: Data Hold Low battery indication Auto and manual range 3.75 inch digits LCD display Autorange and Manual ranging Diode Test and continuity check
Over range indication: LCD will display "OL" Automatic indication of functions and symbols Transistor, Continuity, Continuity, Data hold, Diode test Test AC/DC voltage and current, resistance, capacitance and frequency
Specifications:
Model: Mastech
MY68 Transistor (hFE) test: 1-1000
Powewr Supply: 9V 6F22*1 (NOT included)
Dimension/Weight: 189*91*32mm / about 300g
DC Voltage: 400mV/4V/40V/400V± 0.7 %, 1000V± 0.8 %
AC Voltage: 400mV±3%, 4V/40V/400V± 0.8 %, 750V± 1.0 %
DC Current: 400uA/4000uA/40mA/400mA± 1.2 %, 10A± 2.0 %
AC Current: 400uA/4000uA/40mA/400mA± 1.5 %, 10A± 3.0 %
Capacitance: 4nF± 5.0 %, 40nF/400nF/4uF/40uF/200uF± 3.0 %
Frequency: 10Hz/100Hz/1000Hz/10kHz/100kHz/200kHz± 2.0 %
Resistance: 400ohm/4kohm/40kohm/400kohm/4Mohm± 1.2 %, 40Mohm± 2.0 %
Package List: Test Lead Cable*2 MY68 Digital Multimeter*1
