Mastech MS8265 Multimeter Digital Multimeter MS8268 Electrical Measure Tool Current Resistance Capacitance Tester ( Model: MS8265 )

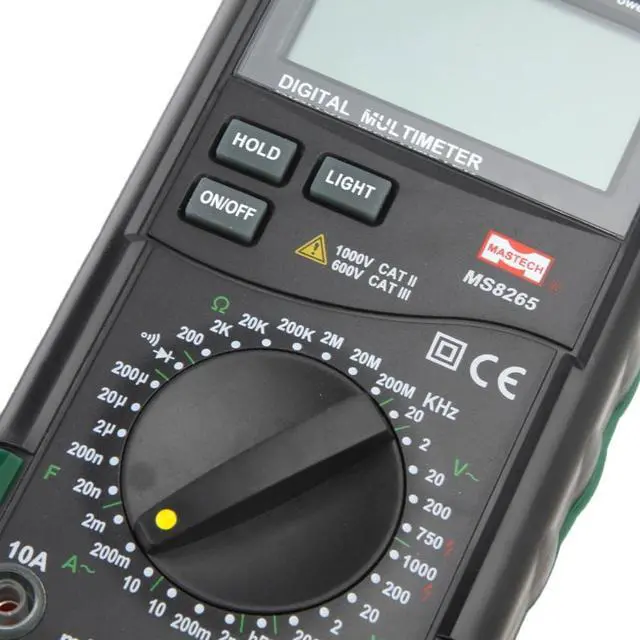

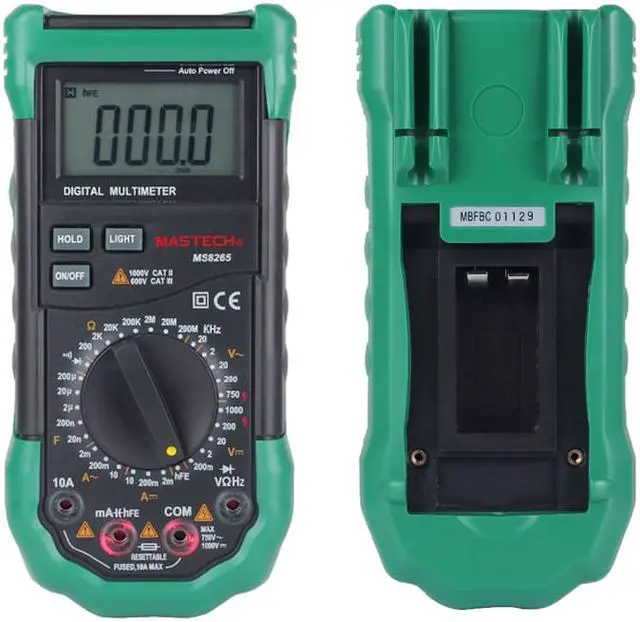

Description: This MS8265 is a fully featured digital multimeter. It is capable of most standard functions including AC/DC Voltage and Current, Resistance, Capacitance, Frequency, Temperature and more. It's also packed with many nice features, such as back light, data hold, reset table fuse. No matter you are a professional or just a DIYer, this is a great and affordable tool for your daily use.
Function: - Manual & Auto ranges - Full overload protection - Duty Cycle Measurement - Relative value measurement - Misconnection alarm system - Audible warning for over-range
Feature: - Built-resettable fuse protection - Red lights to show the correct terminals - Auto power off and low battery indication - Back-stand is included for convenient operation - Automatic indication of functions and unit symbols - Full overload protection and dual insulation protection - "Sleep mode", auto power off and low battery indication - The meter has both manual range and auto range switching - Data holding, to hold the readings while taking measurement - Display relative measurement in all functions except frequency - 2.4 inch digits LCD with backlight. (press LIGHT for backlight on) - Equipped with sound and light alarms against misconnection of test leads - Detachable overmolding ruber case, shake-proof, skid-proof and good touch-feeling - Measuring of hFE of transistor and capacitance by using the special multi-function socket for more accurate value -
Multi-functional: Including measurements of AC / DC voltage and current, resistance, capacitance, frequency, duty cycle, transistor, diode and continuity
test

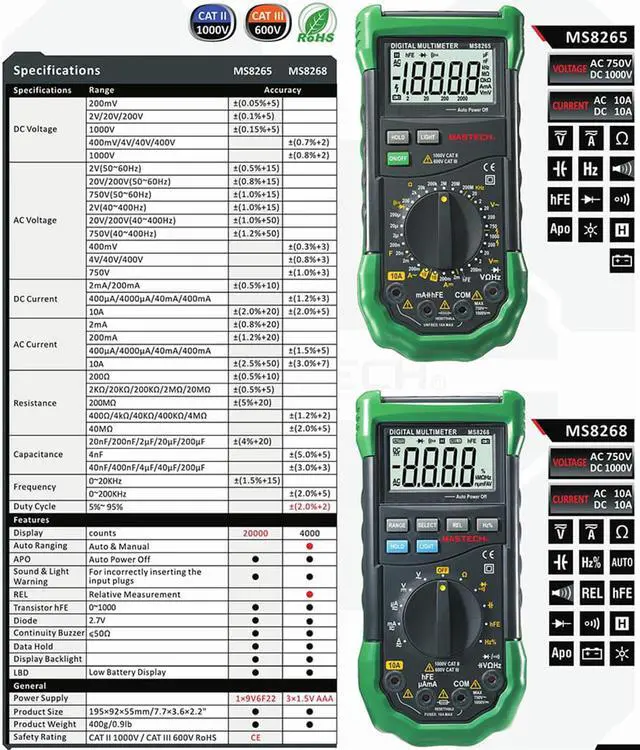

Specification:
Material: ABS
Model: MS8265
Transistor hFE: 1 ~ 1000
Storage Humidity: below 80%
RH Power: 9V 6F22 battery (NOT included)
Frequency: 10/100/1000/10k/200kHz
Capacitance: 20nF/200n/2µ/20µ/200µF
AC voltage: 2V/20V/750V (50-60Hz, 40-400Hz)
DC current: 2mA/200mA±( 0.5 %+10), 10A±( 2.0 %+20)
Safety Standards: IEC1010-1, CAT. III 600V & CAT.

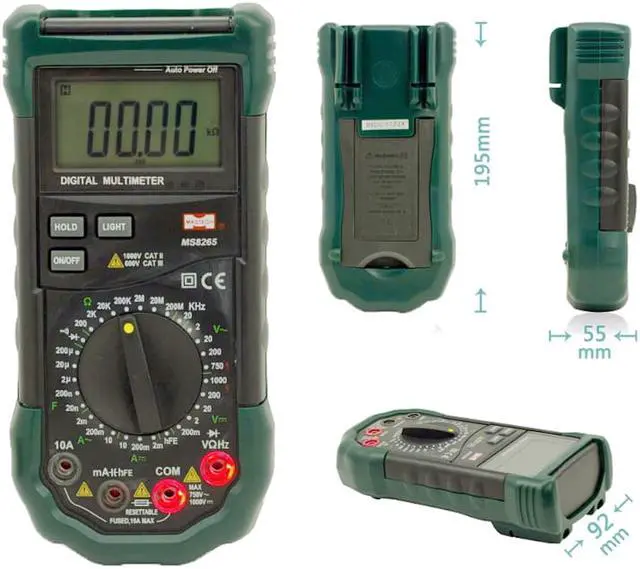

II 1000V Operating Humidity: below 80% RH, <10°C non-condensin Dimension / Weight: 195*92*55mm (7.68*3.62* 2.17 inch) / 360g AC current: 2mA±(0.8%+20)/200mA±(1.2%+20), 10A±(2.5%+50) DC voltage: 200mV±(0.05%+5), 2V/20V/200V±(0.1%+5), 1000V±(0.15%+5) Resistance: 200O(0.5%+10), 2k/20k/200k/2MO/20MO(0.5%+5), 200MO(5%+20)

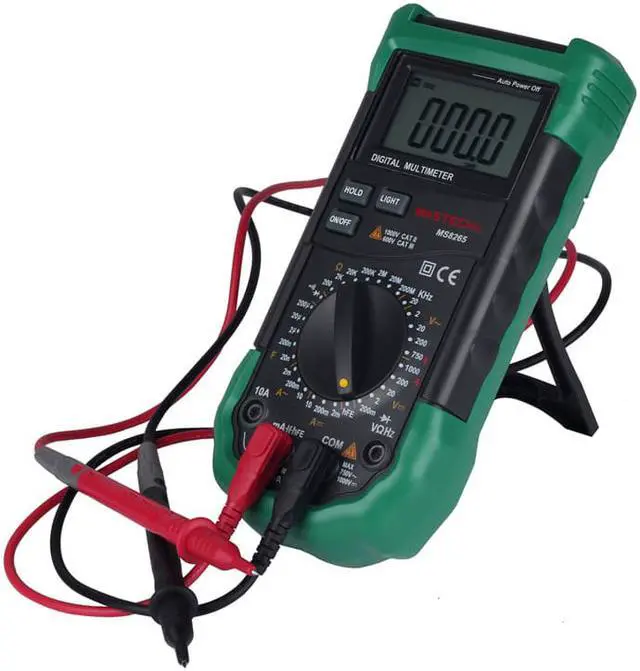

Packing List: Test Lead Cable*2 MS8265 Digital Multimeter*1
