Mastech MS8229 Multimeter 5 in 1 Digital Multimeter Auto Range Electrical Measure Tool Current Resistance Capacitance Tester MS8229

Description: This MS8229 is a fully featured digital multimeter. It's a portable professional measuring instrument with large LCD to show three lines of readings, as well as back light for easily reading. The "single-hand operation" design for the range switch makes measurement simple and easy. Overload protection and low battery indication are provided. It is capable of most standard functions including AC/DC Voltage and Current, Resistance, Capacitance, Frequency, Temperature and more. It's also packed with many nice features, such as back light, data hold, reset table fuse. It is an ideal multi-function instrument with scores of practical applications for professional, workshop, school, hobby and home use. No matter you are a professional or just a DIYer, this is a great and affordable tool for your daily use.
Function:
1. Both auto range and manual range are available
2. Both the reading and unit of measurement are displayed on the LCD.
3. Equipped with reading hold function, auto power off, relative measurement function.
4.
Luminance function: applicable to measuring field luminance with full cosine correction for angular incidence of light.
5. Perform measurements of AC/DC voltage and current, resistance, frequency, duty, capacitance, as well as continuity and diode test.
6. The humidity and temperature functions are suitable for measuring ambient humidity and temperature, as well as temperature of objects.
7. The meter is devised with light and sound alarm to prevent misconnection of test leads and provide additional protection against damages caused by improper operation.
8.
Sound level function: applicable to measuring noise level in factories, schools, offices, airports and at home, and for checking the acoustics of studios, auditoriums and hi-fi installations.
Features: -
Auto power off time: 30 min -
Unit indication: function and unit -
Maximum value display: 3999 digits -
Overrange indication: 0L' or -0L' -
Battery low indication: on LCD display -
Display: LCD, 3 readings at the same time -
Fuse protection: F2 10A/250V (quick acting) -
Sampling time: approx. 0.4 second per sample -
Operating altitude: max. 2000 meters (7000 ft. ) - Overrange protection is provided for all ranges -
Storage temperature: -10° to 50°C (10F to 122F) -
Operating temperature: 0° to 40°C (32F to 104F) -
Specification of resettable fuse: F1 500mA/250V - Auto range and manual range options are available -
Operating power: 1.5V AAA battery*3 (NOT including) -

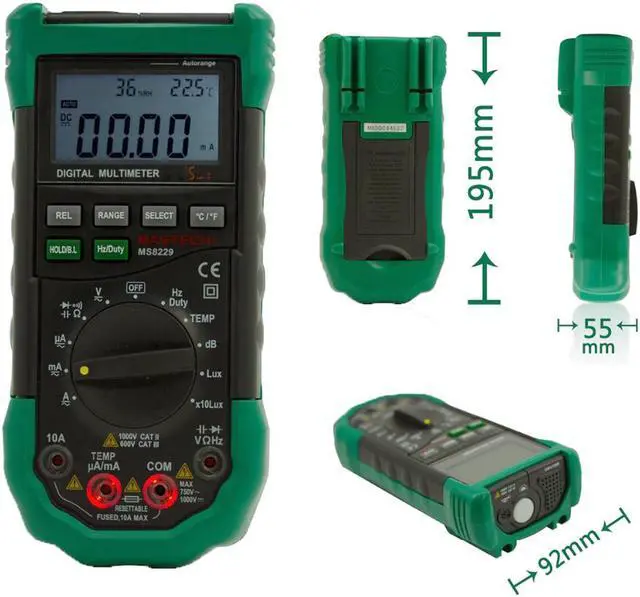

Dimension/Weight: approximate 195×92×55mm/400g -
Polarity indication: automatic; - for negative polarity. - Maximum voltage between terminals and earth ground: 1000V DC or rms AC - The meter is devised with light and sound alarm to prevent test leads misconnection
Specification:
RH: 20 to 95% ± 5.0 %, Sount
dB: 40~100dB ± 3.5 %
Lux: 4, 000/40, 000 Lux ± 5.0 %
Duty cycle: 0.1 %- 99.9 % ± 3.0 %
DC Volt: 400m/4/40/400/1000V ± 0.7 %+2
Frequency: 10/100/1K/10K/100KHz ± 2.0 %+5
Capacitance: 40n/400n/4u/40u/100uF ± 3.0 %+3
AC Volt: 400m/4/40/400V ± 0.8 %+3; 750V ±1%+3
DC Amper: 400µ/4000u/40m/400m ± 1.2 %+3 4/10A ± 2.0 %+10
AC Amper: 400µ/4000u/40m/400m ± 1.5 %+5 4/10A ± 3.0 %+10
Resistance: 400/4K/40K/400K/4M ohm± 1.2 %+5; 40M ohm±2%+5 Diode test, Continuity
tester: Buzzer if resistance is less than 40 ohms.
Temperature: -20 to 1000 degrees ± 2.0 %; -4Fahrenheit to 1832Fahrenheit ± 2.0 %

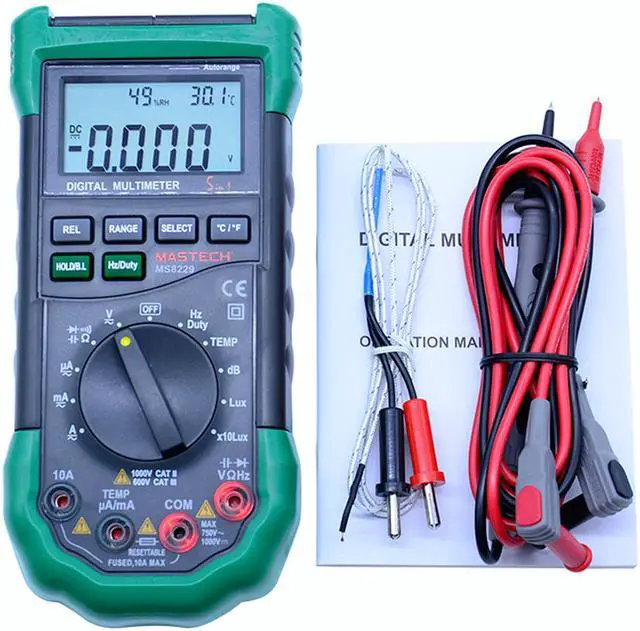

Package List: Test lead Cable*2 MS8229 Multimeter*1
