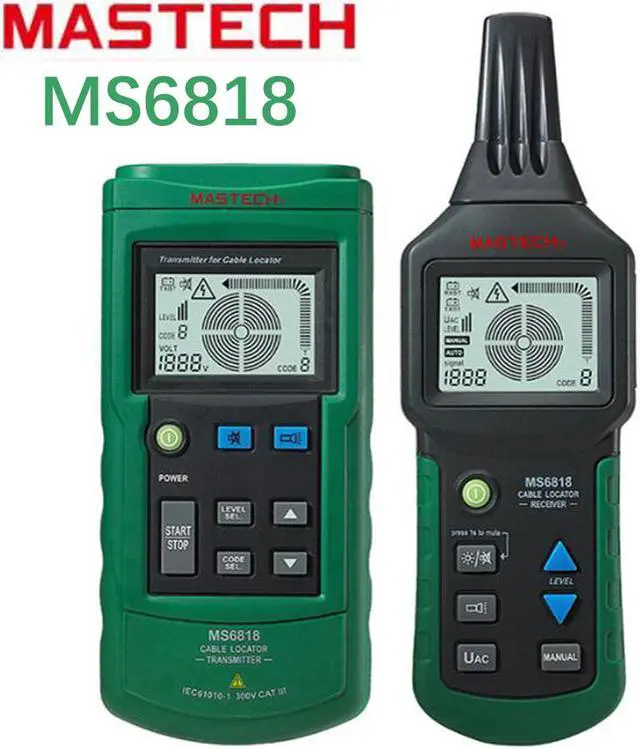

Mastech MS6818 Wire Cable Tracker Metal Pipe Locator Detector Tester Line Tracker Voltage 12V to 400V Meter Pressure Transmitter Tracker Finder

Highlight: Flashlight & Backlight Function Compactness-durability and portability The receiver can sweep frequency automatically Mute Function & Auto power off within 10 minutes Both the transmitter and the receiver can work under mute mode Additional transmitters are available to extende or distinguish multiple signals The sensitivity of the receiver can be adjusted either manually or automatically The Transmitter has the function of self-inspection to detect its own working status and to display it on the LCD screen for user's reference

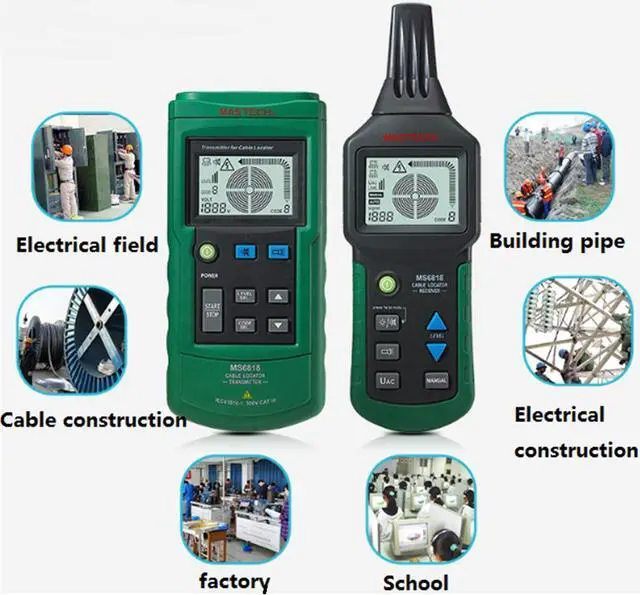

Features: - Compactness, durability and portability; - Detecting fuses and assigning current circuits; - The receiver can sweep frequency automatically; - Detecting interruptions and short-circuits in floor heating; - Both the transmitter and the receiver can work under mute mode; - Additional transmitters are available to extend or distinguish several signals; - The sensitivity of the receiver can be adjusted either manually or automatically; - The receiver's LCD screen is provided with backlight for application in poor light; - Detecting cables, electrical lines, water or gas supply pipelines buried in wall or earth; - Tracing sockets and distribution sockets having accidentally been covered by plastering; - Detecting interruptions and short circuit in cables and electrical lines buried in wall or earth; - Both the transmitter and the receiver is provided with flashlight function when working in darkness; - The receiver is available with automatic shutdown, powered off automatically over 10 minutes of absence of keystroke; - The transmitter is integrated with the functions of AC/DC voltmeter, which can measure 12V to 400V AC/DC voltage on a linear basis; - The transmitter has the functions of self-inspection to detect its own working status and to display it on the LCD screen for users reference; - The screen of the receiver & transmitter can display transmitting power, transmitted codes, its own battery energy, mains voltage detected, AC/DC status of mains voltage detected, and warning symbol for mains voltage.

Specification:
Output Signal:
Transmitter: 125KHz Main
Voltage Measurement: Receiver 0- 0.4 m
Work Environment:
Transmitter/Receiver: 0 to 40°C
Storage Temperature:
Transimiter/Receiver: -20C to 60°C
Measuring Height: Transmitter/Receiver
Maximum: 2000m
Voltage: maximum
400V(AC/DC)/Transmitter: 12V-400V (AC/DC)
Relative hamidity (no condensation): Transmitter/Receiver Maximum 80%

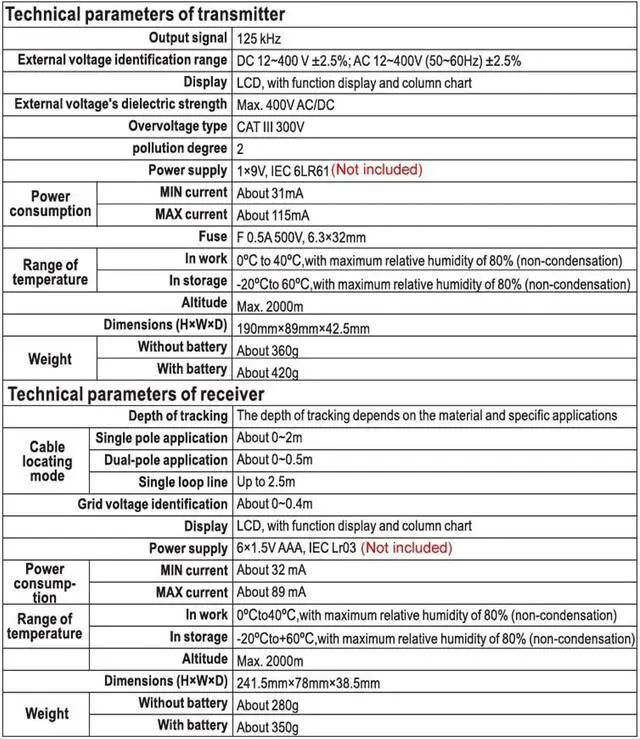

Cable Depth Measurement: Receiver 0 to 2.5 m (wall / underground cable) Technical parameters of
Transmitter Pollution: degree 2
Altitude: Max.
2000m Output Signal: 125 kHz
Fuse: F 0.5A 500V, 6.3 x32mm
Overvoltage type: CAT III 300V
Power supply: 1x9V, IEC 6LR61
Display: LCD, with function display and column chart

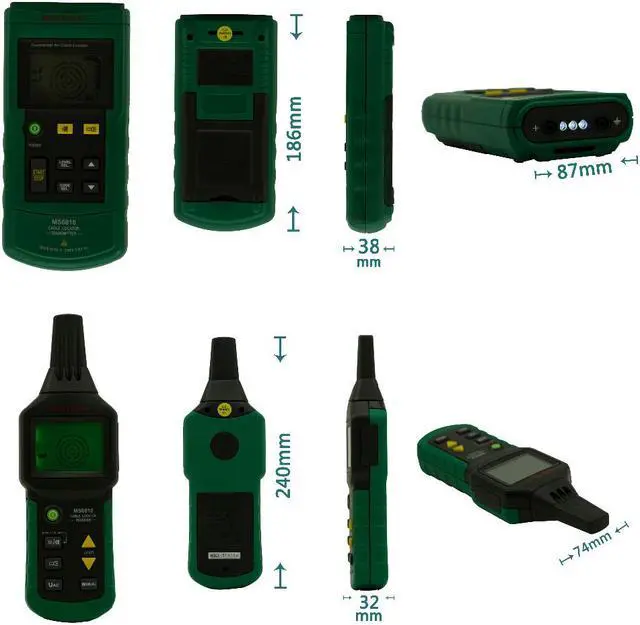

Weight/Dimensions (HxWxD): Approx.
420g/190mmx89mmx43mm Power cunsumption: Min. current about 31mA Max. current about 115mA
Range of temperature: -20C to 60°C, with max. RH of 80% (non- condensation)
External voltage identification range: DC 12-400V 2.5 %, AC 12-400V(50-60Hz) 2.5 % Technical parameters of
Receiver:
Altitude: Max.
2000m single loop line: up to 2.5 m
Power supply: 1.5V AAA*6, IEC
Lr03 Single pole application: about 0-2m
Dual-pole applications: about 0- 0.5 m
Grid voltage identification: About 0- 0.4 m
Depth of tracking: depends on the material
Dsiplay: LCD, with function display and column chart
Weight/Dimensions (HxWxD): Approx.
350g/242mmx78mmx39mm Power consumption: Min.
current: about 32mA Max.
current: about 89mA
Range of temperature: -20C to 60°C, with max. RH of 80% (non- condensation)

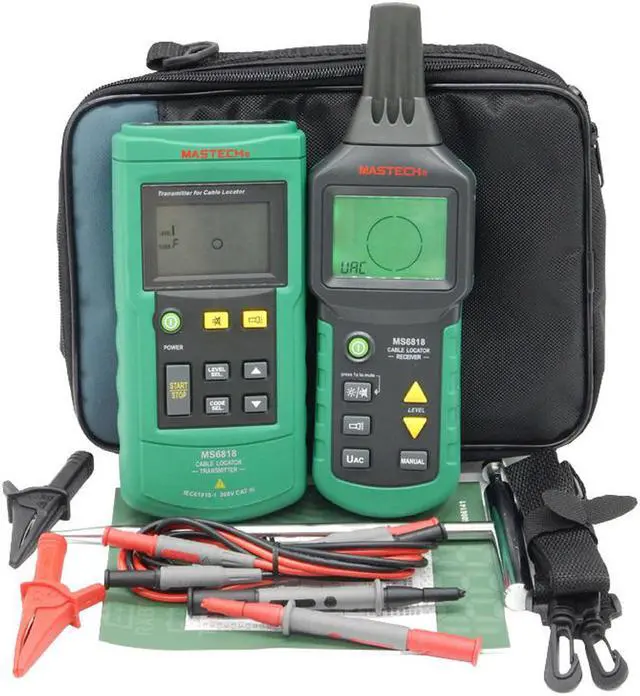

Package List: Test Probe*2 Carrying Bag*1 English Manual*1 Test Lead Cable*2 Crocodile Clamp*2 Grounding Rod 2322*1 Mastech MS6818 Receiver*1 Mastech MS6818 Transmitter*1
