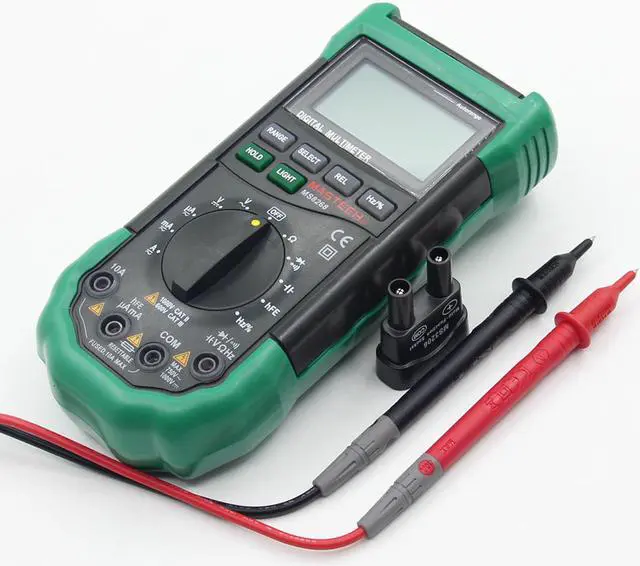

Mastech MS8268 Multimeter Digital Multimeter MS8261 MS8264 MS8265 MS8269 Electrical Measure Tool Current Resistance Capacitance Tester ( Model: MS8268 )

Description: This MS8268 is a fully featured digital multimeter. It is capable of most standard functions including AC/DC Voltage and Current, Resistance, Capacitance, Frequency, Temperature and more. It's also packed with many nice features, such as back light, data hold, reset table fuse. No matter you are a professional or just a DIYer, this is a great and affordable tool for your daily use.
Feature: - Built-resettable fuse protection - Red lights to show the correct terminals - Auto power off and low battery indication - Powered by 1.5V AAA battery*3 (NOT included) - Back-stand is included for convenient operation - Automatic indication of functions and unit symbols - Full overload protection and dual insulation protection - "Sleep mode", auto power off and low battery indication - The meter has both manual range and auto range switching - Data holding, to hold the readings while taking measurement - Display relative measurement in all functions except frequency - 2.4 inch digits LCD with backlight. (press LIGHT for backlight on) - Equipped with sound and light alarms against misconnection of test leads - Detachable overmolding ruber case, shake-proof, skid-proof and good touch-feeling - Measuring of hFE of transistor and capacitance by using the special multi-function socket for more accurate value -
Multi-functional: Including measurements of AC / DC voltage and current, resistance, capacitance, frequency, duty cycle, transistor, diode and continuity
test
Specification:
Material: ABS
Model: MS8268
Test Leads: 1KV 10A
Transistor hFE: 1 ~ 1000
Storage Humidity: below 80%
RH Capacitance: 20n/200n/2µ/20µF ± 4.0 %
Sampling Rate: approx. 3 times / second
Power: 1.5V AAA battery*3 (NOT included)
Frequency: 10/100/1000/10k/200kHz ± 2.0 %
Storage Temperature: -10 to 60°C (14 to 140° F)
Operating Temperature: 0 to 40°C (32 to 104°
F) Resistance: 400/4k/40k/400k/4MO ± 1.0 %, 40MO ± 2.0 %

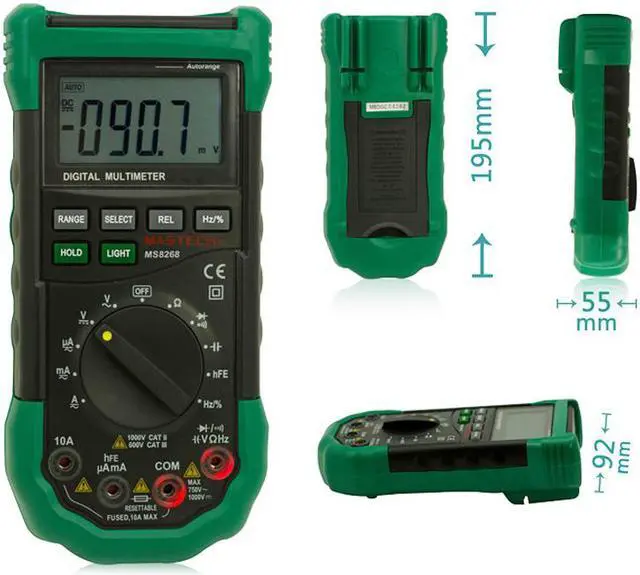

Operating Humidity: below 80% RH, <10°C non-condensin Safety Standards: IEC1010-1, CAT. III 600V & CAT. II 1000V DC voltage: 400mV/4V/40V/400V±(0.7%+2), 1000V±(0.8%+2) AC current: 2mA±(0.8%+20), 200mA±(1.2%+20), 10A±(2.5%+50) DC current: 400µA/4000µA/40mA/400mA±(1.2%+3), 10A±(2.0%+5) AC voltage: 400mV±(0.3%+3), 4V/40V/400V±(0.8%+3), 750V±(1.0%+3) Dimension / Weight: 195*92*55mm (7.68*3.62* 2.17 inch) / 380g

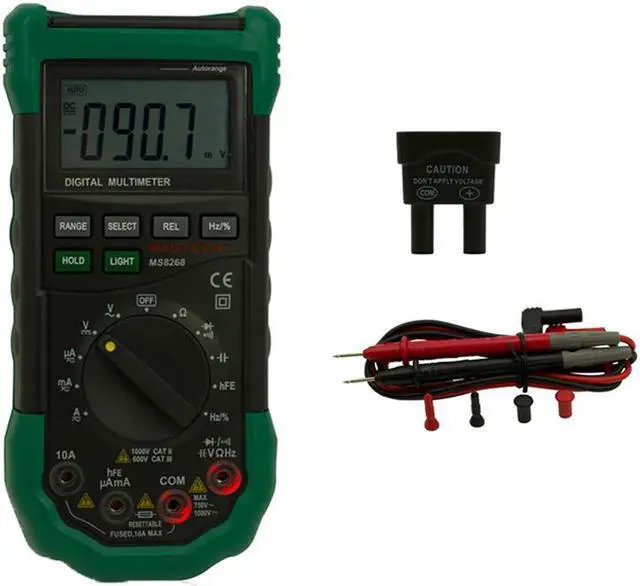

Packing List: Test Lead Cable*2 Multifunction Socket*1 MS8268 Digital Multimeter*1
About Shipping: Normally freeshipping orders will be sent by Registered Post from China. It usually takes about 16 days. But due to your Remote Location or Public Holiday or Big Promotion, Some parcels maybe need 25 or more days. However, our warranty will cover all orders, if package is lost or returned, we will resend new or full refund to you. so please just be patiently waiting for the orders. if you are hurry to recieve any product, we advice you can choose local market, Thanks for your understanding!
