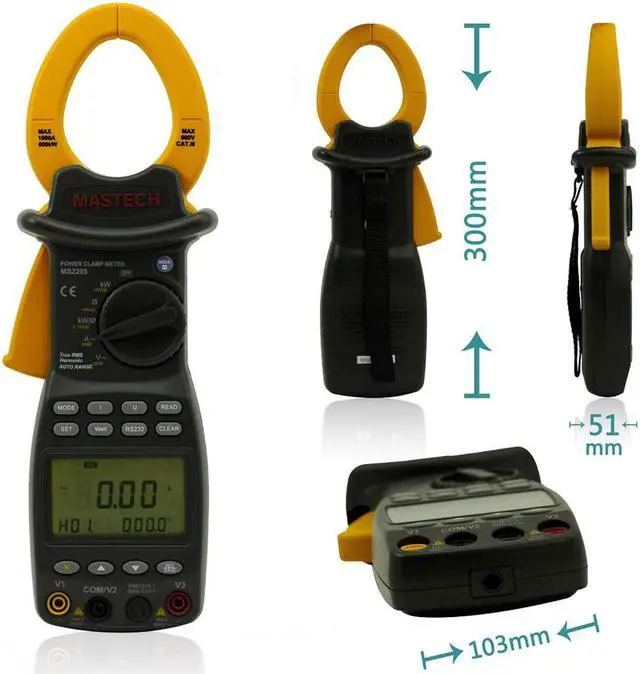

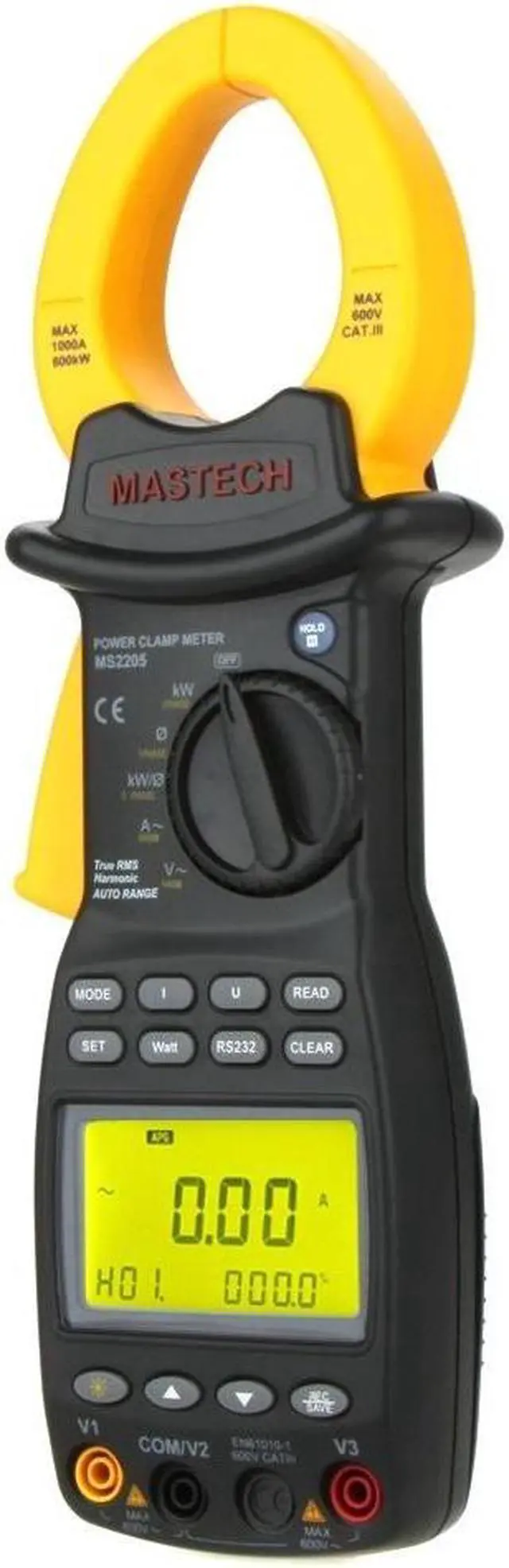

MASTECH MS2205 Digital Power Clamp Meter Three Phase Harmonic Tester with RS232 Interface MASTECH MS2205

Description
MASTECH MS2205 3 Phase TRMS Digital Energy Clamp Meter Power Factor Correction Meter Harmonic Tester

Specifications

:
AC Voltage: 0.1 ~600V ±( 1.2 %+5)
AC Current: 0.1A ~1000A ±( 2.0 %+5)
Active Power: 0.1 kW~600kW ±( 3.0 %+5)
Apparent power: 0.1 kVA~600kVA ±( 3.0 %+5)
Reactive power: 0.1 kVAr~600kVAr: ±( 3.0 %+5)
Power Factor: 0.3 ~1 ±( 2.0 %+2)
Harmonic Measurement: 45Hz~65Hz (fundamental frequency)
Harmonic NO. 1 ±( 3.0 %+10)
Harmonic NO. 2-6 ±( 3.5 %+10)
Harmonic NO. 7-8 ±( 4.5 %+10)
Harmonic NO. 9-10 ±( 5.0 %+10)
Harmonic NO. 11-15 ±( 7.0 %+10)
Harmonic NO. 16-20 ±(10%+10)

Feature:
Auto Power Off:
Auto Ranging:
Data Hold:
Display Back Light:
Rs232 Interface:

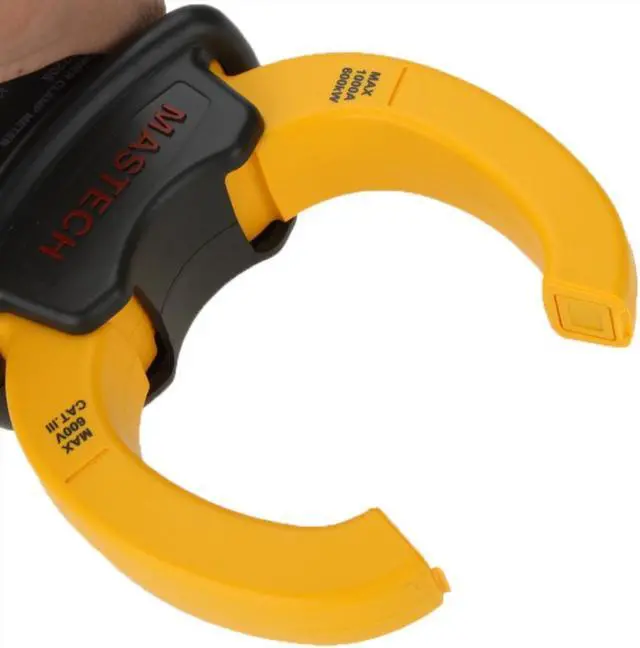

Jaw opening R50mm/ 2.0
Data logging And recall 100groups
LBD Low Battery indication
True RMS True Root Mean Square Measurement
Display 6000 counts

General:
Power Supply 4 x 1.5V AA Battery (Not Included)
Category CE CAT. III 600V RoHS
Package size: 33 * 22 * 6cm / 13.2 * 8.8 * 2.4 in
Package weight: 1450g / 3.2 lb

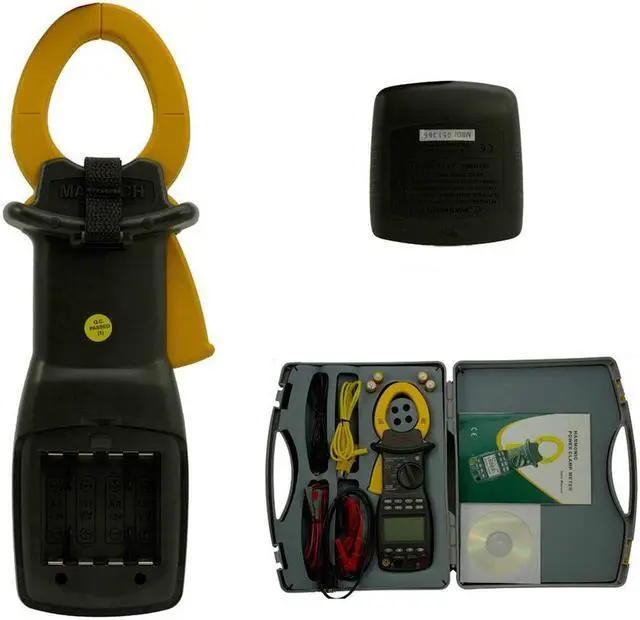

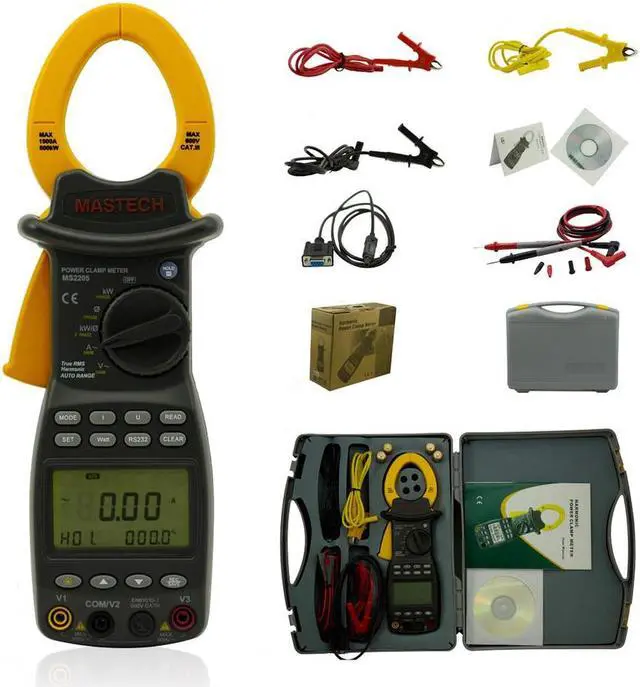

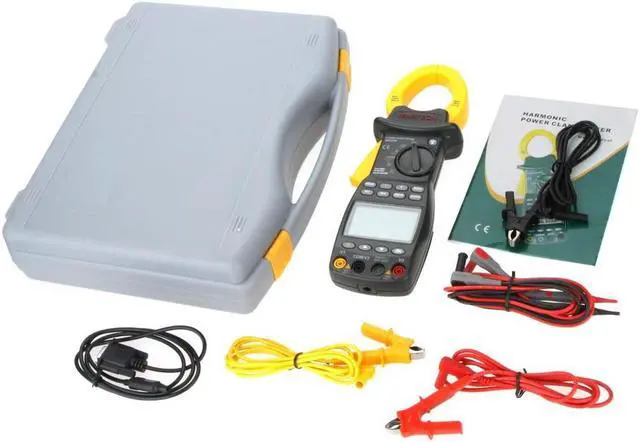

Package list
1 * HYELEC MS2205 Clamp Meter AC RMS Active Power Factor Passive Frequency Harmonic Test
1 * Portable Bag
1 * Test Probe
3 * Test Clip
1 * Rs232 Interface Cable
1 * CD
1 * English Instructions
