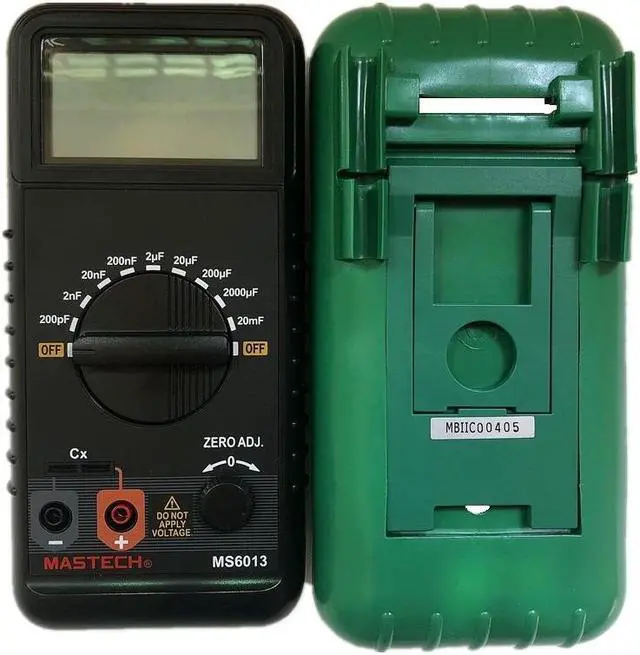

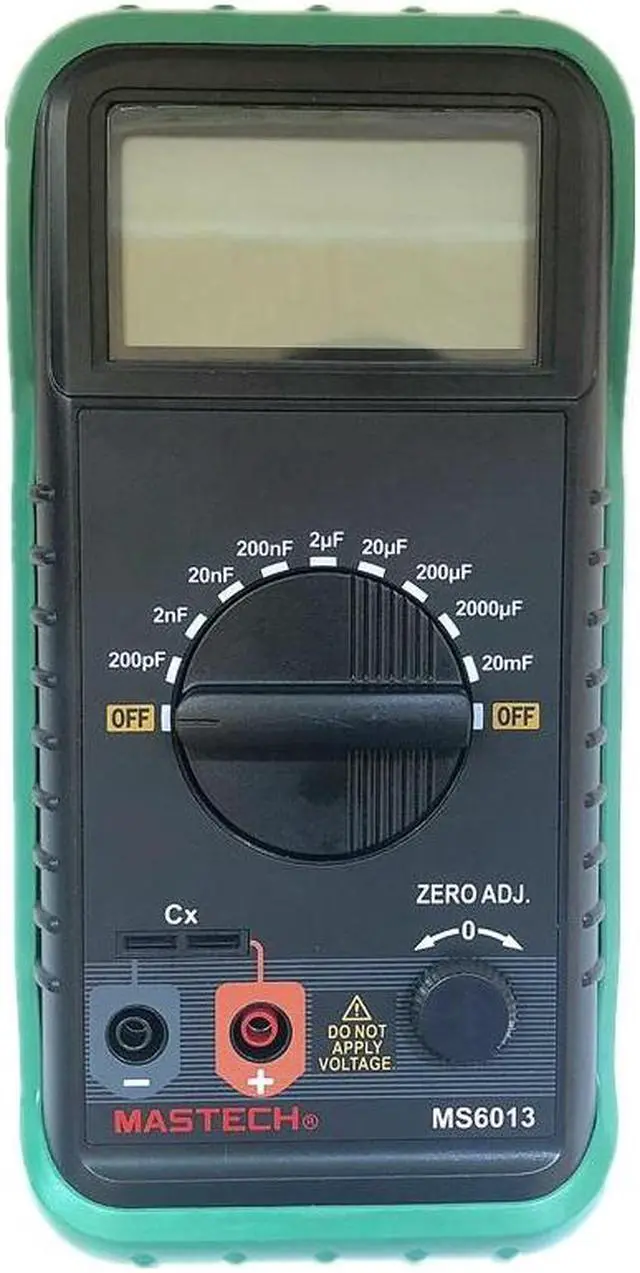

MASTECH MS6013 Portable 3 1/2 Digital Capacitance Meter Capacitor Tester 200pF to 20mF MASTECH MS6013

Introduction

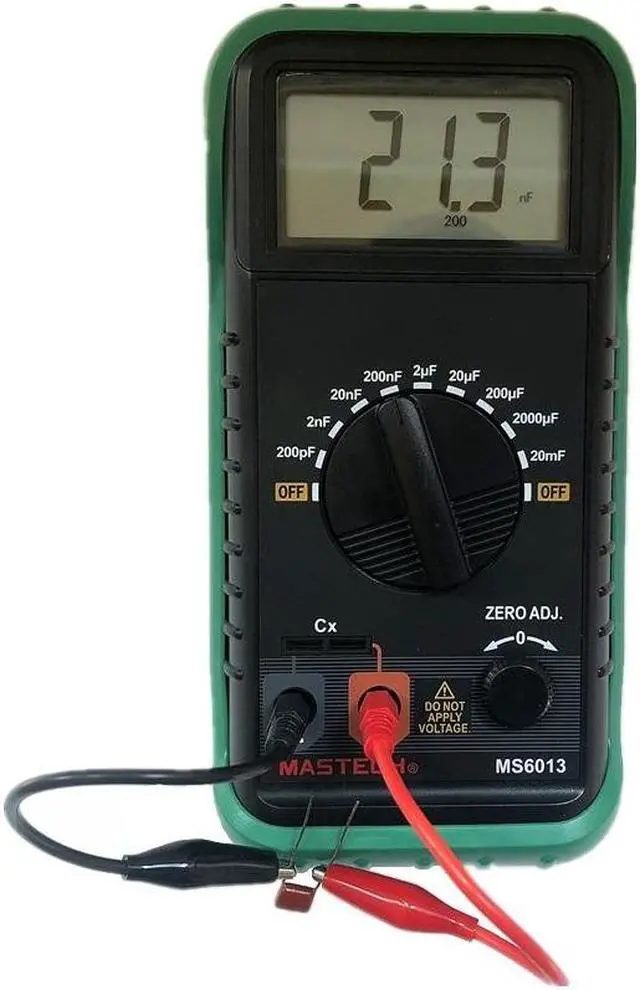

This Digital Capacitance Meter gives a direct reading of capacitance on a 3 1/2 digits LCD display. Nine ranges give precision readings from 0.1 pF to 20mF, which includes virtually all capacitors used in electronic engineering laboratory, production, service shops and schools. Its battery operation, light weight, and small size make it a truly portable instrument.



Features
* 21mm LCD display provided. MAX indication 1999.
* 9 Ranges form 200pF to 20mF.
* High accuracy in measuring.
* External knob adjustment of the zero value of the display, approx ± 20pf.
* Dual? Slope integration A/D converter.
* Overload indication of " 1 ".

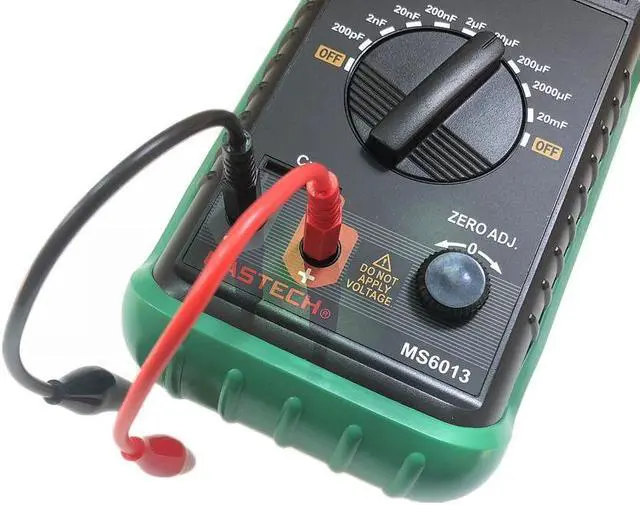

* Safety designed test probe.
* Size: 31.5 mm 91mm 189mm ( H W L).
* Weight: 240g ( including battery ).

Specifications

Accuracy is specified for a period of one year after calibration and at 18°C to 28°C (64°F to 82°F) with relative humidity to 80%.
1.
Power Supply: 9V battery NEDA 1604 or 6F22 006P
2.
Low Battery Indication: appears on the display
3.
Fuse Protection: 100mA/250V
4.
Excitation Vol Tage: 2.8V peak, MAX
5.
Operating Temperature: 0°C to 40°C ( 32°F to 104°F)
6.
Storage Temperature: - 10°C to 50°C ( 14°F to 122°F)

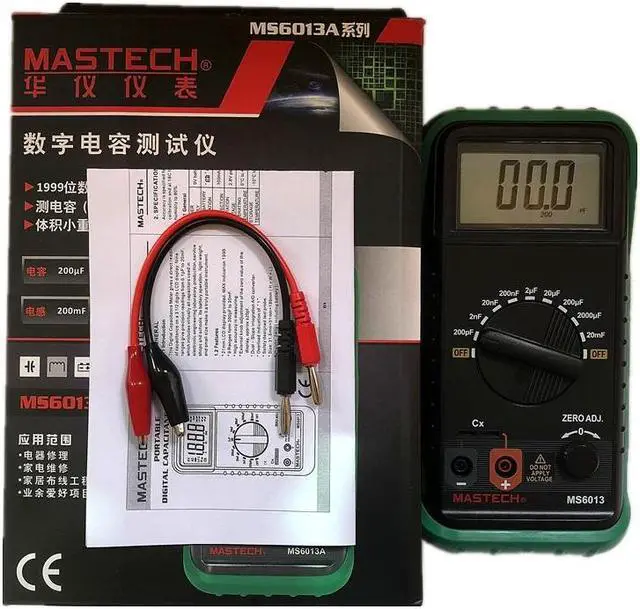

Package includes:
1 x MS6013 Capacitance Meter
1 x Set test leads
1 x User manual
