MASTECH MS6700 Industrial Grade LCD Digital Display Digital Sound Level Meter Noise Meter DB Meter Automatic Range 30dB ~ 130dB MASTECH MS6700
- Features:
- Maximum locked.
- Clock and calendar functions.
- Background light in the night work.
- Appropriate recognition rate selection: fast / slow
- Measuring range from 30dB to 130dB and automatic range.
- With two equivalent weighted sound pressure level, A, and C.
- Instrument in accordance with IEC651 2 type, ANSI S1.4 2 designs.

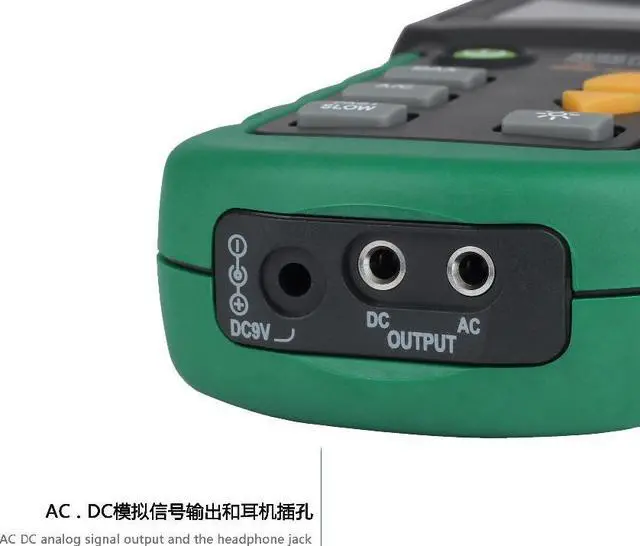

- AC and DC output analog signal, which can be linked to a frequency analyzer or XY axis recorder.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now

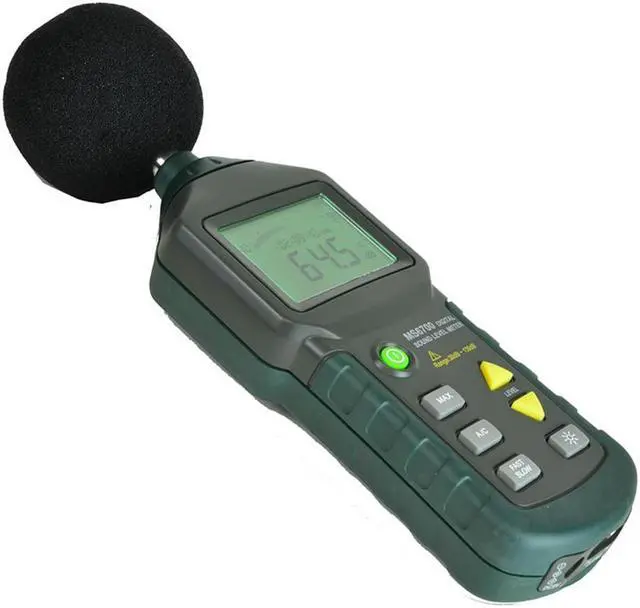

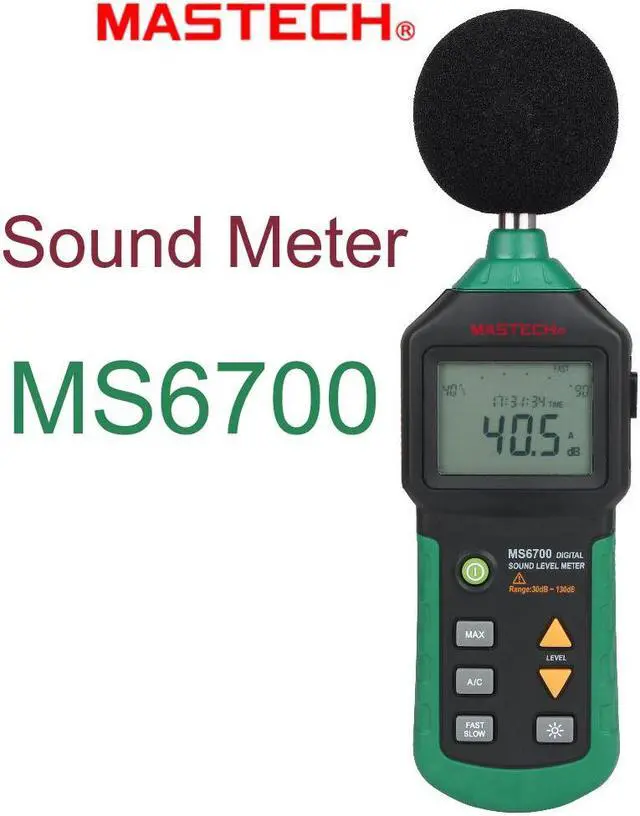

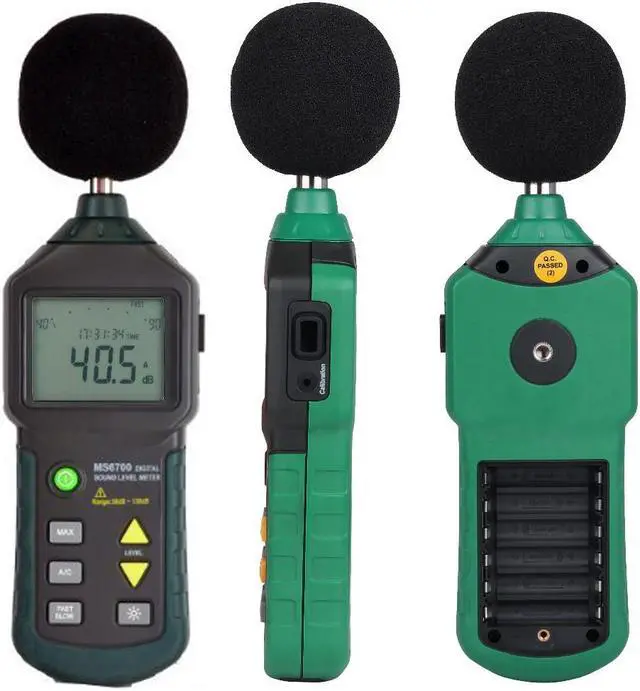

MasTech MS6700 Digital Sound Level Meter Auto Range 30dB to 130dB Industrial Grade Noise Meter DB Sound Meter
Description:
MS6700 sound level meter is an instrument for the measurement of environmental sound level: such as factories, workshops, schools, residential, office area, traffic, audio and other occasions of sound level. Also applies to the noise of engineering, quality control, health prevention etc..
Hightlight:
Sound Level Range: 30dB~130dB
LCD digital display
Anolog bar indicator
Wide dynamic range
Auto/Manual range
Fast/Slow response selectable
MAX value hold function
A/C weighting selection
Date and time display
AC/DC auxilitary output
Back light and Auto Power Off
Low power indication
Features:
Maximum locked.
Clock and calendar functions.
Background light in the night work.
Appropriate recognition rate selection: fast / slow
Measuring range from 30dB to 130dB and automatic range.
With two equivalent weighted sound pressure level, A, and C.
Instrument in accordance with IEC651 2 type, ANSI S 1.4 2 designs.
AC and DC output analog signal, which can be linked to a frequency analyzer or XY axis recorder.
Model: MS6700
Accuracy: 2dB
Resolution: 0.1 dB
Housing: Positive
Pin: Ground socket
Humidity: 10% to 80% RH
External diameter: 3.5 mm
Frequency weighting: A/C
Dynamic range ratio: 50dB
Sampling rate: 2 times/sec
Digital Display: 4 digitals
Operating temperature: 0 to 40 C
Frequency response: 31.5HZ -8kHz's
Voltage Ripple: Supply Current: > 100mADC

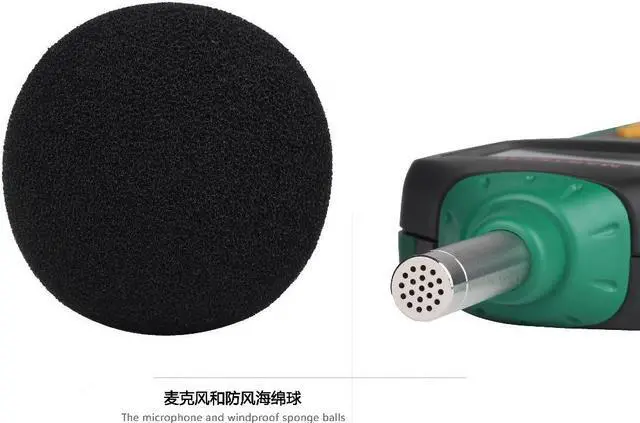

Microphone: electret condenser microphone
Time-weighted: FAST is 125ms, 1 second slower
Storage humidtiy: 10% to 70% relative humidity
DC signal output: 10mV/dB, the output impedance approx. 100ohm
Dimensions/Weight: L265*80W*H69MM/ 10.4 * 3.2 * 2.7 inch/320g( 0.7 LB)
Auto Range: microcomputers can choose the best measurement range
Power supply: 1.5V AAA alkaline battery*6 (NOT included in package)
Analog bar display: Each analog bar is 1 db, the sampling rate of 20 times / s
Measuring range: 6 Range: 30-80dB / 40-90dB/50-100dB/60-110dB/70-120dB/80-130dB
AC output: 0.707 Vrms of FS (not including auto range mode), output
impedance: approx. 600ohm
Package List:
Windshield*1
Operation Manual*1
MS6700 Sound Level Meter*1
Description:
MS6700 sound level meter is an instrument for the measurement of environmental sound level: such as factories, workshops, schools, residential, office area, traffic, audio and other occasions of sound level. Also applies to the noise of engineering, quality control, health prevention etc..
Hightlight:
Sound Level Range: 30dB~130dB
LCD digital display
Anolog bar indicator
Wide dynamic range
Auto/Manual range
Fast/Slow response selectable
MAX value hold function
A/C weighting selection
Date and time display
AC/DC auxilitary output
Back light and Auto Power Off
Low power indication
Features:
Maximum locked.
Clock and calendar functions.
Background light in the night work.
Appropriate recognition rate selection: fast / slow
Measuring range from 30dB to 130dB and automatic range.
With two equivalent weighted sound pressure level, A, and C.
Instrument in accordance with IEC651 2 type, ANSI S 1.4 2 designs.
AC and DC output analog signal, which can be linked to a frequency analyzer or XY axis recorder.

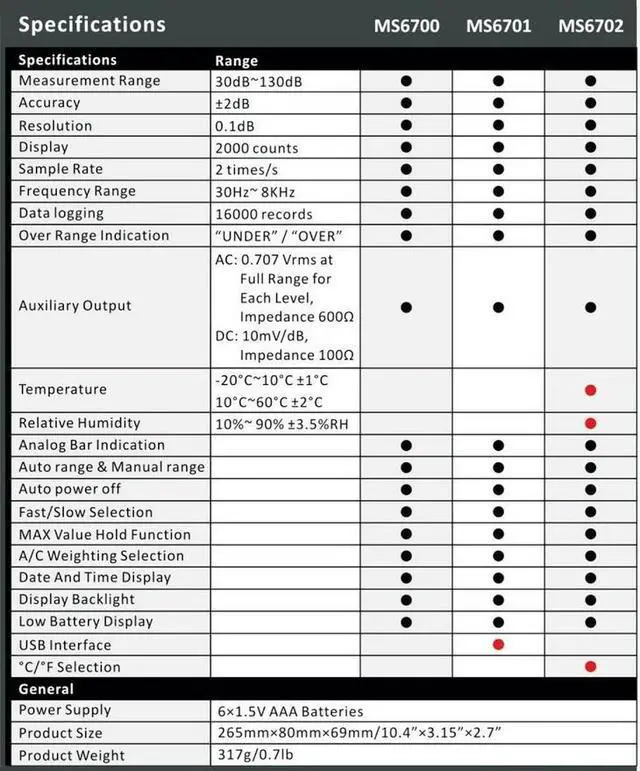

Specifications
Model: MS6700
Accuracy: 2dB
Resolution: 0.1 dB
Housing: Positive
Pin: Ground socket
Humidity: 10% to 80% RH
External diameter: 3.5 mm
Frequency weighting: A/C
Dynamic range ratio: 50dB
Sampling rate: 2 times/sec
Digital Display: 4 digitals
Operating temperature: 0 to 40 C
Frequency response: 31.5HZ -8kHz's
Voltage Ripple: Supply Current: > 100mADC
Microphone: electret condenser microphone
Time-weighted: FAST is 125ms, 1 second slower
Storage humidtiy: 10% to 70% relative humidity
DC signal output: 10mV/dB, the output impedance approx. 100ohm
Dimensions/Weight: L265*80W*H69MM/ 10.4 * 3.2 * 2.7 inch/320g( 0.7 LB)
Auto Range: microcomputers can choose the best measurement range
Power supply: 1.5V AAA alkaline battery*6 (NOT included in package)
Analog bar display: Each analog bar is 1 db, the sampling rate of 20 times / s
Measuring range: 6 Range: 30-80dB / 40-90dB/50-100dB/60-110dB/70-120dB/80-130dB
AC output: 0.707 Vrms of FS (not including auto range mode), output
impedance: approx. 600ohm
Package List:
Windshield*1
Operation Manual*1
MS6700 Sound Level Meter*1
