MASTECH MS7221 Volt/mA Source Voltage Current Calibrator Meter Output Step DC 0-10V 0-24mA Tester MASTECH MS7221
- Features:
- Display: 88888 counts.
- Measure loop current signals with very high accuracy of 0.015% and 1uA resolution.
- Measure voltage output process signals from PLCs, transmitters.
- Source or simulate 24 mA loop current .
- Source voltage to 100 mV or 10V.
- 24V loop supply with simultaneous current measurement.
- Outstanding perfermance, best quality with suitable price.
- It cannot be used to measurement and export simultaneously.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Description

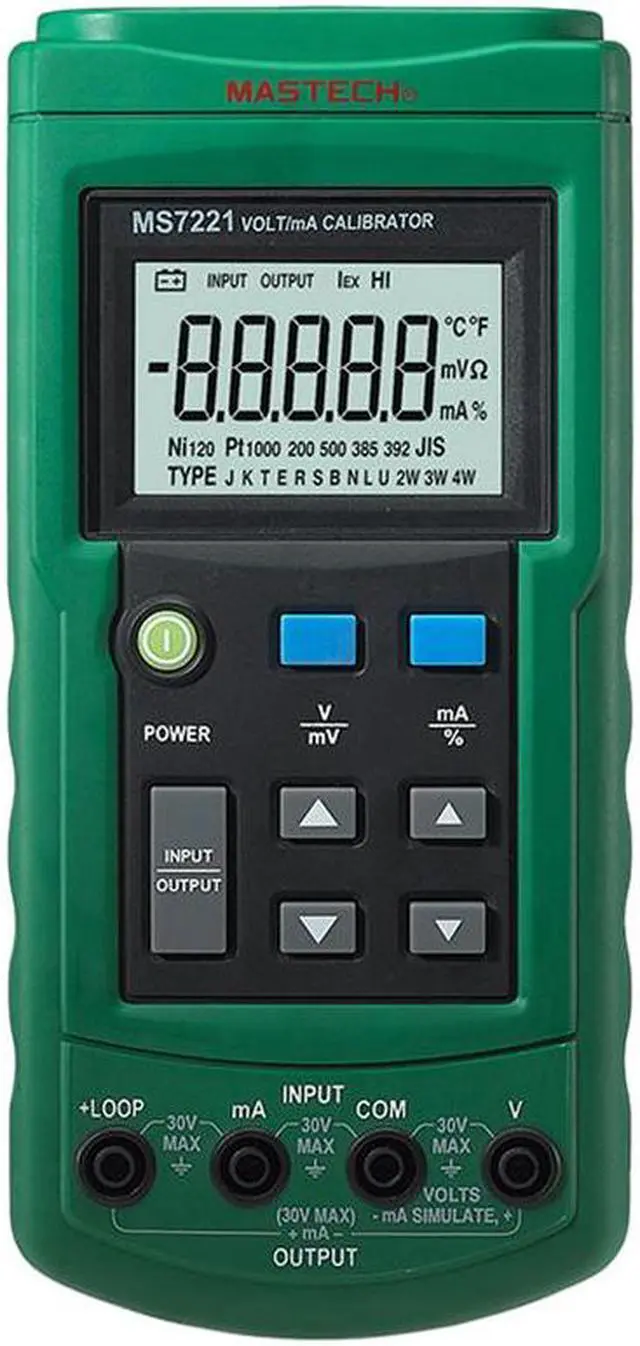

MASTECH MS7221 Volt/mA Source Voltage Current Calibrator Meter Output Step DC 0-10V 0-24mA Tester
MS7221 Volt/mA Calibrator is a source and measurement tool. This calibrator can be used in measurement output 0 to 24 mA DC current loop, and 0 to 10V DC voltage. But the calibrator cannot be used to measurement and source simultaneously.
Features:
Display: 88888 counts.
Measure loop current signals with very high accuracy of 0.015 % and 1uA resolution.
Measure voltage output process signals from PLCs, transmitters.
Source or simulate 24 mA loop current.
Source voltage to 100 mV or 10V.
24V loop supply with simultaneous current measurement.
Outstanding perfermance, best quality with suitable price.
It cannot be used to measurement and export simultaneously.

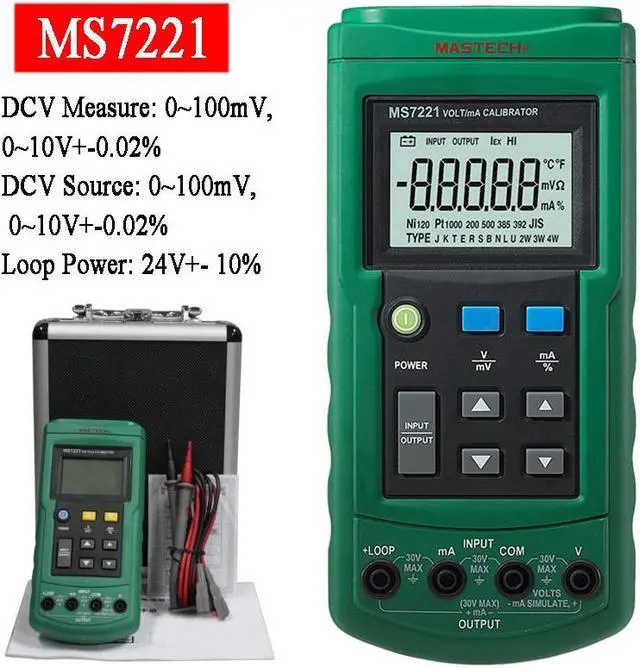

DCV Measure: 0~100mV, 0~10V+- 0.02 %
DCV Source: 0~100mV, 0~10V+- 0.02 %
DCmA Measure(% of span): 0~24 mA +- 0.015 %
DCmA Source(% of span): 0~24 mA +- 0.015 %
Loop Power: 24V+- 10%
Power requirements: 9VDC, 006P or 1604A

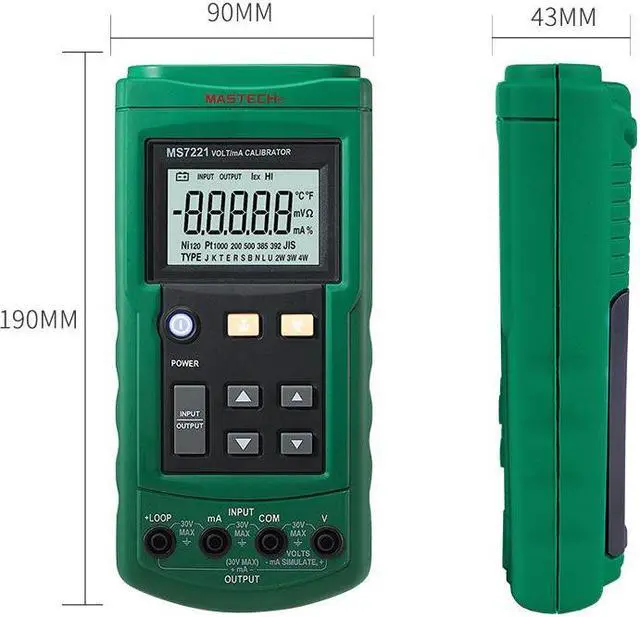

Size: 19 * 9.0 * 4.3 cm
Weight: 367g
Case size: 23 * 18 * 8cm
Total weight: 1027g
Package Includes:
1 * MASTECH MS7221 Meter
2 * Test Leads
1 * Carrying Case
1 * User Manual
This product does not included batteries200
MASTECH MS7221 Volt/mA Source Voltage Current Calibrator Meter Output Step DC 0-10V 0-24mA Tester
MS7221 Volt/mA Calibrator is a source and measurement tool. This calibrator can be used in measurement output 0 to 24 mA DC current loop, and 0 to 10V DC voltage. But the calibrator cannot be used to measurement and source simultaneously.
Features:
Display: 88888 counts.
Measure loop current signals with very high accuracy of 0.015 % and 1uA resolution.
Measure voltage output process signals from PLCs, transmitters.
Source or simulate 24 mA loop current.
Source voltage to 100 mV or 10V.
24V loop supply with simultaneous current measurement.
Outstanding perfermance, best quality with suitable price.
It cannot be used to measurement and export simultaneously.

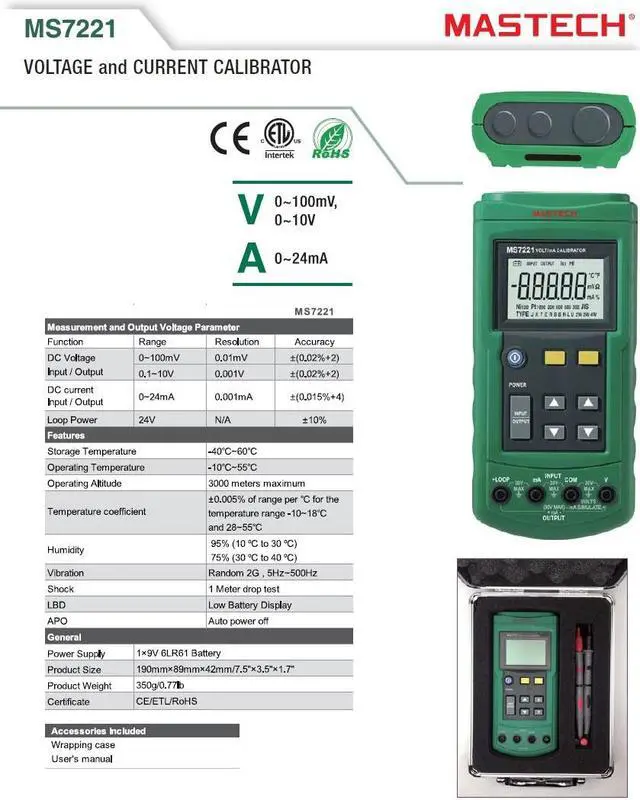

Specifications
:DCV Measure: 0~100mV, 0~10V+- 0.02 %
DCV Source: 0~100mV, 0~10V+- 0.02 %
DCmA Measure(% of span): 0~24 mA +- 0.015 %
DCmA Source(% of span): 0~24 mA +- 0.015 %
Loop Power: 24V+- 10%
Power requirements: 9VDC, 006P or 1604A
Size: 19 * 9.0 * 4.3 cm
Weight: 367g
Case size: 23 * 18 * 8cm
Total weight: 1027g
Package Includes:
1 * MASTECH MS7221 Meter
2 * Test Leads
1 * Carrying Case
1 * User Manual
This product does not included batteries200
