Mastech MS8268 Digital AC/DC Auto/Manual Range Digital Multimeter with hFE,Data Hold,Relative Measurement and Auto Power Off Mastech MS8268

Original Mastech MS8268 Multimeter Digital Multimeter MS8265 Electrical Measure Tool Current Resistance Capacitance Tester (
Model: MS8268 )

Mastech MS8268
2.4 inch digital LCD
Diode test/Continuity test
Professional Measuring Multimeter
Application: Office, Industrial, Education, Home Tool

Description:
This MS8268 is a fully featured digital multimeter. It is capable of most standard functions including AC/DC Voltage and Current, Resistance, Capacitance, Frequency, Temperature and more. It's also packed with many nice features, such as back light, data hold, reset table fuse. No matter you are a professional or just a DIYer, this is a great and affordable tool for your daily use.

Function:
- Manual & Auto ranges
- Full overload protection
- Duty Cycle Measurement
- Relative value measurement
- Misconnection alarm system
- Audible warning for over-range

Feature:
- Built-resettable fuse protection
- Red lights to show the correct terminals
- Auto power off and low battery indication
- Powered by 1.5V AAA battery*3 (NOT included)
- Back-stand is included for convenient operation
- Automatic indication of functions and unit symbols
- Full overload protection and dual insulation protection
- "Sleep mode", auto power off and low battery indication
- The meter has both manual range and auto range switching
- Data holding, to hold the readings while taking measurement
- Display relative measurement in all functions except frequency
- 2.4 inch digits LCD with backlight. (press LIGHT for backlight on)
- Equipped with sound and light alarms against misconnection of test leads
- Detachable overmolding ruber case, shake-proof, skid-proof and good touch-feeling
- Measuring of hFE of transistor and capacitance by using the special multi-function socket for more accurate value
- Multi-functional: Including measurements of AC / DC voltage and current, resistance, capacitance, frequency, duty cycle, transistor, diode and continuity test

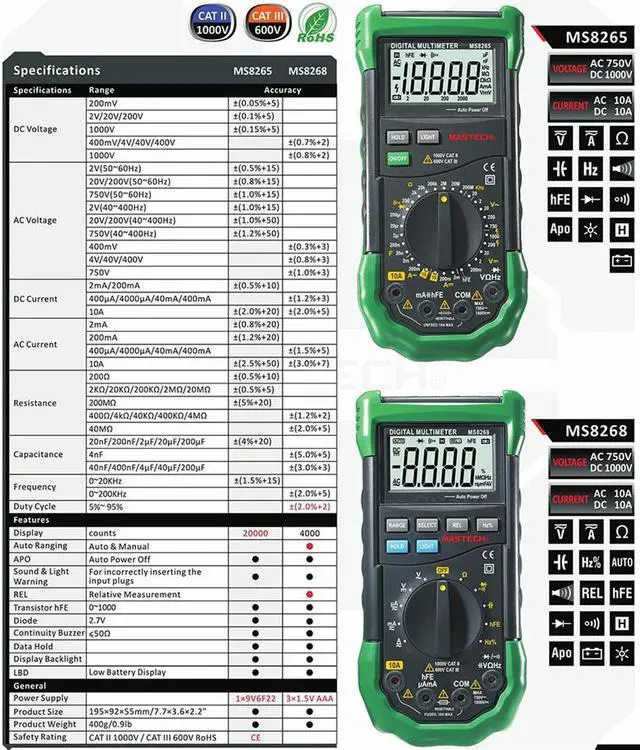

Specification:
Material: ABS
Model: MS8268
Test Leads: 1KV 10A
Transistor hFE: 1 ~ 1000
Storage Humidity: below 80% RH
Capacitance: 20n/200n/2/20F ± 4.0 %
Sampling Rate: approx. 3 times / second
Power: 1.5V AAA battery*3 (NOT included)
Frequency: 10/100/1000/10k/200kHz ± 2.0 %
Storage Temperature: -10 to 60°C (14 to 140° F)
Operating Temperature: 0 to 40°C (32 to 104° F)
Resistance: 400/4k/40k/400k/4MO ± 1.0 %, 40MO ± 2.0 %
Operating Humidity: below 80% RH, <10°C non-condensin
Safety Standards: IEC1010-1, CAT. III 600V & CAT. II 1000V
DC voltage: 400mV/4V/40V/400V±( 0.7 %+2), 1000V±( 0.8 %+2)
AC current: 2mA±( 0.8 %+20), 200mA±( 1.2 %+20), 10A±( 2.5 %+50)
DC current: 400A/4000A/40mA/400mA±( 1.2 %+3), 10A±( 2.0 %+5)
AC voltage: 400mV±( 0.3 %+3), 4V/40V/400V±( 0.8 %+3), 750V±( 1.0 %+3)

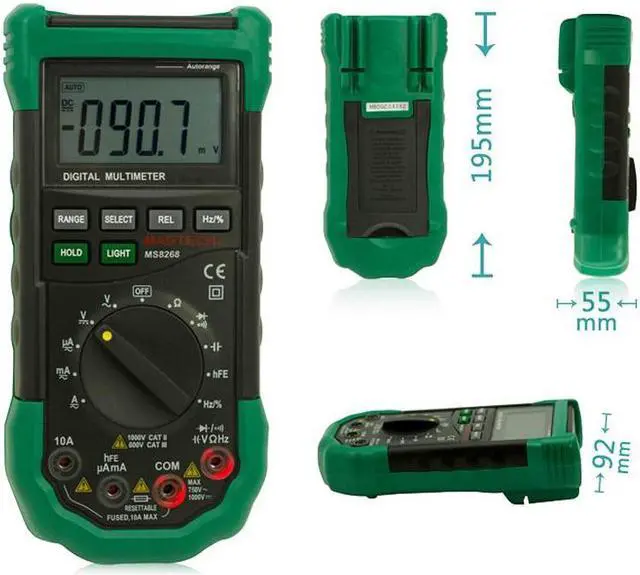

Dimension / Weight: 195*92*55mm ( 7.68 * 3.62 * 2.17 inch) / 380g

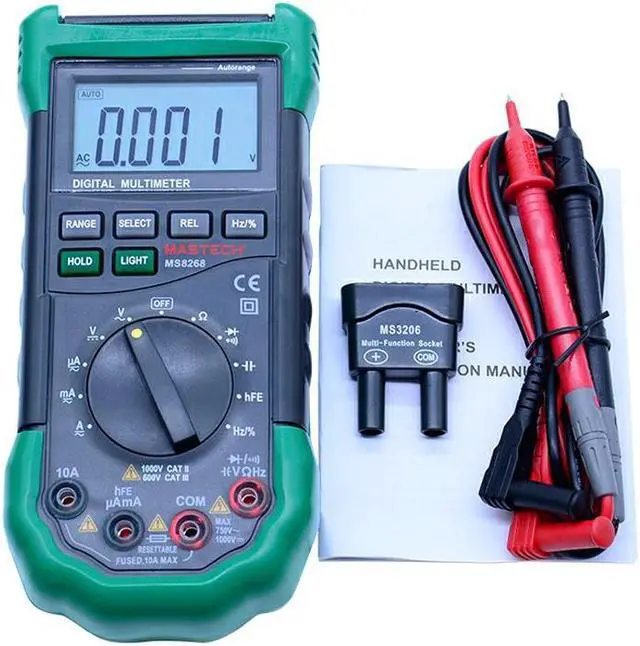

Packing List:
Test Lead Cable*2
Multifunction Socket*1
MS8268 Digital Multimeter*1
