NOYAFA NF-5102 3-in-1 Wall Detector - Stud Finder with Metal, Wood & Live AC Wire Scanner, HD Backlit Dial Display, Rechargeable 390mAh Battery, IP54 Water/Dust Proof, Center Positioning & Audible Ala

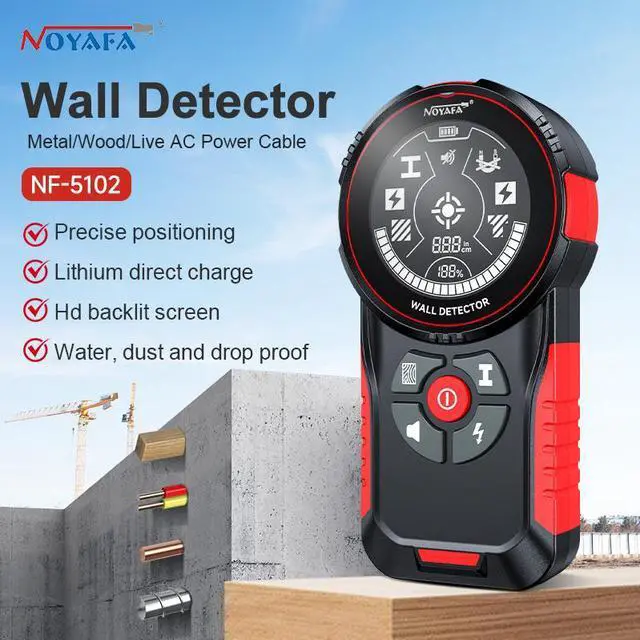

NOYAFA NF-5102 3-in-1 Wall Detector - Stud Finder with Metal, Wood & Live AC Wire Scanner

1. 3-in-1 Multi-Mode Detection
2. High-Precision Anti-Interference Chip
3. HD Dial Backlit Screen
4. Center Positioning with Audible Alarm
5. Rechargeable 390mAh Battery
6. Type-C Charging & Auto Shut-Off
7. IP54 Water, Dust & Drop Proof

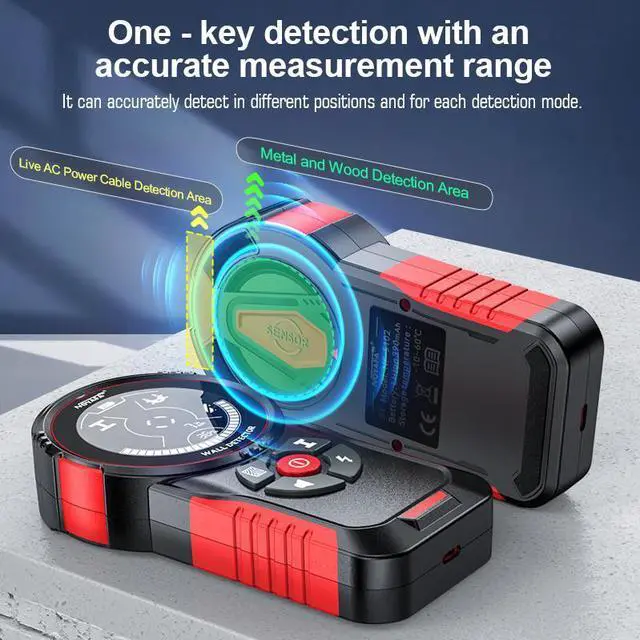

Detection Depths

1. Magnetic Metal: 100 mm (3.94 in)
2. Non-Magnetic Metal: 80 mm (3.15 in)
3. Live AC Power Cable: 50 mm (1.97 in)
4. Wood Stud / Joist: 30 mm (1.18 in)

Key Features at a Glance

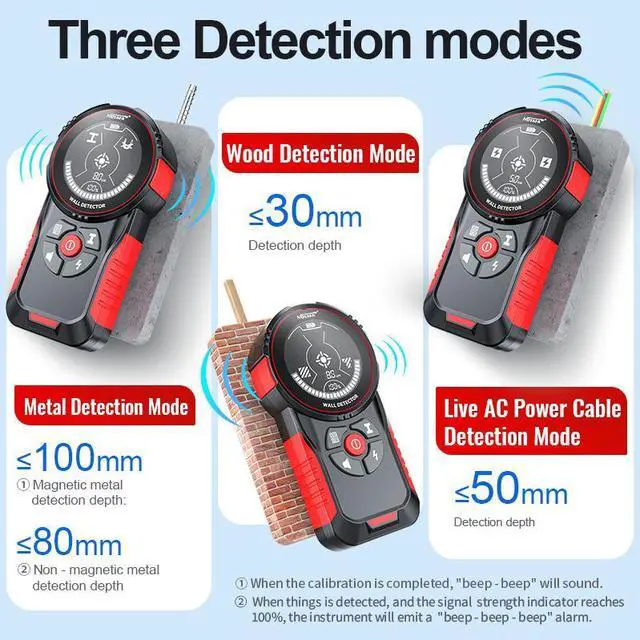

1. 3-in-1 Detection Modes: Metal, Live AC Wire, Wood Stud

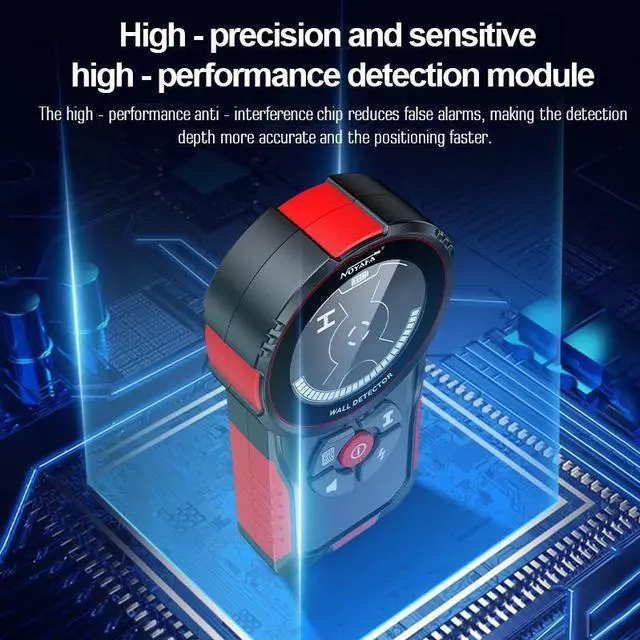

2. Anti-Interference Chip: Reduces false alarms, improves accuracy

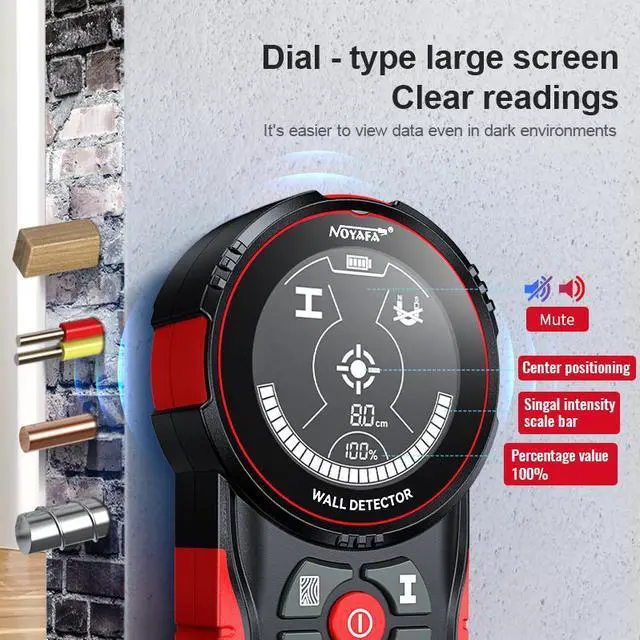

3. HD Dial Backlit VA Screen: Clear readings in dark environments
4. Center Positioning: Visual 100% indicator with audible beep
5. Mute Function: One-touch sound on/off for quiet operation
6. Auto Calibration: Beeps twice when ready, simple to use

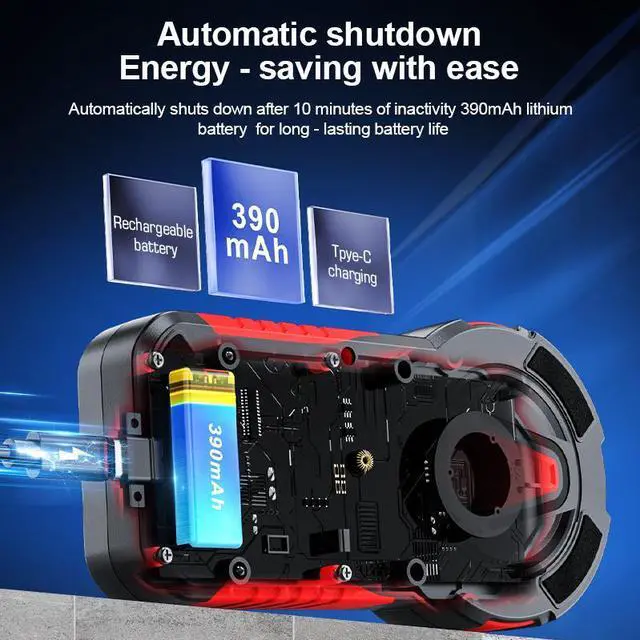

7. Rechargeable Battery: 390mAh lithium polymer, Type-C charging
8. Energy Saving: Auto shutdown after 10 minutes of inactivity
9. Durable Build: IP54 rated water, dust, and drop resistant
10. Compact & Lightweight: 152g, 142 x 73 x 28 mm

Technical Specifications

1. Brand: NOYAFA
2. Model: NF-5102

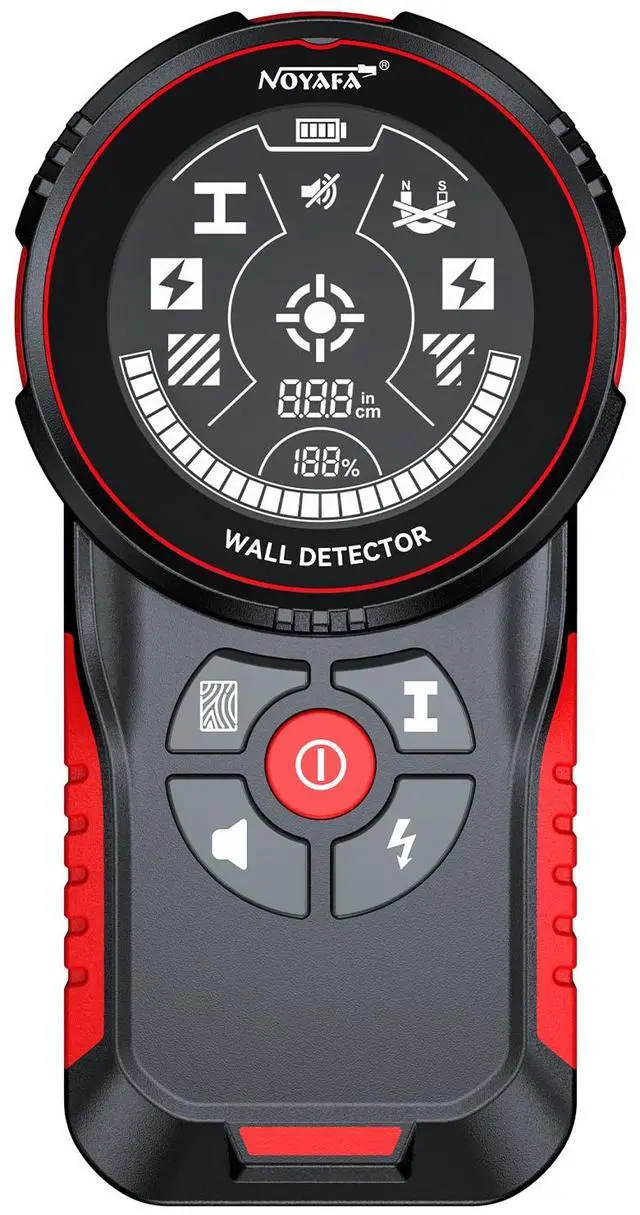

3. Display: VA LCD with Dial Interface & Backlight
4. Detection Functions: Metal (Magnetic/Non-Magnetic), Live AC, Wood
5. Magnetic Metal Max Depth: 100 mm
6. Non-Magnetic Metal Max Depth: 80 mm
7. AC Live Wire Max Depth: 50 mm
8. Wood Stud Max Depth: 30 mm
9. Battery: 3.7V 390mAh Li-Polymer Rechargeable
10. Charging Port: Type-C (DC 5V/1A)
11. Auto Shut-Off: After 10 minutes inactivity
12. Protection Rating: IP54
13. Operating Temp: 0°C to 50°C (32°F to 122°F)
14. Storage Temp: -10°C to 60°C (14°F to 140°F)
15. Dimensions: 142 x 73 x 28 mm (5.6 x 2.9 x 1.1 in)
16. Weight: 152g (0.34 lbs)

What's Included

1. 1 x NOYAFA NF-5102 Wall Detector Host
2. 1 x Type-C Charging Cable
3. 1 x User Manual
4. 1 x Certificate of Conformity
5. 1 x Lithium Battery Precautions Card
6. 1 x Premium Color Box

Ideal Applications

1. Locating studs before mounting TVs or shelves
2. Detecting metal pipes and rebar before drilling
3. Finding live AC wiring to avoid electrical hazards
4. Home renovation, plumbing, electrical, and DIY projects

Note

For best accuracy, calibrate the device flat against the wall surface. High humidity, metallic wallpaper, or fresh paint may affect sensor performance. Refer to the user manual for detailed operating instructions.
