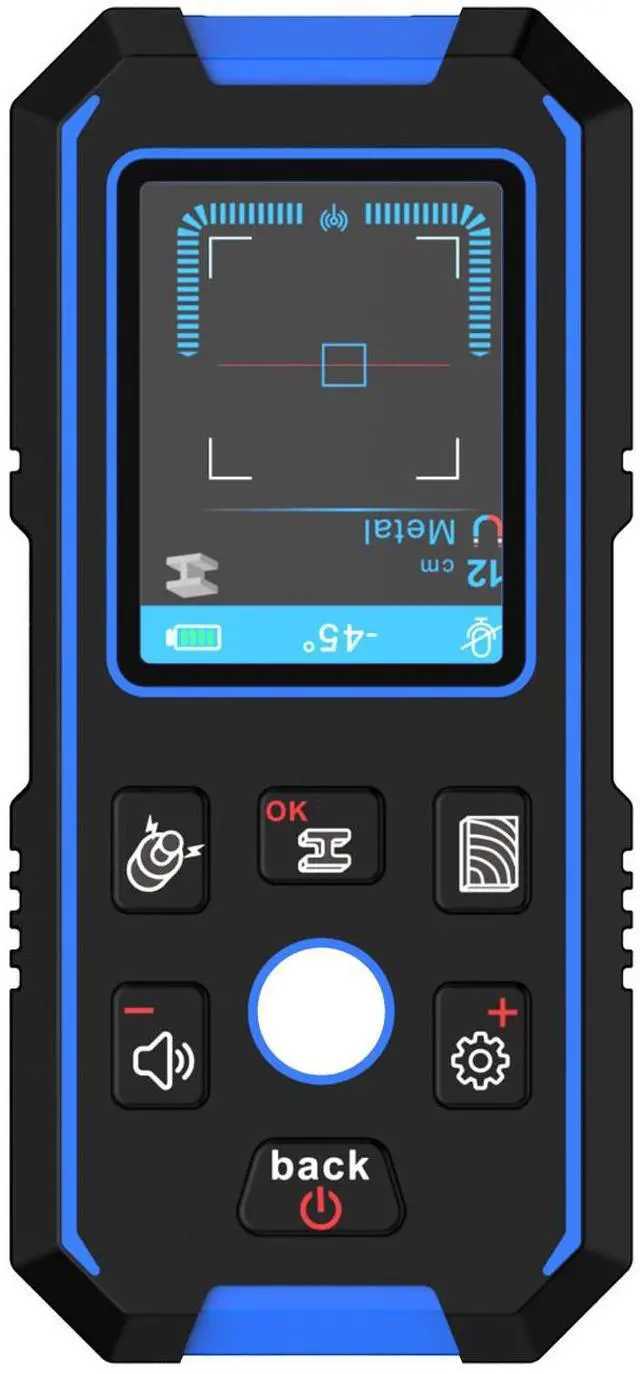

NF-518 Multifunctional Wall Detector 5-in-1 Metal / Wood / AC Live Wire Scanner, 120mm Magnetic Metal Depth, HD Color Display, Live Voice Broadcast, Type-C Rechargeable Ideal for Drywall, Floor

The NF-518 Multifunctional Wall Detector is a professional-grade handheld scanner designed to help you locate hidden objects behind walls, ceilings, and floors with confidence. Whether you are drilling, renovating, or installing fixtures, this tool prevents accidental damage by accurately detecting metals, live wires, and wooden studs.

Key Features:

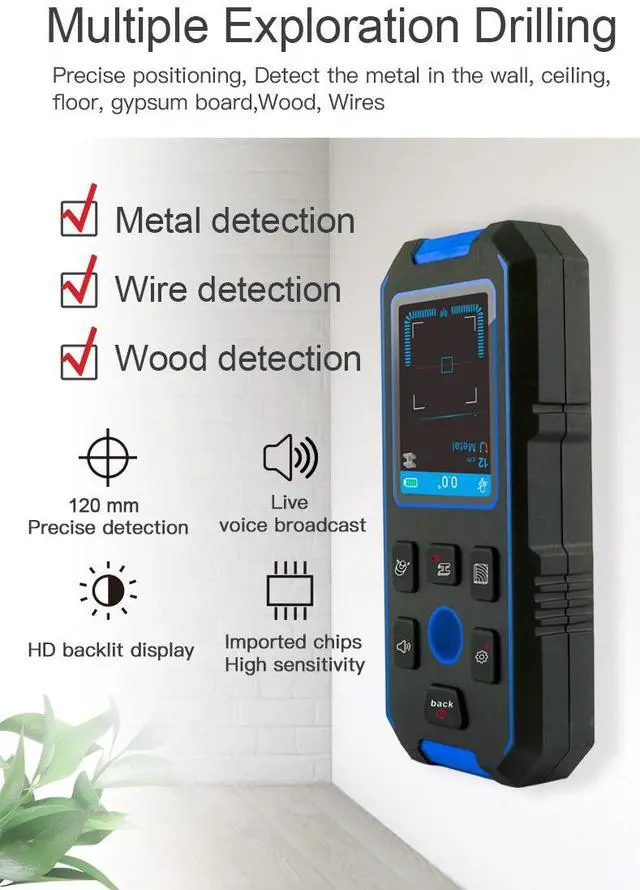

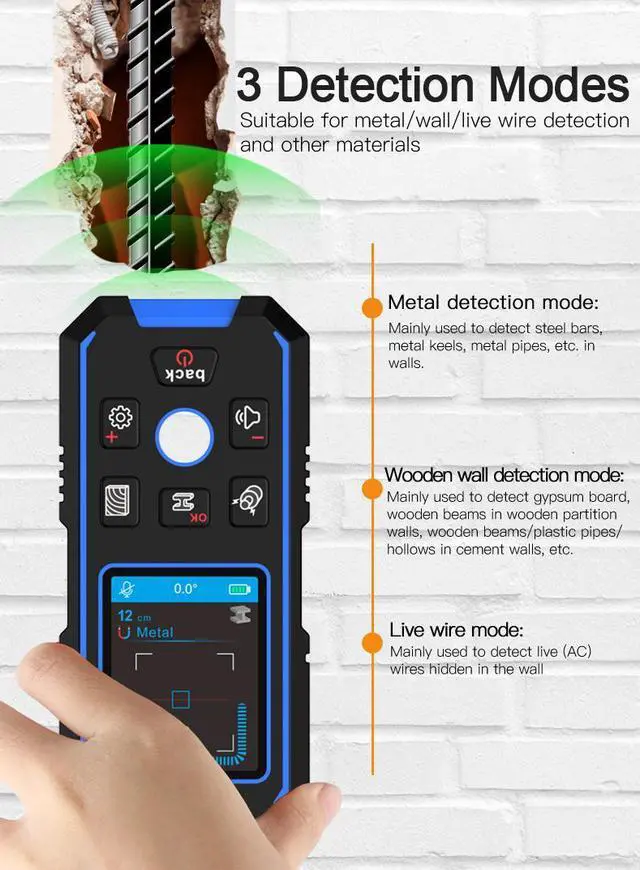

1. Three Core Detection Modes:
2. Metal Detection Mode: Detects magnetic metals (e.g., steel bars) and non-magnetic metals (e.g., copper pipes).
3. Wood Detection Mode: Ideal for finding wooden studs, plasterboard, plywood, and hollows.
4. AC Live Wire Mode: Safely identifies live wires hidden in walls.
5. Accurate Positioning & Depth Indication:
6. The device displays signal strength and estimated depth. The center mark lights up when the target is directly under the sensing area, ensuring precise positioning.

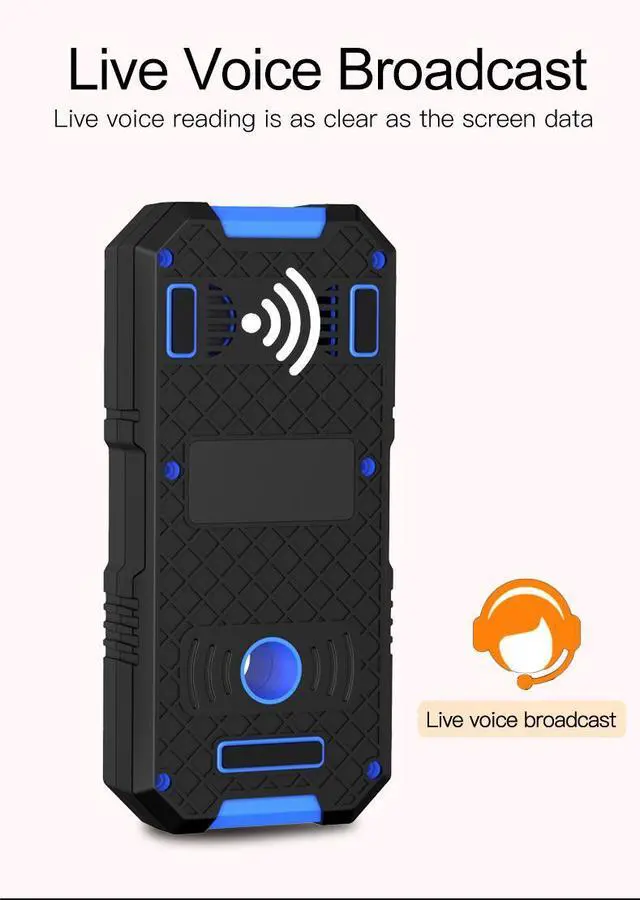

7. Live Voice Broadcast:
8. Clear voice announcements allow you to focus on the detection process without constantly looking at the screen.

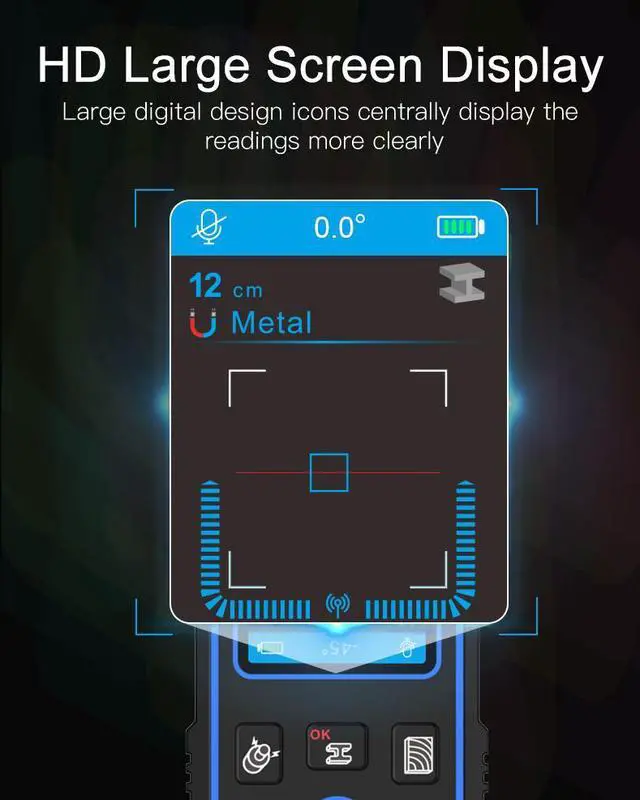

9. Large HD Color Display:
10. The 2.4-inch screen shows intuitive icons, signal bars, and depth readings for easy interpretation.
11. Automatic & Manual Calibration:
12. The instrument automatically calibrates when placed on the surface. Manual calibration is also available for dark or uneven surfaces.
13. Rechargeable & Portable:
14. Equipped with a 390mAh polymer lithium battery and Type-C charging port. Lightweight design (200g) and compact size (63×25×139mm) make it easy to carry and operate.
15. Durable Construction:
16. Made from shock-resistant engineering plastic, built to withstand drops and vibrations on job sites.

Technical Specifications:

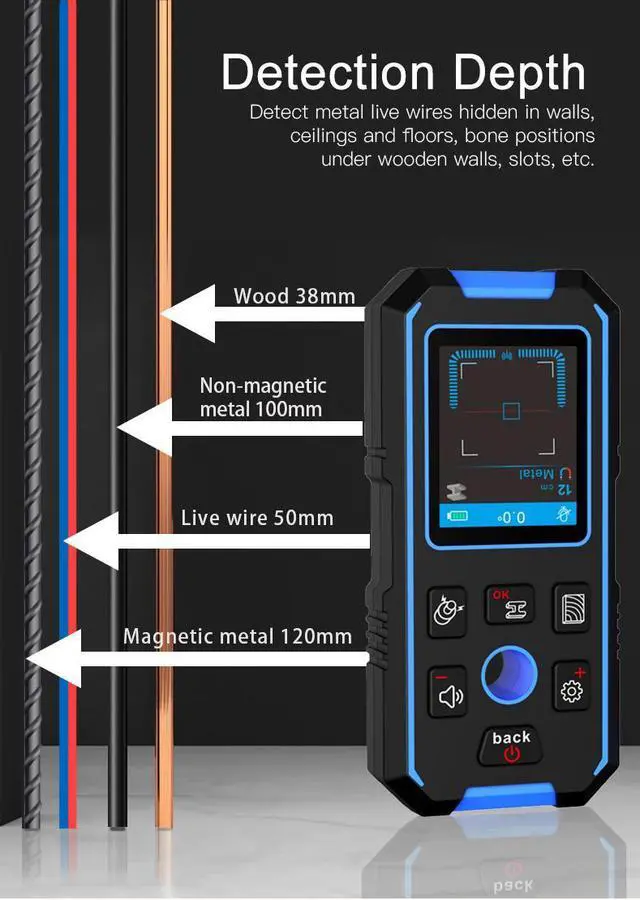

1. Magnetic Metal Depth: 120mm
2. Non-Magnetic Metal Depth: 100mm
3. Live Wire Depth: 50mm
4. Wood Depth: 38mm
5. Screen: 2.4-inch color display (240×320)
6. Battery: 390mAh polymer lithium
7. Charging: Type-C
8. Auto Shutdown: 5 minutes
9. Operating Temperature: 0°C 50°C
10. Weight: 200g
11. Dimensions: 63×25×139mm

Package Includes:

1. 1 × NF-518 Wall Detector
2. 1 × Type-C Charging Cable
3. 1 × User Manual (English, V2.1)

Note:

Avoid touching the sensing area during use for optimal accuracy. Do not use near medical devices or in flammable environments. Follow manual instructions for calibration and fault code reference (e.g., low battery or hardware failure).
