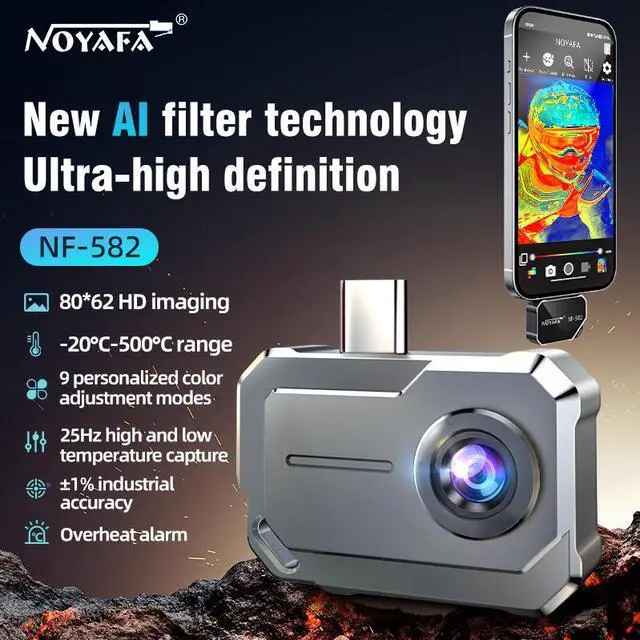

NOYAFA NF-582 Phone Thermal Camera 80x62 IR for Android USB Type-C, -20°C~500°C, AI Filter, 9 Palettes, IP53

Full Description

Pocket-Sized Professional Thermal Imaging

The NOYAFA NF-582 attaches directly to your Android phone via USB Type-C, turning your smartphone into a thermal imager in seconds. No battery, no charging, and no bulky equipment just plug in, launch the free app, and start scanning.

Clear, Rich Thermal Images

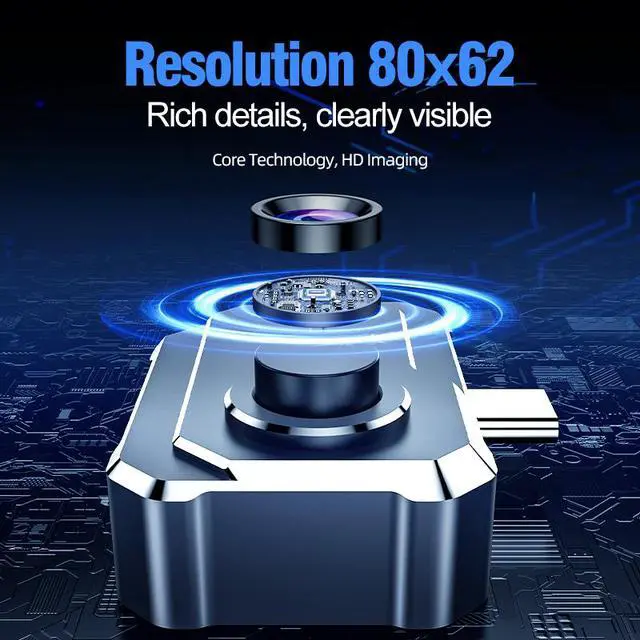

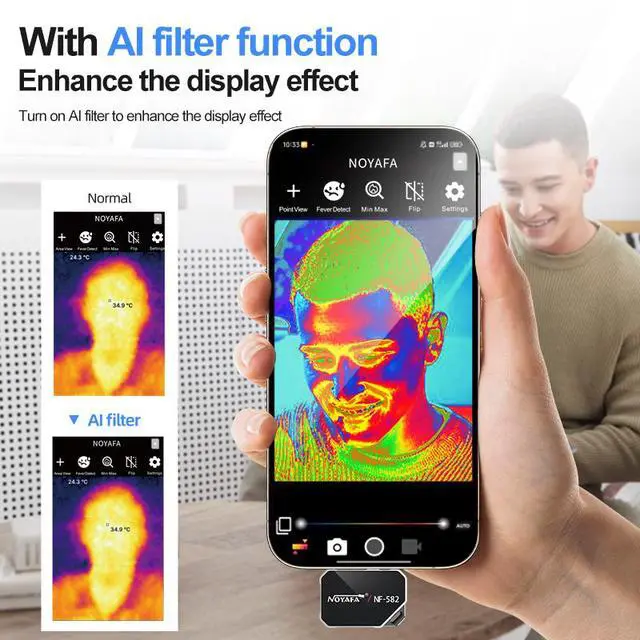

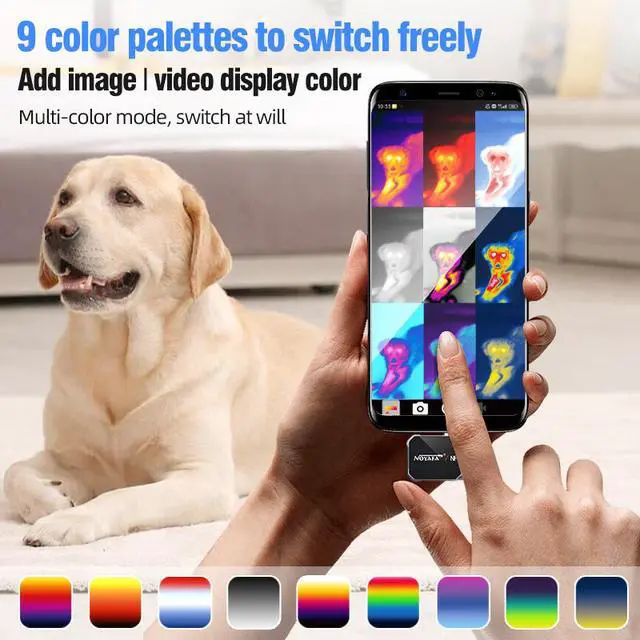

The 80x62 infrared sensor with 8-14 um spectral response and < 125 mK thermal sensitivity captures fine temperature differences. Nine color palettes let you switch between rainbow, ironbow, grayscale, and other views, while the AI filter sharpens the image so details like warm pipes, loose wiring, or heat leaks stand out clearly.

Smart Measurement Tools

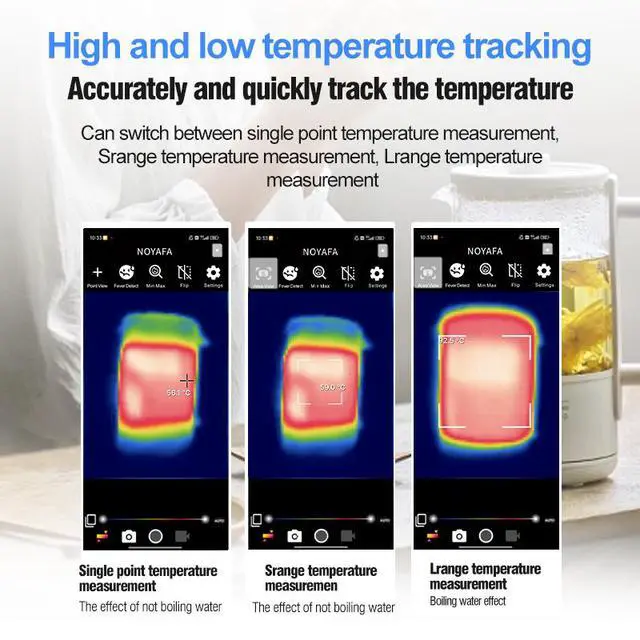

Measure temperature exactly where you need it: single-point measurement for spot checks, S-range and L-range area measurement for larger targets, and automatic display of maximum, minimum, and center temperatures. The app also supports adjustable emissivity so readings stay accurate across different surfaces, from human skin to metal.

Overheat Alarm & More

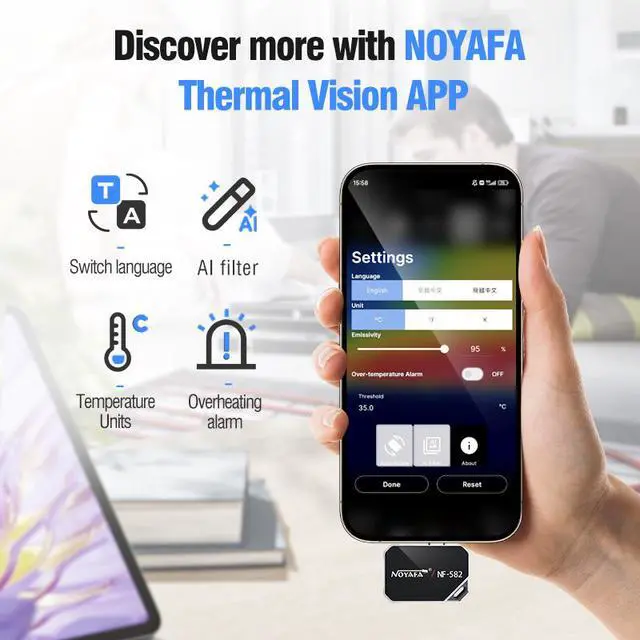

Set a custom overheat threshold and the screen turns red the moment a target exceeds it perfect for circuit boards, motors, and electrical panels. You can also capture thermal photos and videos, compare RGB and thermal views side by side, and mirror the image when needed.

Tough & Portable

Machined from aluminum alloy with a compact 40 x 21 x 12 mm body, the NF-582 is built for daily carry and tough environments, with IP53 dust- and splash-resistance. It weighs next to nothing, so you can keep it in your pocket, tool bag, or glovebox.

System Requirements & Notes

1. Android smartphone with a USB Type-C port and USB OTG support (enable OTG in phone settings if required)
2. Free NOYAFA Thermal Vision app (Google Play or manufacturer website)
3. Allow 5-30 seconds of sensor warm-up after plugging in for the most accurate readings
4. Do not point the lens at strong light sources (e.g., the sun or lasers) as this can permanently damage the sensor
5. Fever detection mode is provided for demonstration purposes only and is not a medical device

Specifications

AttributeValue
Brand	NOYAFA
Model	NF-582
Type	Smartphone Thermal Imaging Camera
Interface	USB Type-C (OTG)
Thermal Resolution	80 x 62
Spectral Response	8-14 um
Frame Rate	9 Hz (default)
NETD	< 125 mK @ 25°C
Field of View	53° diagonal, 45° horizontal
Lens Focal Length	3.0 mm
Temperature Range	-20°C to 500°C
Measurement Accuracy	±2°C or ±2%
Color Palettes	9
Measurement Modes	Single point, S-range, L-range, max/min/center
Photo / Video	Yes
Overheat Alarm	Yes (adjustable threshold)
AI Filter	Yes
Emissivity Setting	Adjustable
Languages	English, Traditional Chinese, Simplified Chinese
Operating Temperature	-20°C to 85°C
Protection Rating	IP53
Product Dimensions	40 x 21 x 12 mm (lens 9 x 6.5 mm)

Package Contents

1. 1 x NF-582 Thermal Imager
2. 1 x Carrying pouch / storage bag
3. 1 x Dust-free cloth
4. 1 x User manual
5. 1 x Certificate of quality
6. 1 x Color box
