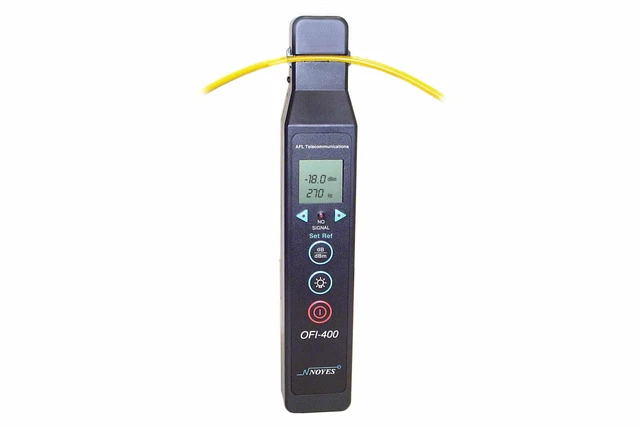

AFL OFI-400 Optical Fiber Identifier Live Traffic Detector & Power Meter

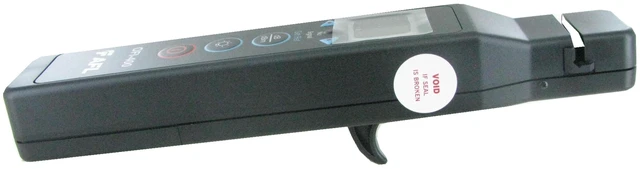

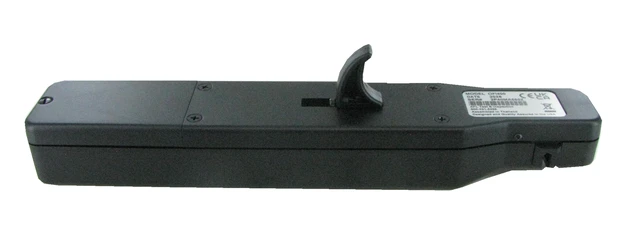

The AFL OFI-400 is a handheld optical fiber identifier for identifying active single-mode fibers, checking transmission direction and measuring optical core power. Its clamp-on optical head uses a two-position plunger to accommodate 250 µm and 900 µm coated fiber, ribbon fiber, and 2 mm or 3 mm jacketed fiber. It supports fiber tracing during installation, maintenance and troubleshooting without disconnecting the fiber.

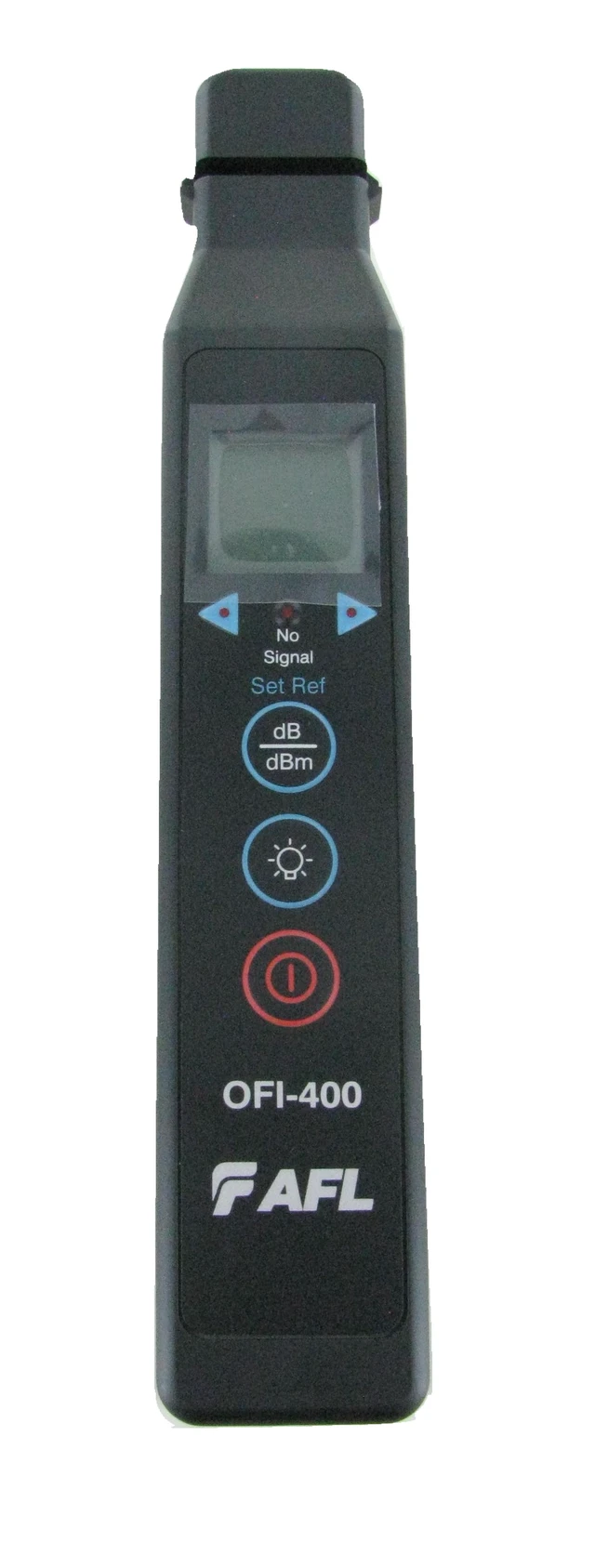

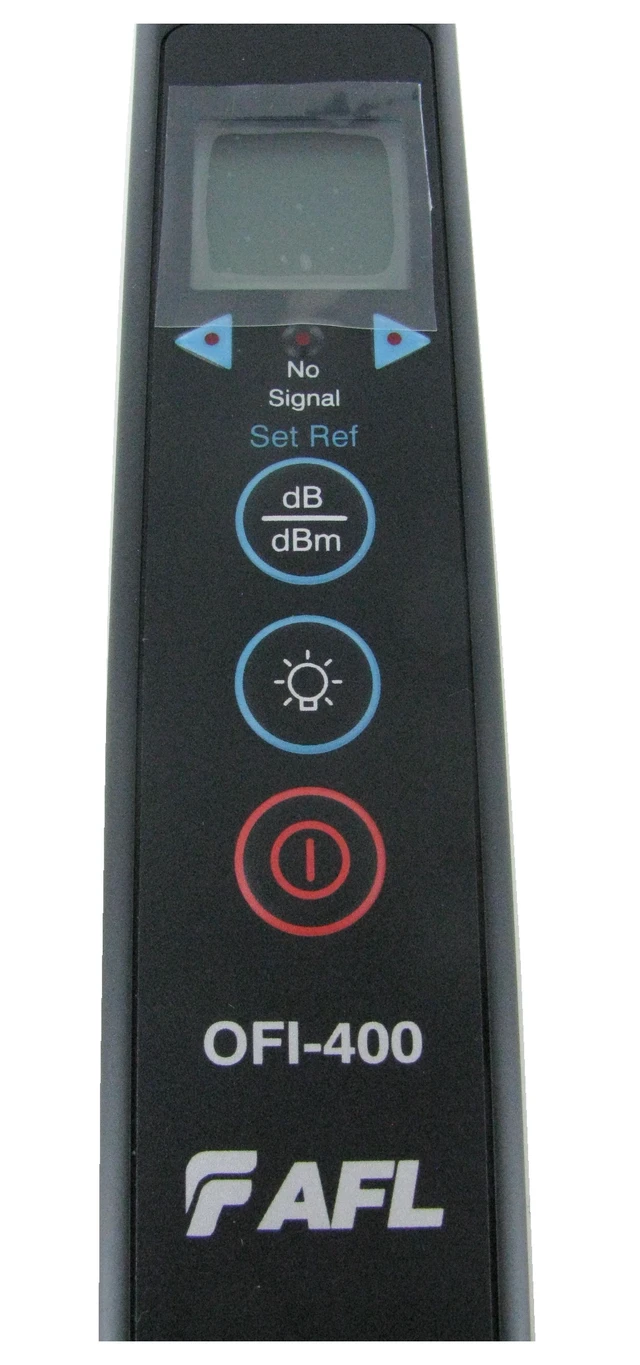

The instrument detects live traffic, continuous-wave signals and 270, 330, 1000 and 2000 Hz identification tones. A built-in power meter displays readings in dBm or dB and includes a reference function for relative measurements. The backlit display, LED indicators and audible indication support work in equipment rooms and other dimly lit areas.

Key specifications:

Model: OFI-400

Optical detector: InGaAs

Wavelength range: 8001700 nm

Core power measurement: +13 to -50 dBm at 1550 nm on 250 µm fiber

Calibration: 250 µm SMF-28/28E fiber at 1550 nm

Tone detection: 270, 330, 1000 and 2000 Hz (±5%)

Power source: two 1.5 V AAA alkaline batteries

Typical battery life: more than 10,000 operations

Condition: New. Country of origin: USA. Performance depends on the fiber type, coating and jacket. This listing is for model OFI-400.
