Currently, the Launch X431 key programmer can be worked with:
LAUNCH X431 IMMO ELITE key programmer
LAUNCH X431 IMMO PLUS key programmer
LAUNCH X431 PAD 7
LAUNCH X431 PAD 5 and more to come.
NOTE: If you try to update key programming software and firmware on Launch X431 IMMO Plus, Elite PAD V, PAD VII, you must connect this key programmer with tablet, otherwise it will give error device no response.
Function:
Read Transponder
Generate Transponder
Detect Frequency
Detect Ignition switch coil signal
Generate Remote Launch X431 remote
Set type of super chip
Set type of wireless remote
Unlock Toyota smart key
Compatible with Launch super chip
Functions of super chips:
Support the conversion of most car model chip types, and support separate matching to achieve vehicle startup.
Support chips of the 8A, 8C, 8E, 4C, 4D, 4E, 48, 7935, 7936, 7938, 7939, 11 12 13 types.
| Size | 80*40*11.2mm |
|---|---|
| Working voltage | 5V |
| Operating temperature | 0-50°C |
| Communication interface | USB |
| Low-frequency communication interface | 25K low-frequency transceiver |
| High-frequency communication interface | support 13.56M high-frequency transceiver, support 3000M-500M high-frequency signal frequency measur |

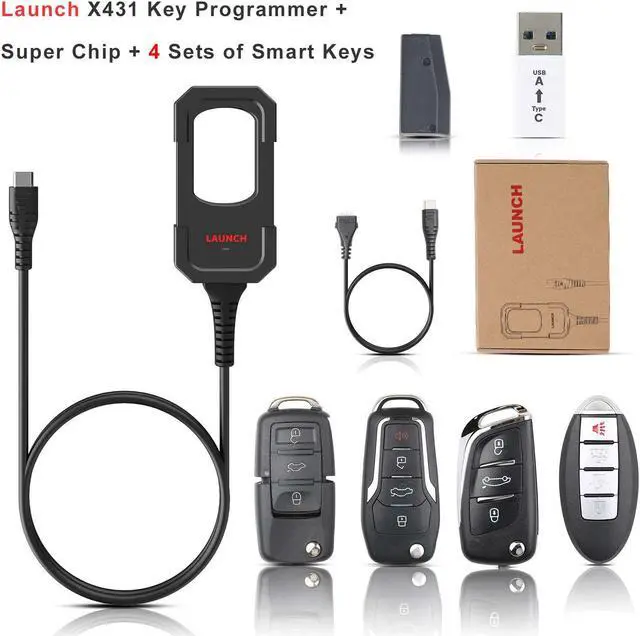

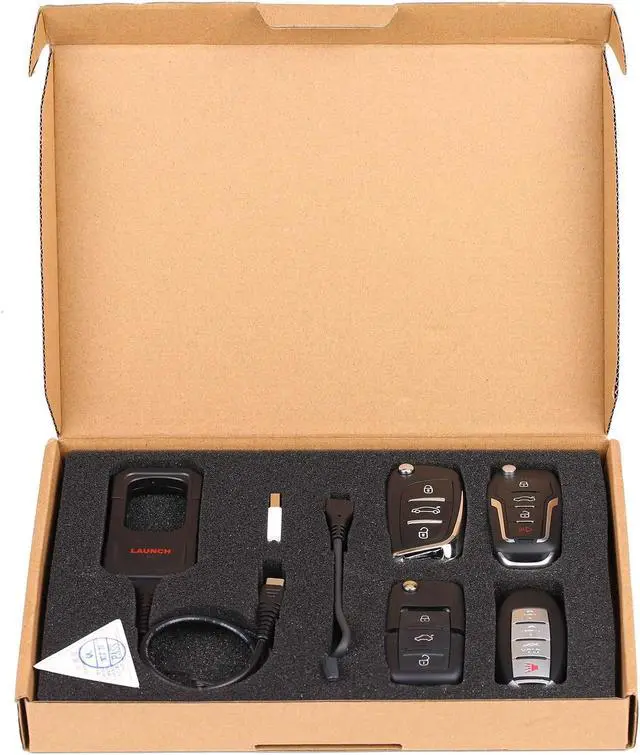

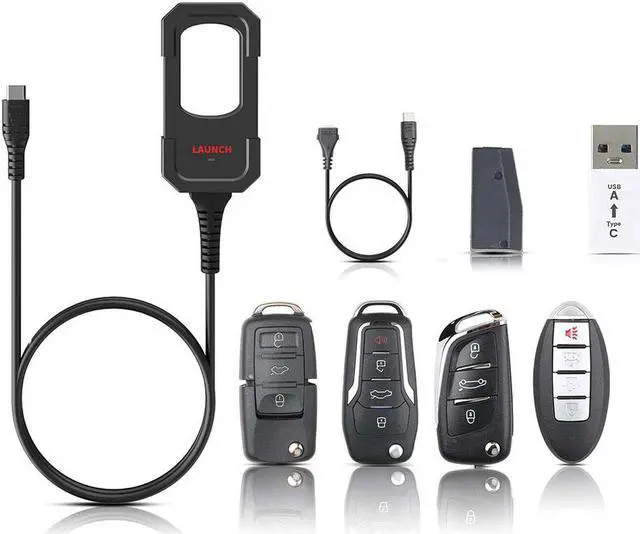

Package Includes:
1pc x Launch X431 Key Programmer
1pc x Super Chip
4pcs x Smart Keys
1pc x Type-C to USB A Converter
