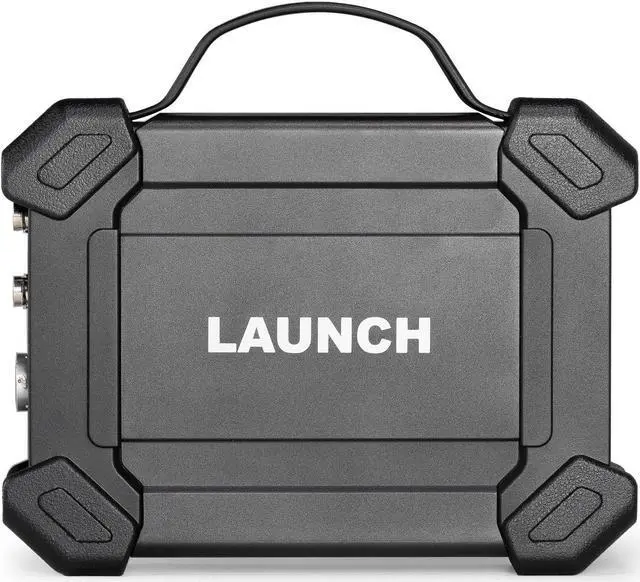

    Launch X431 Sensorbox S2-2 DC USB Oscilloscope 2 Channels Handheld Sensor Simulator and Tester for X431 PAD V, PAD VII

    • S2-2 DC USB Oscilloscope
    • O2-2 Oscilloscope
    • Launch new S2-2 Sensorbox it is designed to test and simulate most vehicle sensors. quickly troubleshooting the ECU.it can be compatible with Launch scanner X431 PAD V, PAD VII, X431 Throttle III, X431 Throttle and ect, to maximize the repair shop revenue.
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

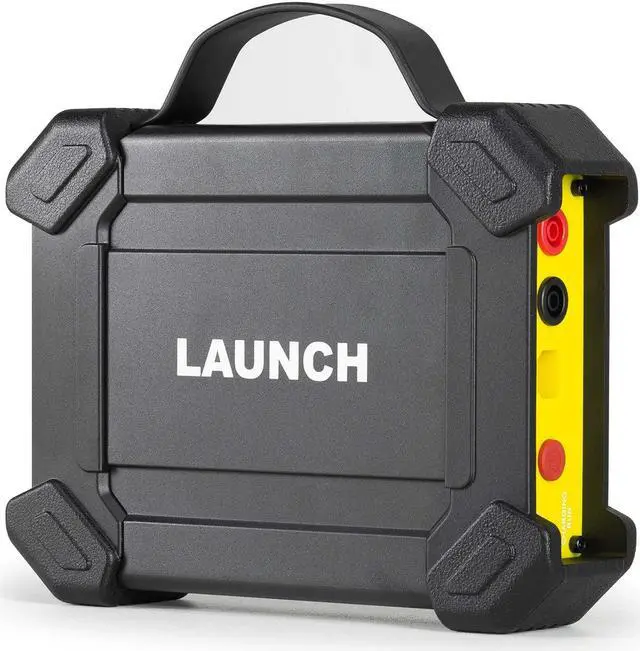

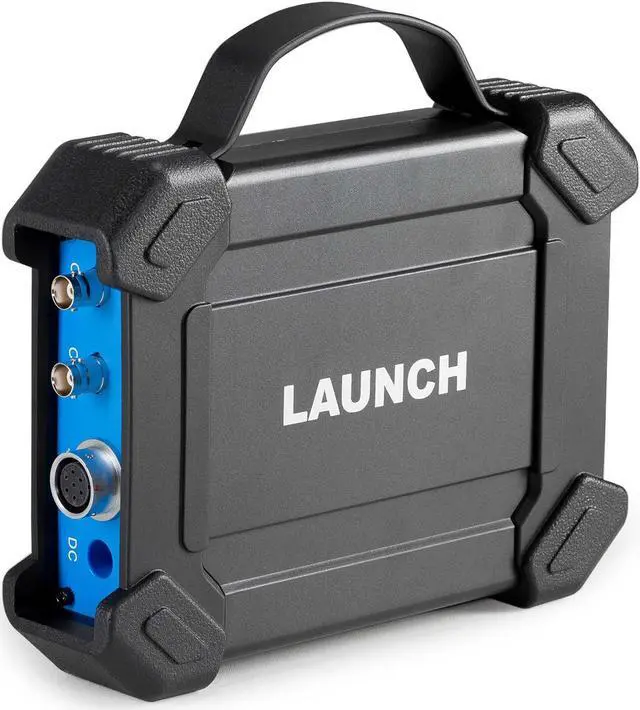

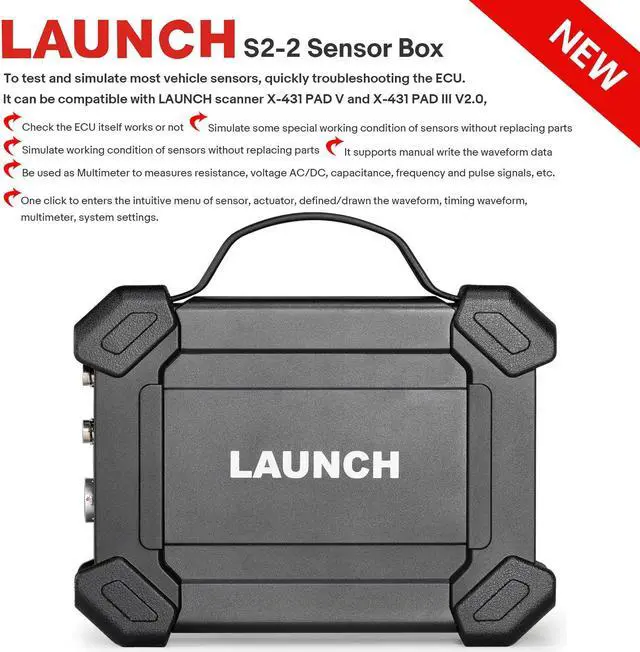

    Launch X-431 Sensorbox S2-2 DC USB Oscilloscope 2 Channels Handheld Sensor Simulator and Tester for X431 PAD V X431 PAD VII

    LAUNCH S2-2 Sensor box module is specially developed for diagnosing testing simulating most vehicle sensor faults. With its help, users can easily and quickly diagnose and simulate the sensor to rapidly troubleshoot the ECU.

    At the same time, the LAUNCH S2-2 Sensor box module also supports the vehicle multi-meter function. Through this function, users can test voltage, resistance, and capacitance. The function uses the same hardware device as the sensor module. The module cannot be used separately, and must be used together with Launch specific diagnostic tools that are compatible with this module. It can be compatible with LAUNCH scanner X431 PAD V, PAD VII, X431 Throttle III, X431 Throttle and ect, to maximize the repair shop revenue.

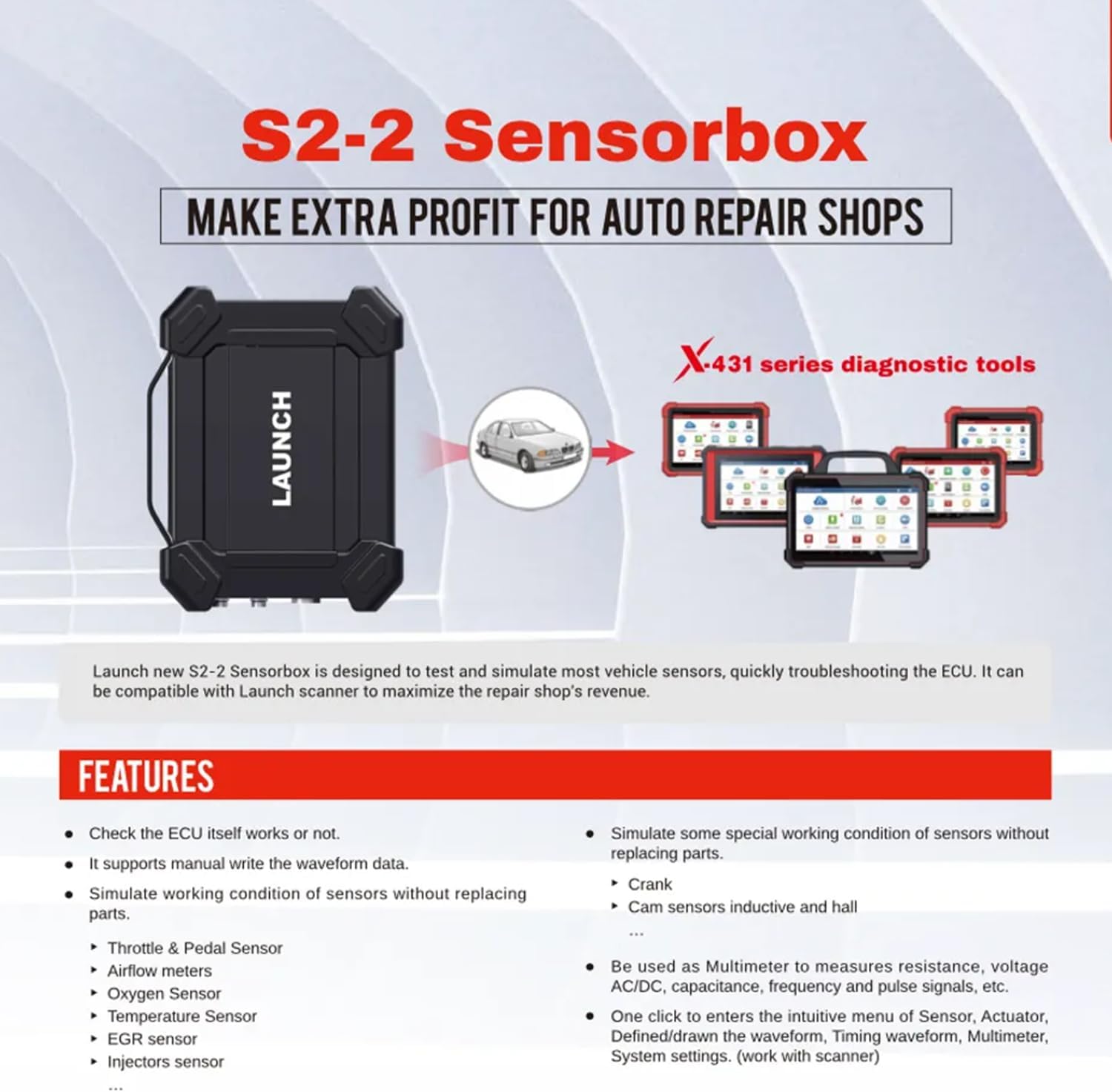

    LAUNCH X431 Sensor Simulator and Tester 2 Channels Digital S2-2 Sensorbox

    Launch X-431 Sensorbox S2-2 Features:

    Compatible with X-431 Throttle & X-431 Throttle III, X431 PAD V, X431 PAD VII
    ECU Troubleshooting and Diagnostics
    It supports manually writing the waveform data
    Simulate the working condition of sensors without replacing parts
    Throttle & Pedal Sensor
    Airflow Meters
    Oxygen Sensor
    Temperature Sensor
    EGR Sensor
    Injectors Sensor
    Crank
    Cam sensors inductive & hall
    Be used as Multimeter to measure resistance, voltage AC/DC, capacitance, frequency and pulse signals, etc
    Simulate some special working condition of sensors without replacing parts
    One click to enters the intuitive menu of sensor, actuator, defined/drawn the waveform, timing waveform, multimeter, system settings (working with scanner)

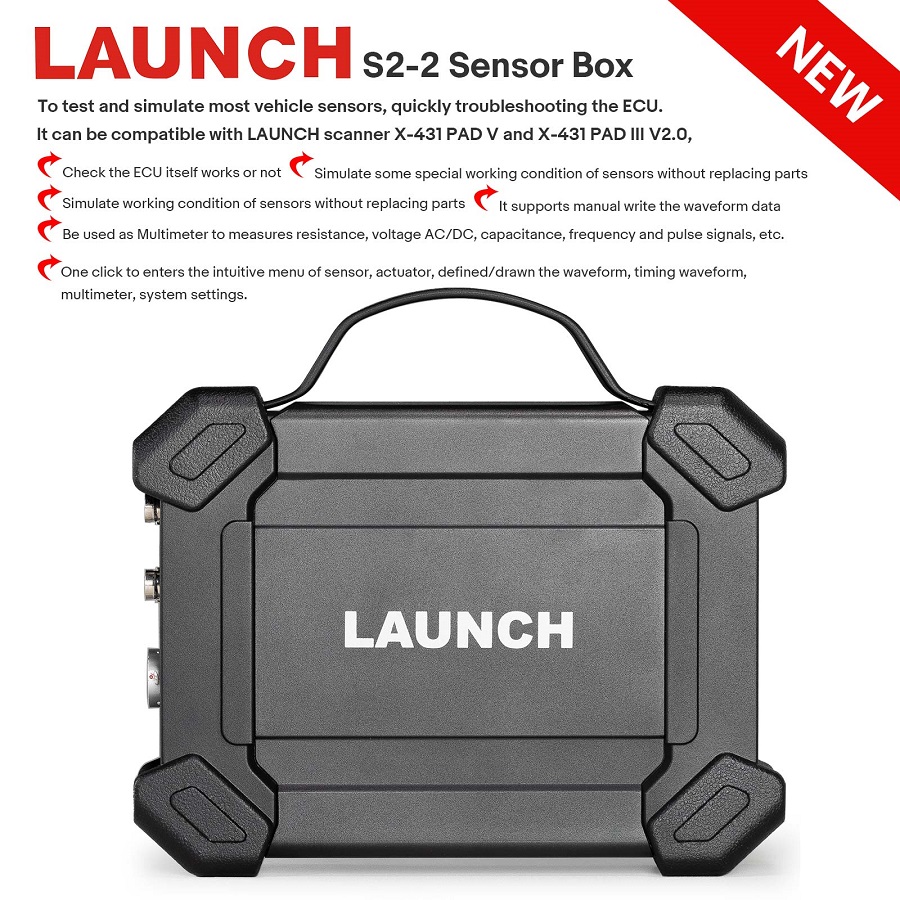

    Launch X-431 Sensorbox S2-2

    Functions:

    S2-2 Sensorbox is specially developed for diagnosing/simulating sensor faults. LAUNCH S2-2 sensor box mainly includes Sensor, Actuator, Defined/Drawn, and Timing Waveform.

    Sensor: Is used to simulate the input signals of the automobile electronic control system, and the automobile computer adjusts the running state of the engine according to these parameters.
    Actuator: Is used to simulate the output control signal of automobile electronic control system, so as to judge the working conditions of automobile actuators such as idle motor, EGR solenoid valve, etc.
    Multimeter: Through this function, users can test voltage, resistance, and capacitance.

    The module cannot be used separately, it only works as accessory for LAUNCH X-431 PAD III, PAD V and PAD VII diagnostic tools.

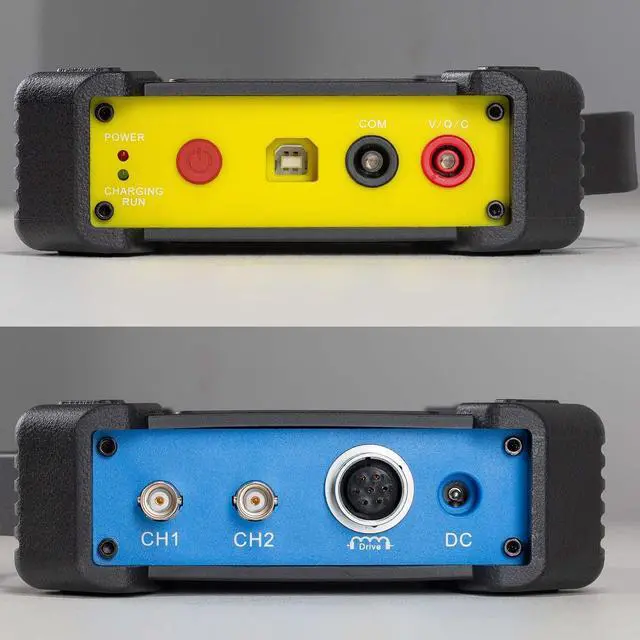

    S2-2 Sensorbox Connection:

    1) Insert one end (B-type terminal) of the USB cable into the B-type USB port of the sensor module host, and then insert the other end into the USB port of the diagnostic tool.

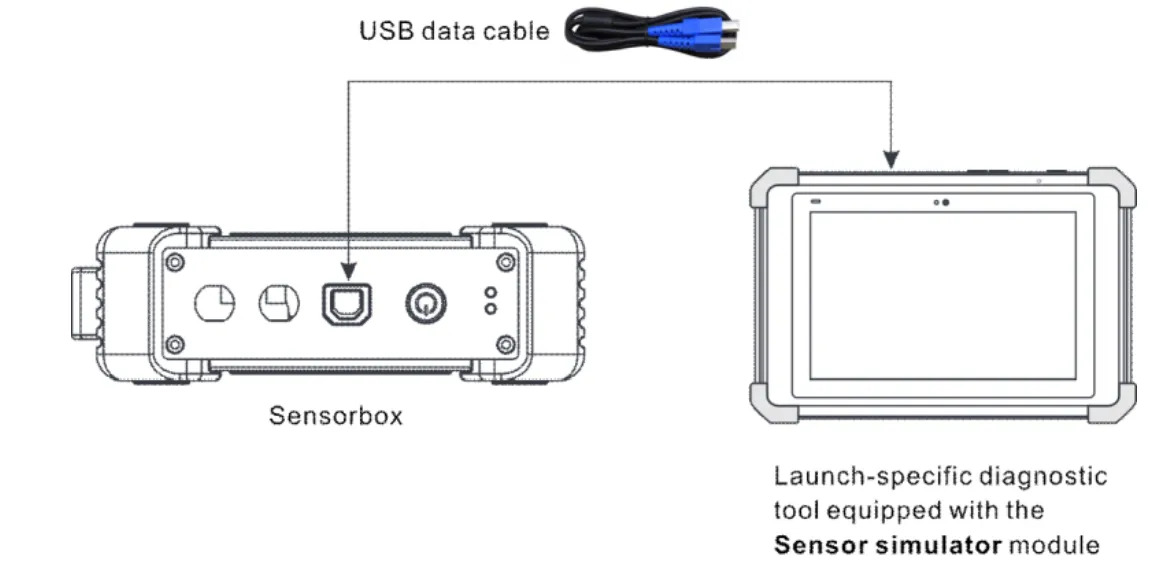

    Launch S2-2 Sensorbox connection

    2) Press and hold the power button for over 3s to start the sensor module. If the electric quantity is normal, the green lamp is steady on Indicator lamp status description:

    Green lamp:
    Steady on: normal electric quantity
    Flashing at an intermediate speed: low electric quantity (regardless of whether red lamp flashes)
    Flashing at a low speed: charging in progress

    Red lamp:
    Steady on: diagnostic tool connected
    Flashing: diagnostic tool disconnected. It will enter the charging status only when the red lamp is flashing. The green lamp is flashing at a low speed during charging.

    3) Start the diagnostic tool and access the toolbox. Tap Sensor Simulator to access the job menu of sensor.

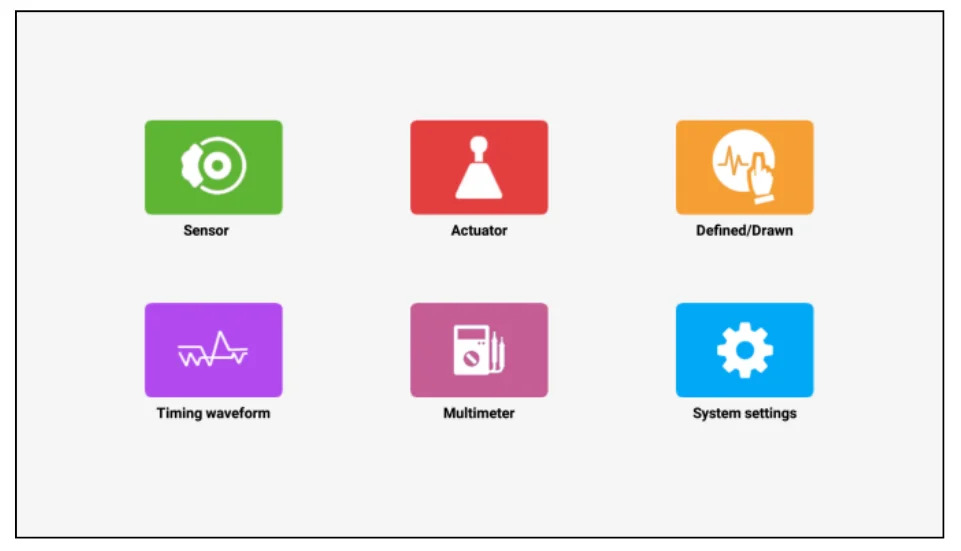

    Job Menu:

    The sensor module is mainly divided into five functional modules

    1) Sensor: Use output voltage or waveform to simulate the working status of the on-board sensor, so as to accurately judge the quality of the sensor and reduce blind replacement of accessories.
    2) Actuator: Used to output PWM signal to drive the on-board coil actuator.
    3) Defined/Drawn: Users can customize sensor waveforms to facilitate future sensor signal simulation.
    4) Timing waveform: Customize timing waveform to match the engine (crankshaft + camshaft), and output in the same phase.
    5) Multimeter: universal multimeter functions.

    Launch S2-2 Sensorbox

    Defined:
    Waveform: There are 9 waveform to choose; Forward sine wave, reverse sine wave, forward square wave, reverse square wave, medium voltage, straight line, high / low voltage straight line, triangle wave, and trapezoidal wave.
    Frequency: Set the frequency of the selected waveform.
    Amplitude: Set the amplitude of the selected waveform.
    Offset: Set the offset of the selected waveform.
    Phase: Set the phase of the selected waveform.
    Duty cycle: Set the duty cycle of the selected waveform.
    Signal sync: Can cause CH1 and CH2 to output signals at the same time.

    Hand-drawn:
    Total frame: 1-3 (optional). Indicate the total number of output points
    Generally, one waveform is composed of 100 points. The values 1-3 indicate that you can select 100, 200, or 300 points to form a waveform.
    Edit frame: You can edit a single frame or edit all
    Waveform: You can select a preset waveform and place it in the hand-drawing area
    Frequency: Frequency of a single frame (for 3-frame output, the total frequency is the set frequency/3)
    Amplitude: Amplitude of the output waveform
    Offset: Offset of the output waveform

    Timing Waveform:
    The function is used to match the timing waveform (crankshaft + camshaft) of the engine.

    Technical Parameters
    Sensor Module
    Number of channels 2
    Precision 1%
    Amplitude range 0 to 20V
    Max output current 20 mA
    Predefined frequency range 0 to 20 kHz
    Storage depth 0 to 15 kHz
    Square wave signal duty cycle 0 to 100 %
    Power supply Power supply: Simulator sensor output/max current 20mA (output is powered by battery) , Drive solenoid, ignition coil output current 2A (external power supply
    USB USB2.0 Type B (with charging and power supply function/5V)
    DC voltage simulation Support
    Fixed frequency simulation Support
    Predefined waveform simulation Support
    Hand-drawn waveform simulation Support
    Signal generator interface 2
    External power supply port 1
    Solenoid interface 1
    Multimeter interface 2
    Working temperature 0 degree C-50 degree C
    Storage temperature -30 degree C~70 degree C
    Multimeter
    DC voltage 0 V to 700 V
    AC voltage 0 V to 700 V
    Resistance 0 Ohm to 40 milliohm
    Capacitance 0 F to 100 µF (maximum 30 s measurement time)
    Diode 0 V to 1.5 V
    Continuity detection Sounds below 30 Ohm

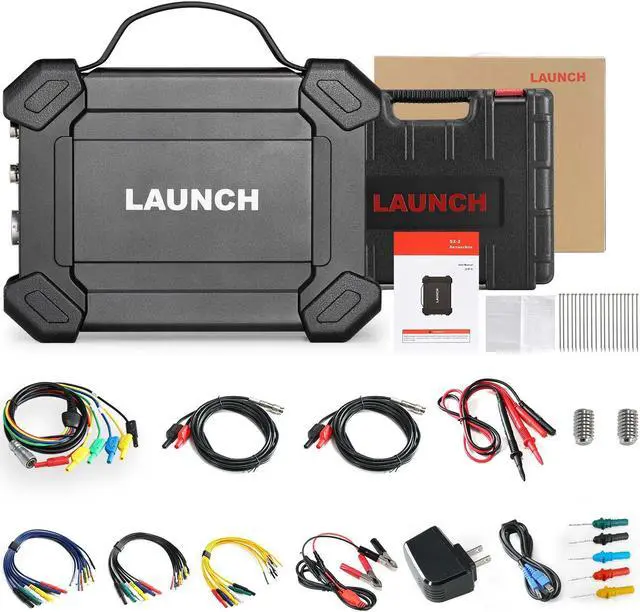

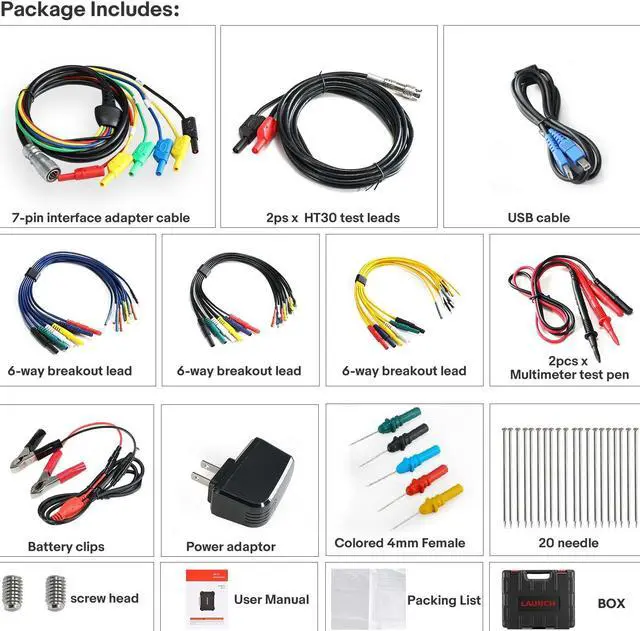

    Package Includes:

    1pc x Sensor module
    2ps x  HT30 test leads
    1pc x 7-pin interface adapter cable
    1pc x Battery clamps cable
    1pc x USB cable
    3pcs x 6-way breakout lead
    2pcs x Multimeter test pen
    5pcs x Colored 4mm female probes
    20pcs x Needles
    1pc x Power adapter
    2pcs x Screw heads
    1pc x User manual
    1pc x Packing list
    1pc x Box

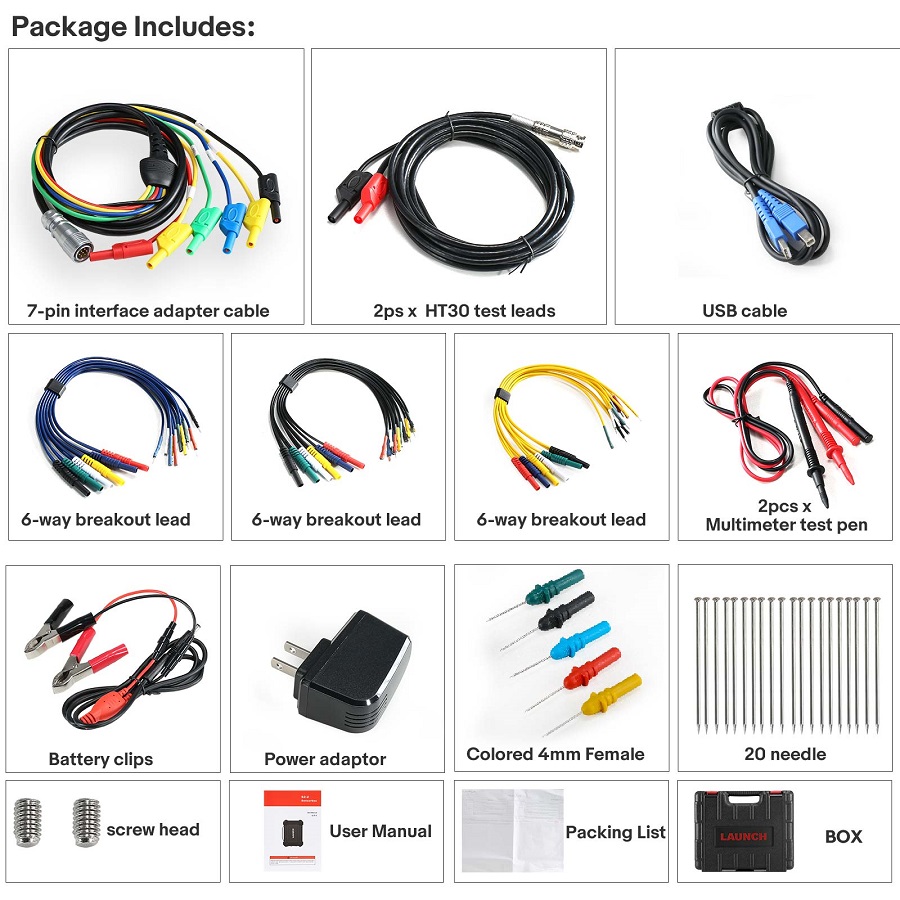

    Launch S2-2 Sensorbox Package List
    Launch X-431 Sensorbox S2-2 DC USB Oscilloscope 2 Channels Handheld Sensor Simulator and Tester for X431 PAD V, X431 PAD VII

    Features:

    Compatible with X-431 Throttle & X-431 Throttle III, X431 PAD V, X431 PAD VII
    E. CU Troubleshooting and Diagnostics
    It supports manually writing the waveform data
    Simulate the working condition of sensors without replacing parts
    Throttle & Pedal Sensor
    Airflow Meters
    Oxygen Sensor
    Temperature Sensor
    EGR Sensor
    Injectors Sensor
    Crank
    Cam sensors inductive & hall
    Be used as Multimeter to measure resistance, voltage AC/DC, capacitance, frequency and pulse signals, etc
    Simulate some special working condition of sensors without replacing parts
    One click to enters the intuitive menu of sensor, actuator, defined/drawn the waveform, timing waveform, multimeter, system settings (working with scanner)

    S2-2 Sensorbox is specially developed for diagnosing/simulating sensor faults

    It mainly includes Sensor, Actuator, Defined/Drawn, Timing Waveform and multimeter.

    Sensor: Is used to simulate the input signals of the automobile electronic control system, and the automobile computer adjusts the running state of the engine according to these parameters.
    Actuator: Is used to simulate the output control signal of automobile electronic control system, so as to judge the working conditions of automobile actuators such as idle motor, EGR solenoid valve, etc.
    Multimeter: Through this function, users can test voltage, resistance, and capacitance.

    The module cannot be used separately, it only works as accessory for LAUNCH X-431 PAD III, PAD V and PAD VII diagnostic tools.

    S2-2 Sensorbox Connection

    1) Insert one end (B-type terminal) of the USB cable into the B-type USB port of the sensor module host, and then insert the other end into the USB port of the diagnostic tool.
    2) Press and hold the power button for over 3s to start the sensor module. If the electric quantity is normal, the green lamp is steady on
    Indicator lamp status description:

    Green lamp:
    Steady on: normal electric quantity
    Flashing at an intermediate speed: low electric quantity (regardless of whether red lamp flashes)
    Flashing at a low speed: charging in progress

    Red lamp:
    Steady on: diagnostic tool connected
    Flashing: diagnostic tool disconnected. It will enter the charging status only when the red lamp is flashing. The green lamp is flashing at a low speed during charging.

    3) Start the diagnostic tool and access the toolbox. Tap Sensor Simulator to access the job menu of sensor.

    Job Menu

    The sensor module is mainly divided into five functional modules

    1) Sensor: Use output voltage or waveform to simulate the working status of the on-board sensor, so as to accurately judge the quality of the sensor and reduce blind replacement of accessories.
    2) Actuator: Used to output PWM signal to drive the on-board coil actuator.
    3) Defined/Drawn: Users can customize sensor waveforms to facilitate future sensor signal simulation.
    4) Timing waveform: Customize timing waveform to match the engine (crankshaft + camshaft), and output in the same phase.
    5) Multimeter: universal multimeter functions.

    Sensor module:

    Parameter: Range
    Number of channels: 2
    Precision: 1 %
    Amplitude range: 0 20 V
    Max output current: 20 mA
    Predefined frequency range: 0 20 kHz
    Square wave signal pulse frequency: 0 15 kHz
    Square wave signal duty cycle: 0 100 %
    Power supply: Simulator sensor output/max current 20mA (output is powered by battery) Drive solenoid, ignition coil/output current 2A (external power supply)
    USB: USB 2.0 Type B (with charging and power supply function/5V)
    DC voltage simulation: Support
    Fixed frequency simulation: Support
    Predefined waveform simulation: Support
    Hand-drawn waveform simulation: Support
    Signal generator interface: 2
    External power supply port: 1
    Solenoid interface: 1
    Multimeter interface: 2
    Working temperature: 0 °C 50 °C
    Storage temperature: -30 °C 70 °C

    Multimeter:

    Parameter: Range
    DC voltage: 0 V 700 V
    AC voltage: 0 V 700 V
    Resistance: 0 40 M
    Capacitance: 0 F 100 µF (maximum 30 s measurement time)
    Diode: 0 V 1, 5 V
    Continuity detection: Sounds below 30

    Defined

    Waveform: There are 9 waveforms to choose; Forward sine wave, reverse sine wave, forward square wave, reverse square wave, medium voltage, straight line, high / low voltage straight line, triangle wave, and trapezoidal wave.
    Frequency: Set the frequency of the selected waveform.
    Amplitude: Set the amplitude of the selected waveform.
    Offset: Set the offset of the selected waveform.
    Phase: Set the phase of the selected waveform.
    Duty cycle: Set the duty cycle of the selected waveform.
    Signal sync: Can cause CH1 and CH2 to output signals at the same time.

    Hand-drawn

    Total frame: 1-3 (optional). Indicate the total number of output points
    Generally, one waveform is composed of 100 points. The values 1-3 indicate that you can select 100, 200, or 300 points to form a waveform.
    Edit frame: You can edit a single frame or edit all
    Waveform: You can select a preset waveform and place it in the hand-drawing area
    Frequency: Frequency of a single frame (for 3-frame output, the total frequency is the set frequency/3)
    Amplitude: Amplitude of the output waveform
    Offset: Offset of the output waveform

    Package Includes:

    1pc x Sensor module
    2ps x HT30 test leads
    1pc x 7-pin interface adapter cable
    1pc x Battery clamps cable
    1pc x USB cable
    3pcs x 6-way breakout lead
    2pcs x Multi-meter test pen (black + red - )
    5pcs x Colored 4mm female probes
    20pcs x Needles
    1pc x Power adapter
    2pcs x Screw heads
    1pc x User manual
    1pc x Packing list
    1pc x Box
