AUTENS DC Battery Monitor Meter with LCD Display,0-200V 0-300A Voltage Current Power Energy Impedance Resistance Capacity Multimeter Ammeter Voltmeter Digital Tester with 300A Shunt

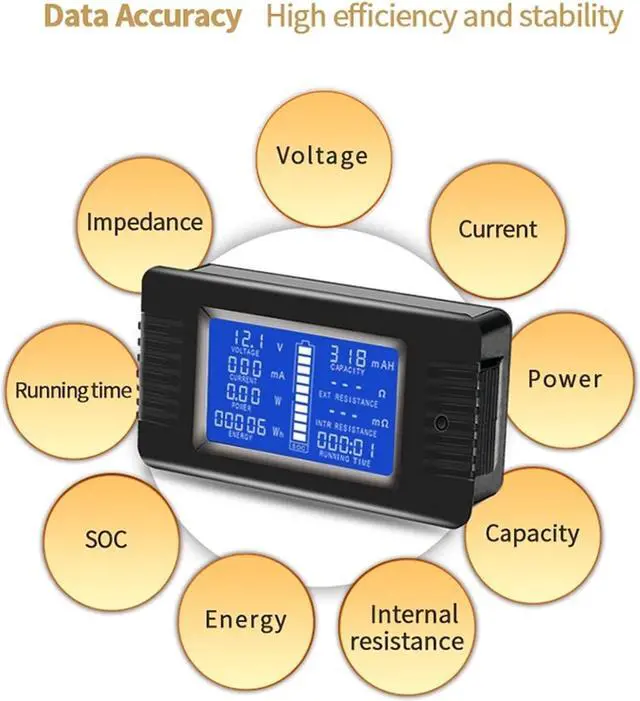

- DC Multi-function Battery Tester. This tester has 9 functions, mainly used to test all kind's of battery's voltage, discharge current, discharge power, discharge impedance, internal resistance, capacity, remaining power, energy consumption, running time, and display the measurement data through the LCD full display figure.
- Applied to solar system/industrial assembly line/Automobile/RV etc, all kinds of batteries, pipeline testing, dc electrical appliances.
- Note: the wiring order should not be wrong, the load should not exceed the rated power, the module is suitable for indoor use, not outdoor use.
- Voltage range 0-200V(<8V requires external power supply). Current range 0-300A(use external shunt, can matched with 50A, 100A, 200A, 300A four kinds of shunt). Power range 0-60000W. Impedance range 0-1000O. Internal resistance range 0-999mO. Capacity range 0-1000AH. SOC displayed by the battery symbol, totally 10 grids, each grid represents 10% of electricity.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
AUTENS Multifunction Battery Monitor Meter
Voltage
Measure range: 0-200V
Display: <10V, display 9.99V; <100V, display 99.9V; =100V, display 199V
Min.
Resolution: 0.01V
Start test voltage: 0.05V
Accuracy: 1%
Current
Measure range: 0-300A
Display: <1A, display 999mA; <10A, display 9.99A; <100A, display 99.9A; =100A, display 199A
Min.
Resolution: 1mA
Start test current: 20mA
Accuracy: 1%
Power
Measure range: 0-60000W
Display: <10W, display 9.99W; <100W, display 99.9W; <1000W, display 999W; <10000W, display 9.99kW; =10000W, display 19.9kW
Min.
Resolution: 0.01W
Start test power: 0.2W
Accuracy: 1%
Impedance: Impedance=voltage/current
Measure range: 0-1000O
Display: <100O, display 99.9O; =100O, display 999O
When over the range or current is 0 displayed "---".
Min.
Resolution: 0.1O
Accuracy: 1%
Running time
Range: 0-999 hr (no load no time)
Display:
0:00: 00- 999:59
Notice
1. This module is suitable for indoor, please do not use outdoor
2. Applied load should not exceed the rated voltage, current.

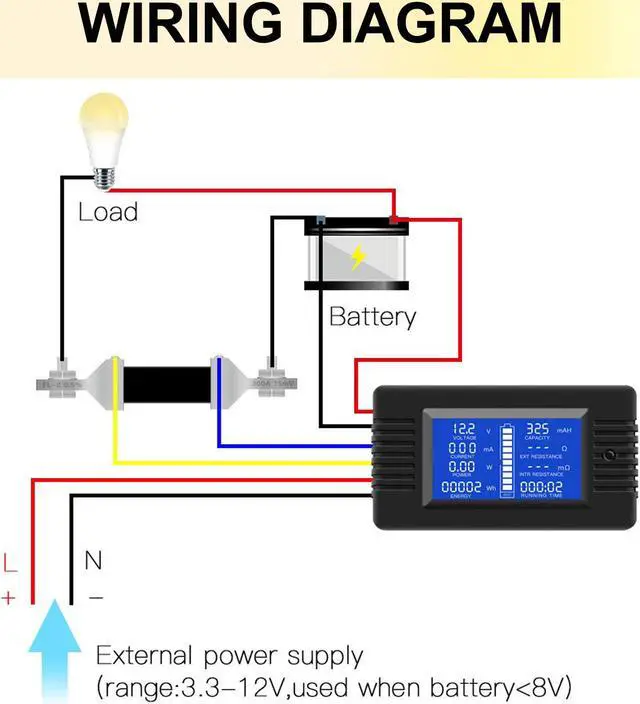

3. Wiring order can't be wrong

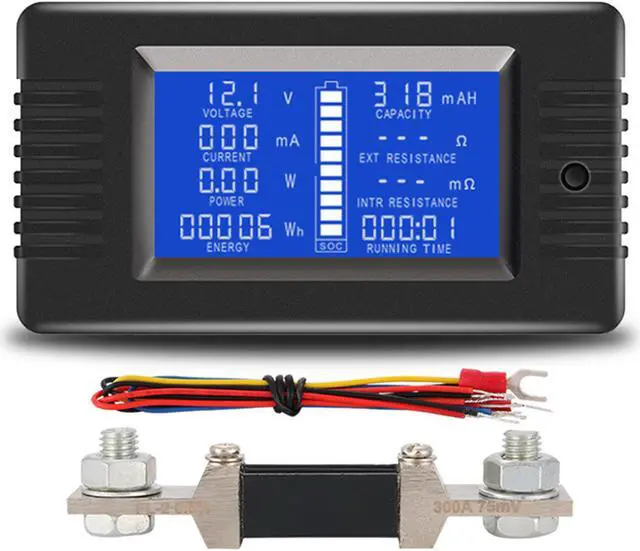

Package
1 * Battery Monitor Meter
1 * DC 300A Shunt
6 * Wire
1 * Instruction manual
