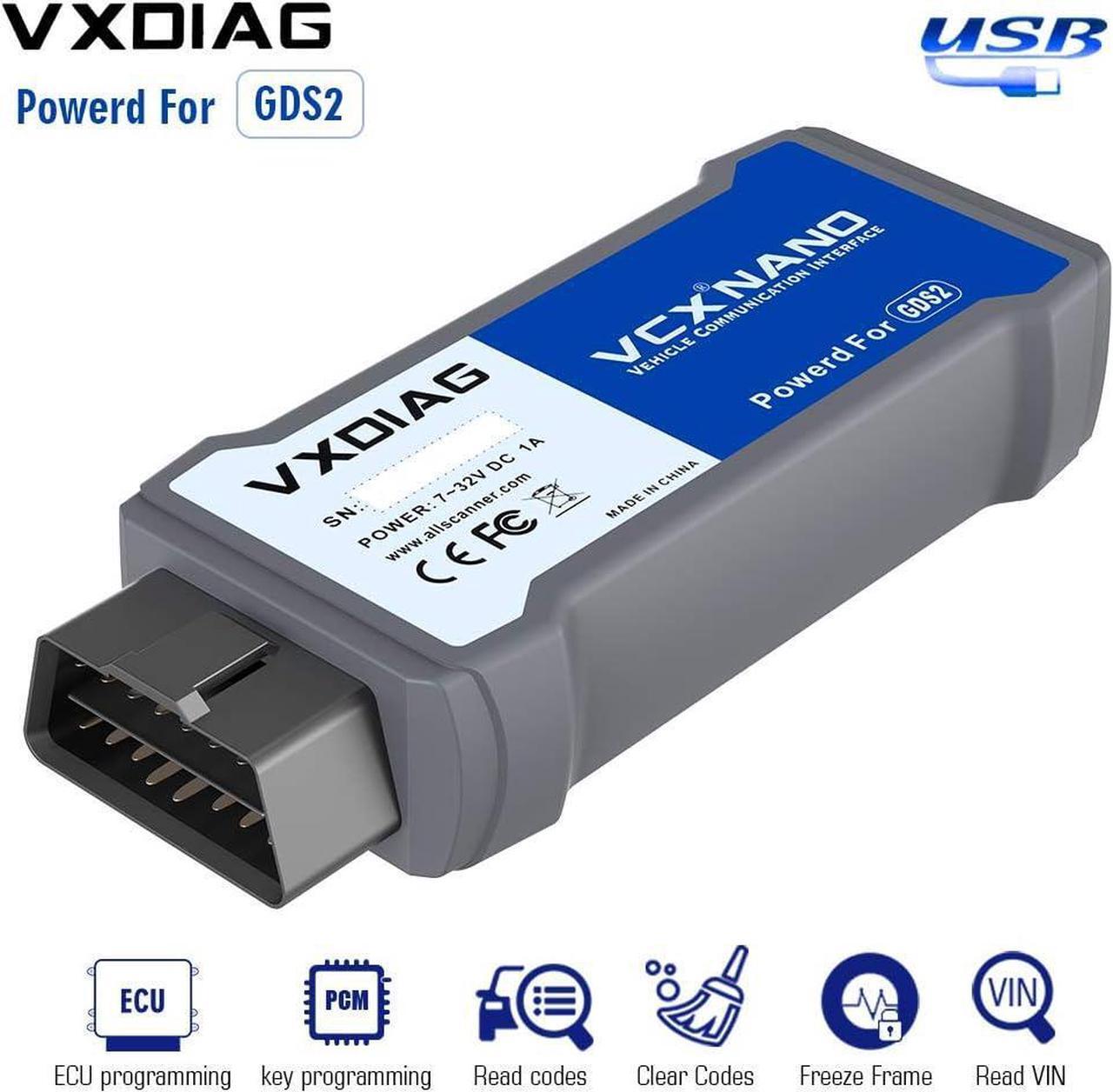

VXDIAG VCX Nano Multiple GDS2 and TIS2WEB Diagnostic/Programming System for GM/Opel

VXDiag VCX NANO for GM / OPEL GDS2 V 2022.5 Tech2WIN 16.02. 24

Note:

1. There is no software CD included. Free download software below, you may contact customer service to get the software directly. Or buy U disk software.

2. Turn off anti-virus program before installing software.

3. Make sure your computer has at least 4GB ROM. Tech2win software only installed on 32-bit system. Don't install software on Home edition system.

Software Download:

GDS2 V2022

Tech2Win 16.02. 24

VX Manager 1.8. 4 driver

VXDIAG GM GDS2 and Tech2Win Installation Manual (Win10)

Supports GM Chevrolet Cadillac GMC Buick Hummer from year 2000 to
2020. Only GDS2 supports Opel and Saab. Tech2Win DOESN'T support Opel and Saab (2000-2010). DOES NOT do Holden.


VCX NANO GM Scanner Language:

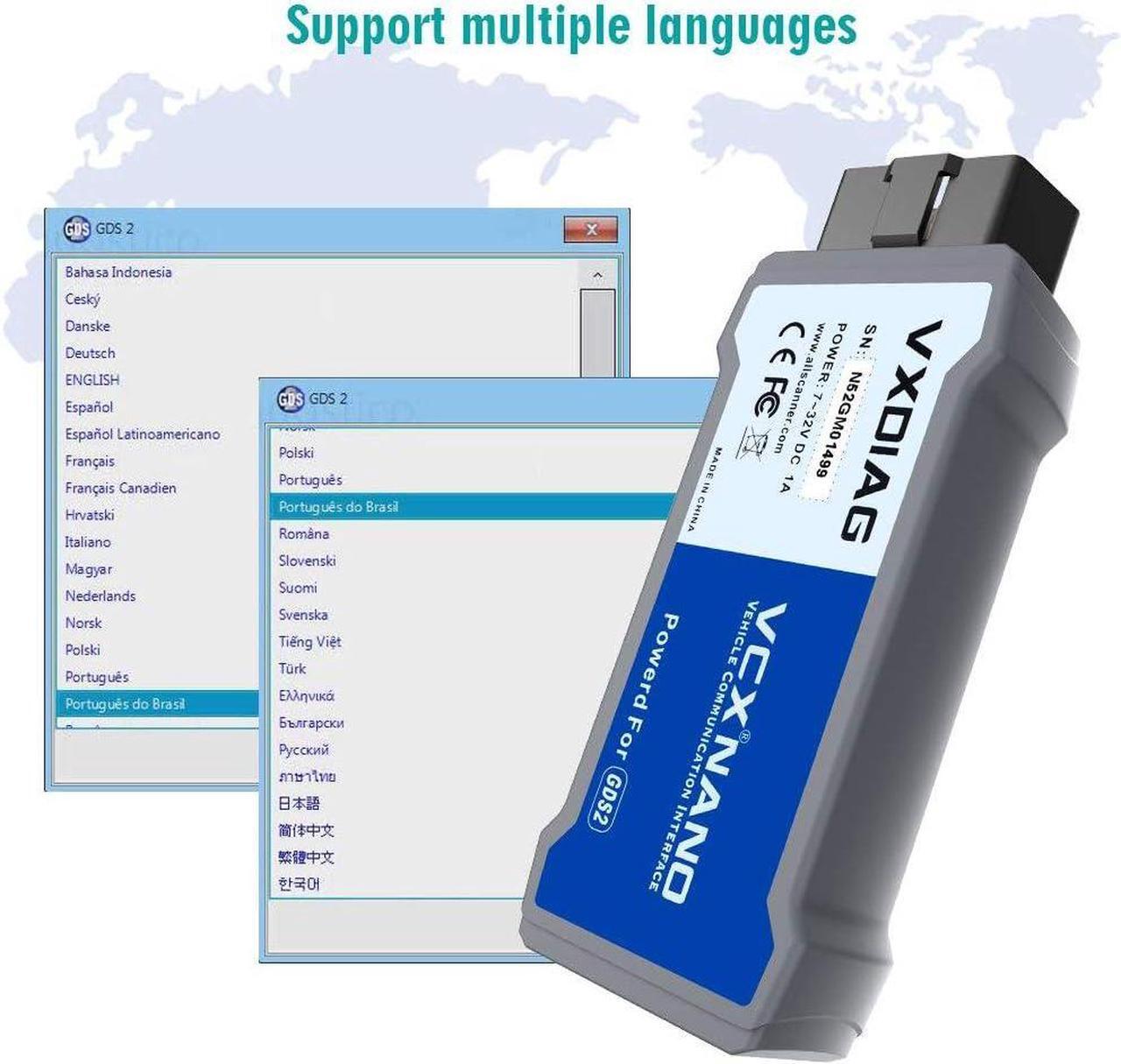

GM GDS2 Languages: English, Spanish, French, Italian, Portuguese, Netherlands, Russian, Arabic, Japanese, Chinese, Vietnamese
GM Tech2win language: English


Top 8 Reasons to Get VXDiag GM:


1. Supports GM Tech2Win and GDS2, can replace GM original tool MDI/ Tech2.

2. Compatible with applications that diagnose engines, transmissions, ABS, instrument panels and more

3. Mixed fleet capabilities with broad protocol support

4. Quick access to vehicle data for maintenance or management reports

5. Quickly attaches to vehicle's diagnostic connector

6. Supports GM vehicle from year 2000 to 2020

7. Supports GM online programming (ECU Programming, ECU performance upgrade) with an online account

8. The software is updated by link while the firmware/license is updated online.

VXDiag VCX NANO for GM / OPEL FEATURES:

* Fully compatible with SAE-J2534-1 & SAE-J2534-2
* All current and most legacy vehicle protocols: CAN, UART, KW2000, Class2, GM LAN, etc.
* USB vehicle-to-PC connectivity
* CE and FCC compliance for hardware
* Supports Windows 7 32bit
* Firmware and License Updatable
Global Diagnostic System (GDS and GDS2) V 2022.5 with 2021 database

It is PC-to-vehicle interface compatible with multiple software applications, minimizing your investment in multiple brand-specific diagnostic interfaces.
* New Diagnostic Application Software required for all GM Global Architecture (Global A) Vehicles.
* GDS & GDS2 (Global Diagnostic System) is software which runs on a specific PC. Updates received via TIS2Web.

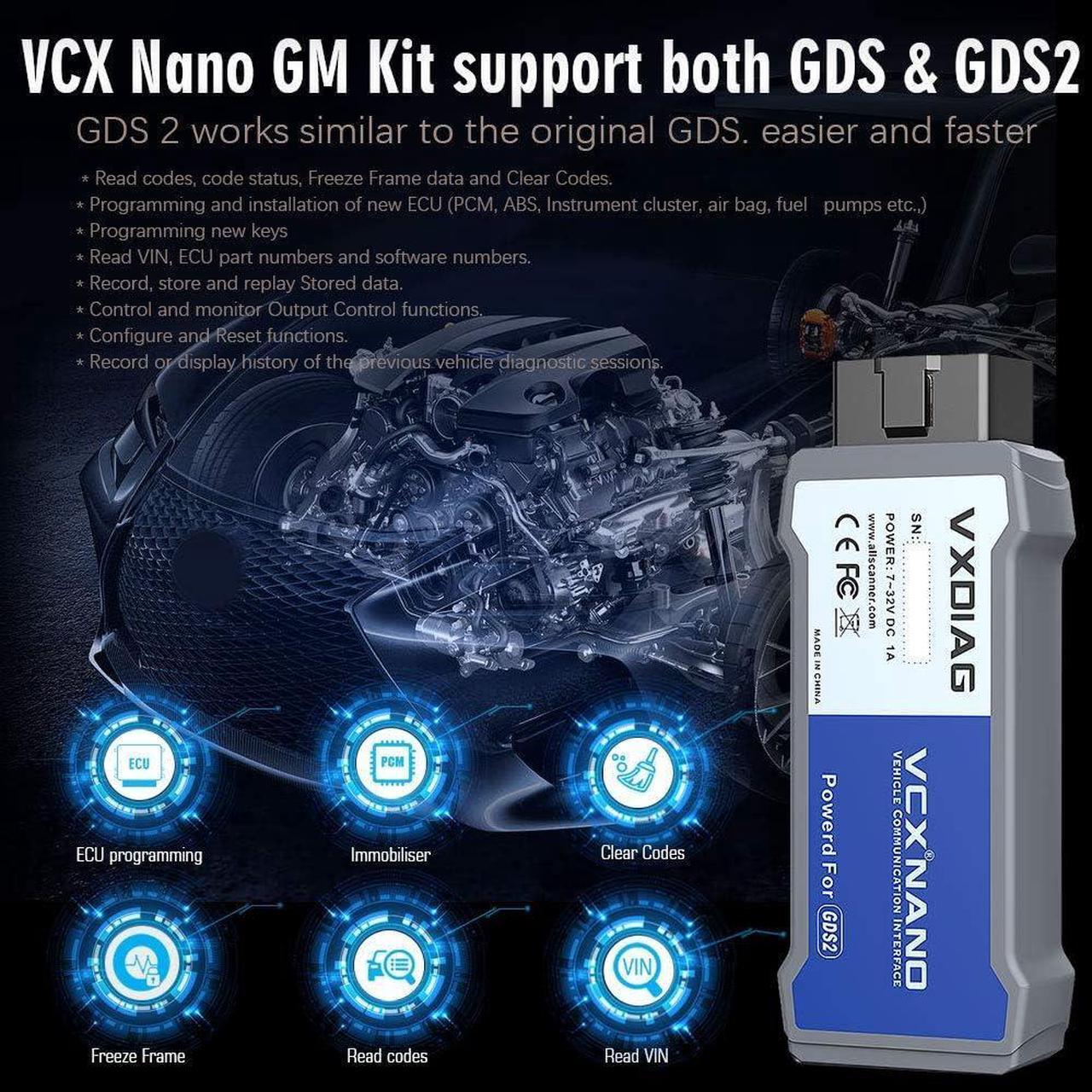

VCX Nano GM Scan Tool support both GDS and GDS2. GDS 2 works similar to the original GDS. easier and faster
GDS 2 provides the following capabilities in multiple languages:
* Read codes, code status, Freeze Frame data and Clear Codes.
* Read VIN, ECU part numbers and software numbers.
* Record, store and replay Stored data.
* Control and monitor Output Control functions.
* Configure and Reset functions.
* Record or display history of the previous vehicle diagnostic sessions.

COMPATIBLE SOFTWARE:

* Support PC-based diagnostics with rollout of the Global Diagnostic System GDS & GDS2
* Support GM TIS2WEB online Service Programming System (SPS)
* Support Tech2Win application to offering a larger screen with all of the Tech 2 tool functionality

Service Programming System (SPS/SPS2 Techline Connect) (Requires GM online account for SPS programming)
* passthrough programming on GM past model and Global A vehicles
* Increase reprogramming speed 20-70% and get ready to service new models
For pass-through programming of electronic control units on all vehicles built since 1996 and future model releases. The VCX Nano Prime GM KIT is between 20% and 70% faster than Tech 2. For example, on a new Tahoe hybrid with 7 ECUS, it would normally take 2 full hours to reprogram. But, with VCX Nano the process is completed in just 45 minutes. Thats a 64% difference and means you could service 10vehicles rather than 4in an 8-hour day! The potential to increase revenues is dramatic.
(To set up VCX NANO with SPS2 Techline Connect, install Passthru driver only. Select Device as VXDIAG)

Tech2Win Function
Tech2Win, an application version of the Tech 2 and CANdi (Control Area Network diagnostic interface) moduleTech2Win can be used during a vehicle road test, offering a larger screen with all of the Tech 2 tool functionality. The Tech2Win application offers all of the features and functions of the Tech 2 for Opel etc. Tech2win need to install on win 7 32 bits.

New Vehicles Model list
VCX Nano Prime GM KIT is the only full-spectrum diagnostic and reprogramming tool capable of servicing new Delta and Epsilon vehicles (with auxiliary CAN bus that cannot be serviced by Tech2). Below is the list of vehicles being delivered this year that will rely exclusively on this tool for service.

Packing list:
1pc x VXDiag VCX NANO for GM
1pc x USB cable

How to resolve "License Expired" issue?
Please download the latest vx manager on our "Download" column. Use new vx manager to update firmware and driver and then update your device authorization.
