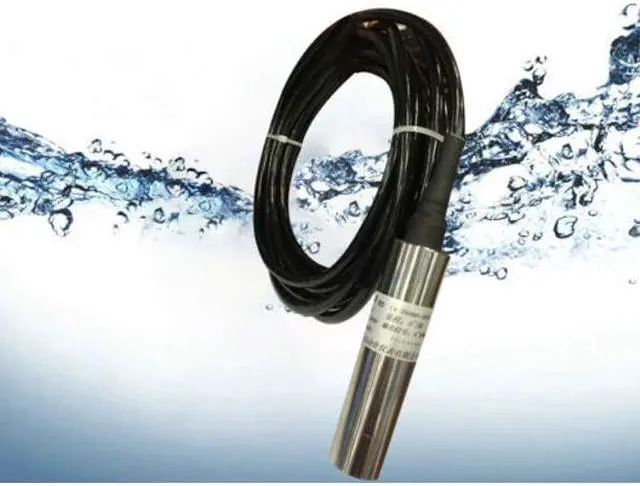

Intsupermai Smart Water Level Sensor with 32.8ft(10m) Cable Submersible Liquid Level Transmitter 0-10m H2O Pressure Transducer 24-32VDC
- The measurement medium should be compatible with stainless steel.You can pull the line into a semi-circular and make the vent down.
- Don't connect the wires when the power is on, connect the power after checking the connection wires.
- Shell and power should be connected with earth; don't change the welded parts and connected wires of the outgoing products when customer use it.
- Sensor is related to the precision device, don't disassemble, and what's more, don't touch the diaphragm, in case of break.
- To avoid being submerged, please add waterproof box in the outdoors and don’t block the vent.
+
+
Overview
Specs
Reviews
Technical Parameters:
Measurement Range: 0-10mH2O/100kPa
Cable Length: We will offer 10 meters in order to make sure the enough length
Measurement Medium: Water
Power Supply: 24-32VDC
Output Signal: 4-20mA
Accuracy: ±0.5%FS
Overload Capacity: Two times full-scale pressure
Using Temperature: 0c—70?
Compensation Temperature Range: 0c—60?
ZTC: (typical): ±0.02%FS/?
STC: (typical): ±0.02%FS/?
Long-term Stability (typical): ±0.1%FS/year
Waterproof Class: IP68
Load Resistance: less than (U-10)/0.02O
Shell Material: 316L stainless steel
Explosion-proof Type: Exia II CT6
Notice
1.Prevent from the surge voltage, over-voltage, over-current and the protection of reversed polarity.
2.Do the test to make sure the ability of overload resistance and shock resistance, precisely ensure the overload capacity.
3.Implement the electromagnetic interference resistance to avoid the problem taken place under the condition of complicated electromagnetism environment.
4.All sensitive chips are from the imported OEM parts, in order to keep the long-term stability.
Item included: 300187
Smart Water Level Sensor with 32.8ft(10m) Cable Submersible Liquid Level Transmitter 0-10mH2O Pressure Transducer 24-32VDC
Measurement Range: 0-10mH2O/100kPa
Cable Length: We will offer 10 meters in order to make sure the enough length
Measurement Medium: Water
Power Supply: 24-32VDC
Output Signal: 4-20mA
Accuracy: ±0.5%FS
Overload Capacity: Two times full-scale pressure
Using Temperature: 0c—70?
Compensation Temperature Range: 0c—60?
ZTC: (typical): ±0.02%FS/?
STC: (typical): ±0.02%FS/?
Long-term Stability (typical): ±0.1%FS/year
Waterproof Class: IP68
Load Resistance: less than (U-10)/0.02O
Shell Material: 316L stainless steel
Explosion-proof Type: Exia II CT6
Notice
1.Prevent from the surge voltage, over-voltage, over-current and the protection of reversed polarity.
2.Do the test to make sure the ability of overload resistance and shock resistance, precisely ensure the overload capacity.
3.Implement the electromagnetic interference resistance to avoid the problem taken place under the condition of complicated electromagnetism environment.
4.All sensitive chips are from the imported OEM parts, in order to keep the long-term stability.
Item included: 300187
Smart Water Level Sensor with 32.8ft(10m) Cable Submersible Liquid Level Transmitter 0-10mH2O Pressure Transducer 24-32VDC
