Godiag GT107+ Description:
GODIAG GT107+ DSG plus gearbox data adapter is a DSG gearbox connection adapter. DSG gearbox maintenance engineers can clone, diagnose and repair DSG gearbox ECU and can also read, write and adjust data for DSG gearbox ECU via PCMFlash, PCMTuner, and Kessv2, etc.
This adapter has automatic and manual selection for PCMFlash software. For data reading and writing, you can choose Auto, and for diagnosis you can choose "Manual". For other software kessv2, DQ200, DQ250, DQ500, you can also choose "Manual".
Moreover, with the car battery power, the adapter can directly read and write DSG gearbox data and you can clearly check the communication status during the data reading and writing process.

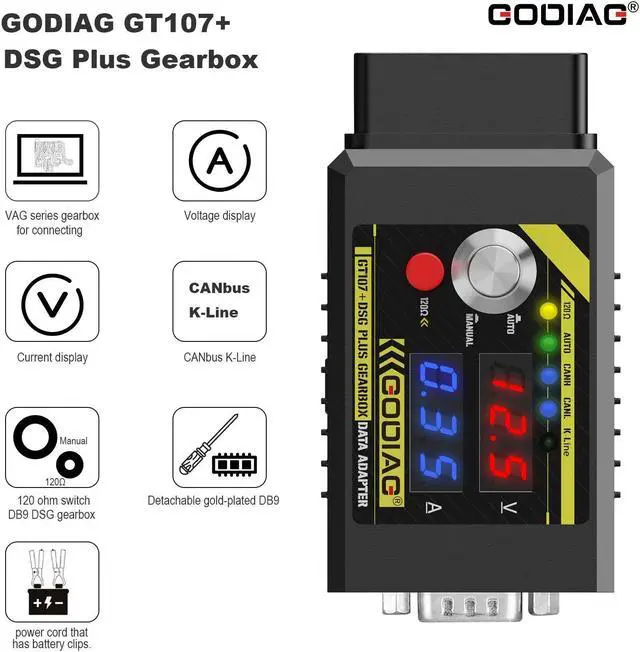

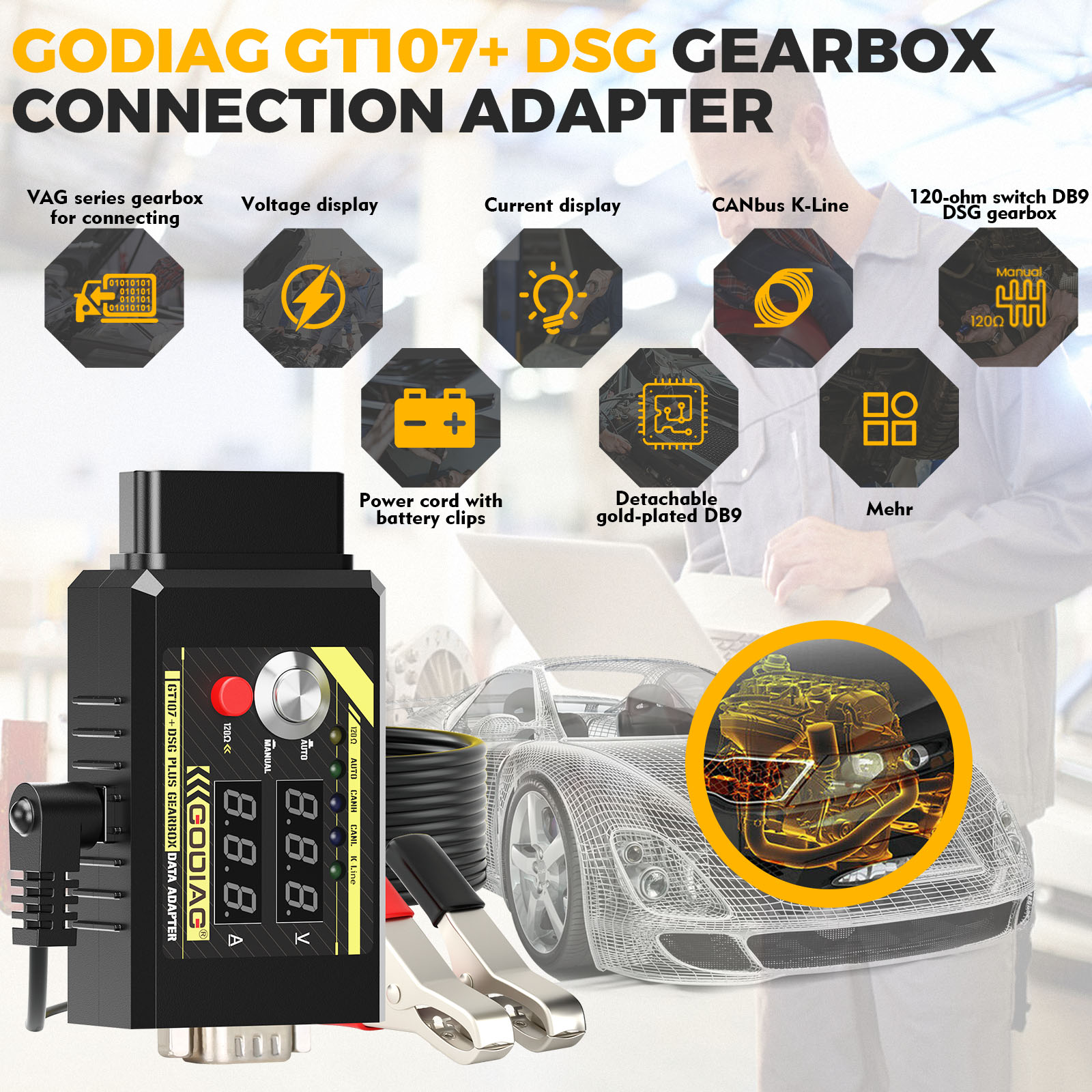

GODIAG GT107+ DSG Plus Features:

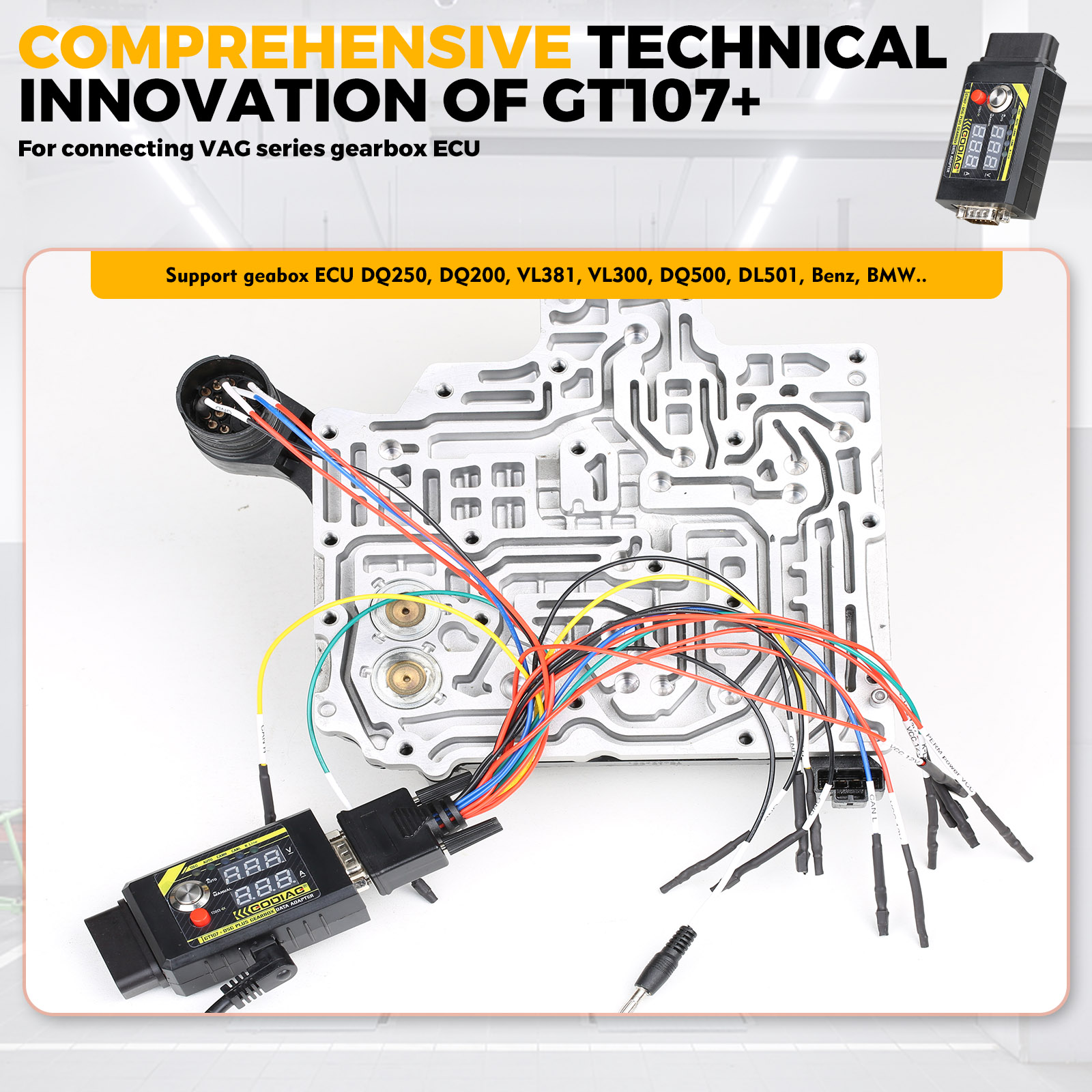

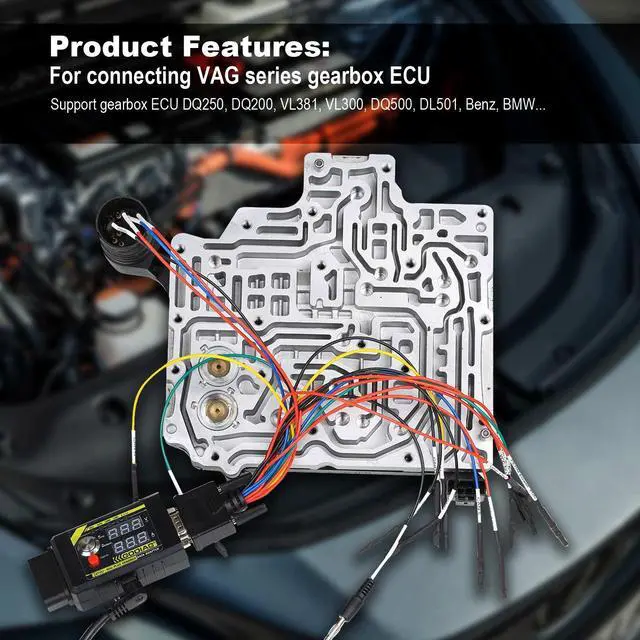

1. The adapter is suitable for connecting VAG series gearbox ECUs, supporting gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501, Benz, BMW...

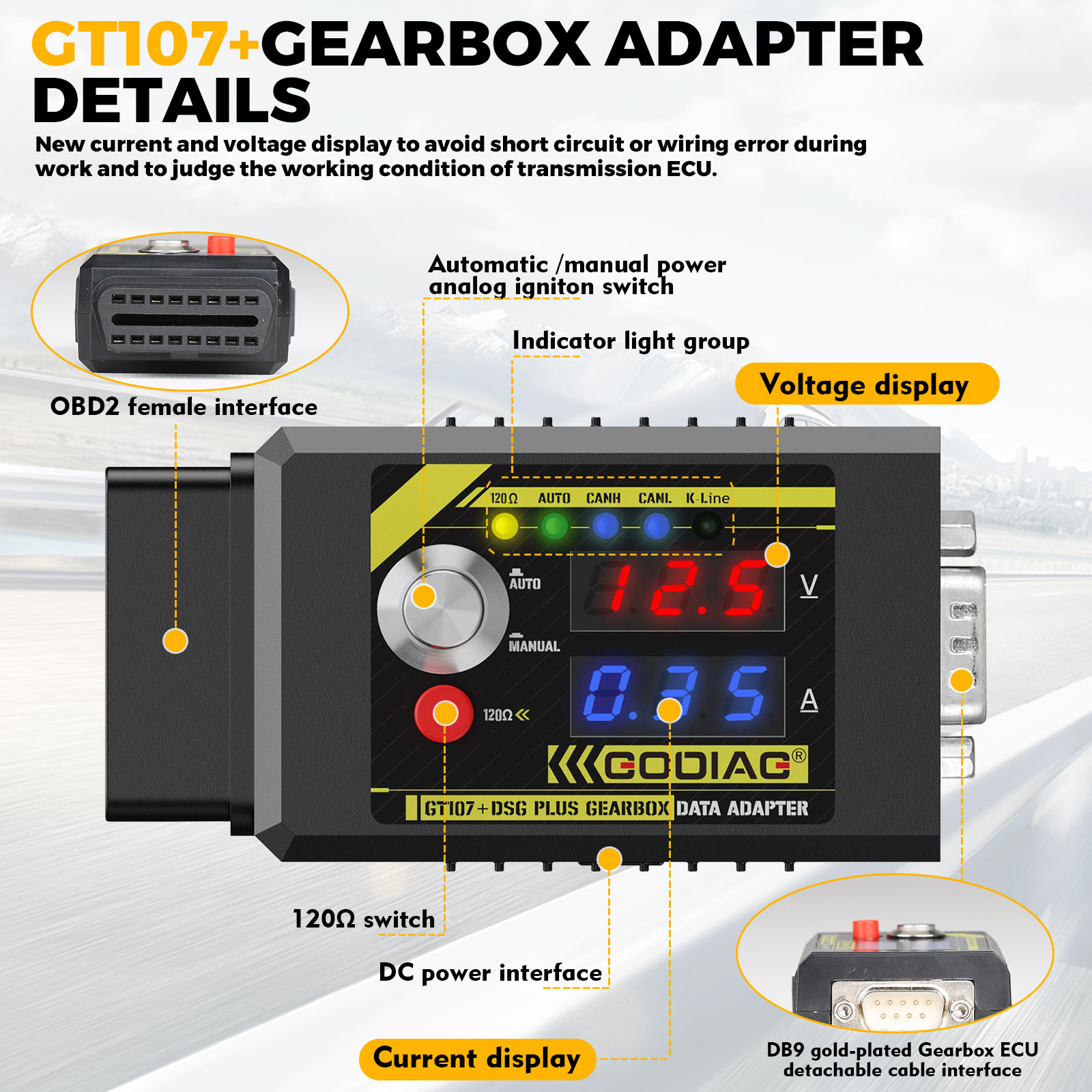

2. Voltage display: the user can know the current operating voltage of the gearbox ECU. If there is a short circuit or wrong wiring, the voltage will drop severely, which can be used to judge the problem.
3. The current display can display the current working current of the gearbox ECU, which is used to judge the working condition of the gearbox ECU.
4. The communication indicator can display the current CANbus K-Line communication status.
5. Manual and automatic power switch, 120 ohm switch. There are boot mode cable (DB9 DSG gearbox universal conversion jumper) and a probe.

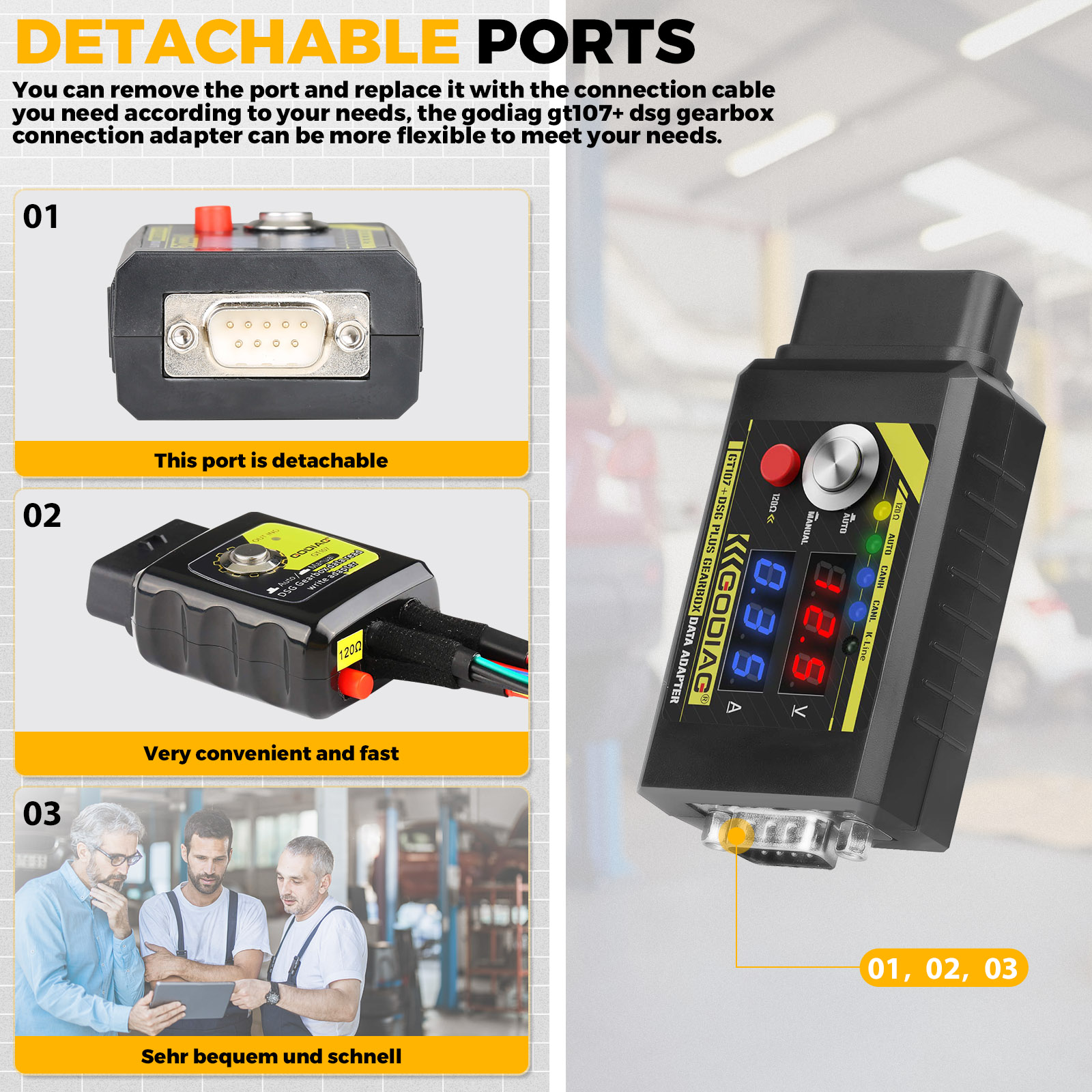

6. Detachable gold-plated DB9 connection interface, users can make professional connection ports by themselves to realize DIY development.
7. Equipped with power cord that has battery clips. Users can draw power from the vehicle battery.
GODIAG GT107 Plus DSG plus Connection Diagram & Operation:

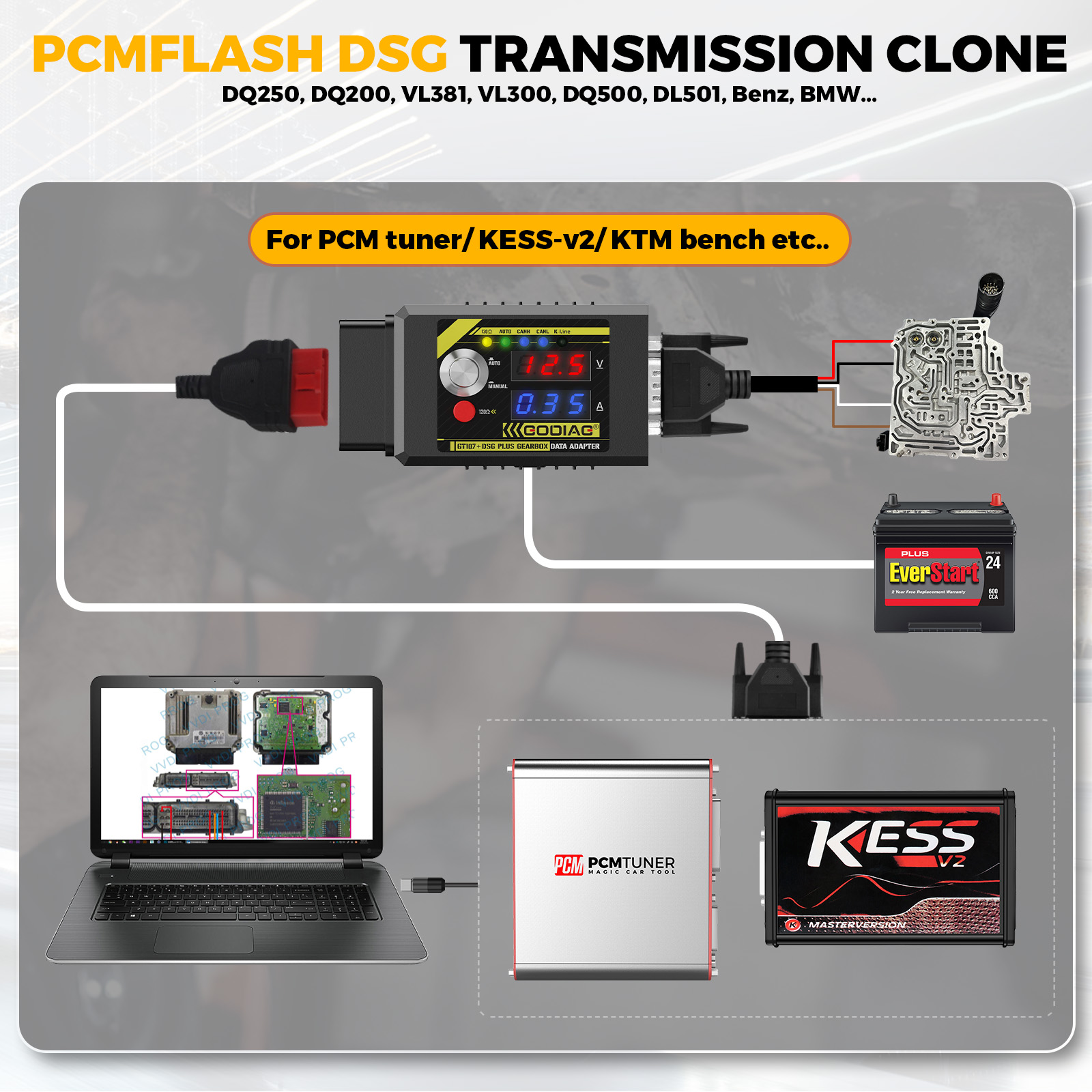

1. Used with PCMtuner:
Easy Operation:
1.Connect the Godiag GT107+ to the gearbox ECU according to the gearbox ECU wiring definition. For VAG DQ250, DQ200, VL381, VL300, DQ500, DL501, for Renault DC0/DC4, Gen2, for Honda LUK UDCT.
2.Connect the 12V 2A DC power supply. The function buttons must be popped up before connecting the power supply.
3.GODIAG GT107 Plus analog ignition switch is in automatic mode if the ignition switch is not pressed, the voltage and current data of the adapter displays 0V 0A, and it is in manual mode, if the ignition switch is pressed, the adapter displays the current working voltage of the power supply, and the current working current of gearbox ECU.
Note please select the automatic or manual analog ignition mode, according to the mode required by the device for reading and writing data.
4.Connect PCMFlash, PCMTuner, J2534passthru.
5.Perform data reading and writing operations.
2. Used on the Car:
Easy Operation:
1.According to the wiring definition of Gearbox ECU, connect Godiag GT107+ to the gearbox ECU. For VAG DQ250, DQ200, VL381, VL300, DQ500, DL501, for Renault DC0/DC4, Gen2, for Honda LUK UDCT.
2.Connect the 12V 2A DC power supply. The function buttons must be popped up before connecting the power supply.
3.GODIAG GT107 Plus analog ignition switch is in automatic mode if the ignition switch is not pressed, the voltage and current data of the adapter displays 0V 0A, and it is in manual mode, if the ignition switch is pressed, the adapter displays the current working voltage of the power supply, and the current working current of gearbox ECU.
Note please select the automatic or manual analog ignition mode, according to the mode required by the device for reading and writing data.
4.Connect PCMFlash, PCMTuner, J2534passthru.
5.Perform data reading and writing operations.
3. GODIAG GT107+ DSG plus Used with KESS V2, DQ200, DQ250, DQ500:
Easy Operation:
1.Connect the Godiag GT107+ to the gearbox ECU according to the gearbox ECU wiring definition. For VAG DQ250, DQ200, VL381, VL300, DQ500, DL501, for Renault, DC0/DC4, Gen2, for Honda LUK UDCT, Benz, BMW, gearbox ECU.
2.Connect the 12V 2A DC power supply. The function buttons must be popped up before connecting the power supply.
3.GODIAG GT107 + analog ignition switch is in manual mode if the ignition switch is pressed, the adapter displays the current working voltage of the power supply, and the current working current of gearbox ECU.
4.Connect OBD2 data reading and writing device or diagnostic device.
5.Perform Gearbox ECU data reading, writing or diagnostic operations.
| Products |
|
|
| VAG series DSG gearbox |
|
|
| Manual Ignition Switch |
|
|
| PCMFlash L-Line automatic control |
|
|
| Boot line and boot probe and 120 ohm CAN resistance circuit |
|
|
| CAN H CANL K-Line communication indicator light |
|
Yes, but must be used with GT105 |
| Vehicle battery tap + automatic control power indicator |
|
|
| 120 ohm CAN resistance switch indicator |
|
x |
| Voltage display + power indicator |
|
x |
| Can remove the connection cable or connect other special adapters |
|
x |
| Supports other ECU gears |
Add VCC GND cable, support more gearbox ECUs |
x |

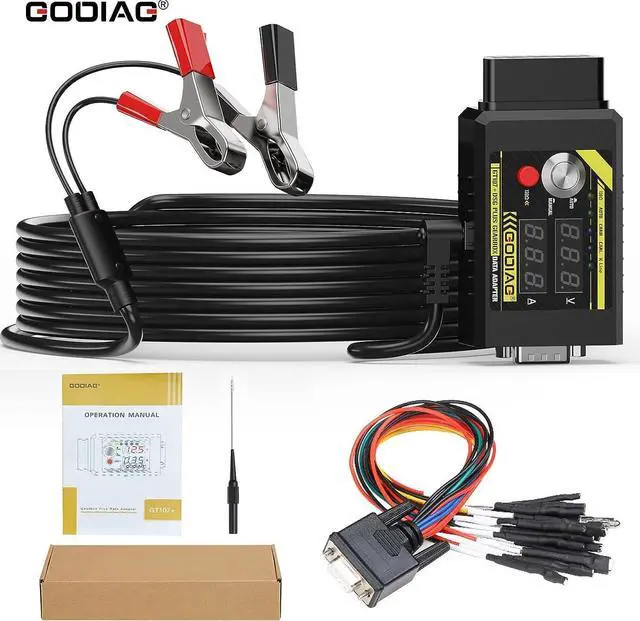

Package Includes:
1pc x Godiag GT107+ ECU Prog AD
1pc x DB9 DSG Gearbox Universal Conversion Jumper
1pc x Power Cord with Battery Clips
1pc x Probe
1pc x DC power adapter(5.5*2.1mm female to 5.5*2.5mm male)
1pc x Manual
GODIAG GT107+ DSG Plus Gearbox Data Adapter with inbuild CAN Resistor
Godiag GT107+ Description:
GODIAG GT107+ DSG plus gearbox data adapter is a DSG gearbox connection adapter. DSG gearbox maintenance engineers can clone, diagnose and repair DSG gearbox ECU and can also read, write and adjust data for DSG gearbox ECU via PCM
Flash, PCM
Tuner, and Kessv2, etc.
This adapter has automatic and manual selection for PCM
Flash software. For data reading and writing, you can choose Auto, and for diagnosis you can choose "Manual". For other software kessv2, DQ200, DQ250, DQ500, you can also choose "Manual".
Moreover, with the car battery power, the adapter can directly read and write DSG gearbox data and you can clearly check the communication status during the data reading and writing process.
Top reasons to get GODIAG GT107 DSG Plus:
1.
Essential ECU connectors: use our GODIAG car ECU programmer adapter to read, write and adjust data for the ECU of DSG transmission with software such as PCM
Flash, PCM
Tuner and Kess V2 and etc.
2.
ECU CLONE: The GODIAG GT107 car ECU programmer adapter connector is a professional adapter for DSG gearbox connection. Suitable for connecting VAG series gearbox ECUs, supporting gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501, Benz, BMW and ect.
3.
JUST NEED ONE TOOL: 2023 latest GT107 has been fully upgraded to support, no need GT105. More convenient to carry and use.
4.
DIY TOOL: Detachable gold-plated DB9 connection interface, users can make professional connection ports by themselves to realize DIY development.
5.
Two modes: this car ECU programmer adapter has automatic and manual options for the PCM flash software. For reading and writing data you can choose "Auto" and for diagnostics you can choose "Manual". For other software kessv2, DQ200, DQ250, DQ500 you can also choose "manual". GODIAG supports all the programming actions you want to implement.
6.
DIRECT READING: The ECU clone chip tuning tool adapter can read and write DSG transmission data directly when using the car battery power, which is convenient and fast. The OBD2 universal jumper, DC car battery cable and Battery clip in the package are made with exclusive technology and very good quality.
7.
High quality: our adapter has standard OBD2 independent PIN4, PIN5. PIN4 and PIN5 can be switched between short-circuit and non-short circuit. Pure copper female seat supports repeated insertion and removal and has a long service life. The DC connector has a resettable 7A fuse for safe operation.
GODIAG GT107+ DSG Plus Features:
1. The adapter is suitable for connecting VAG series gearbox ECUs, supporting gearbox ECU DQ250, DQ200, VL381, VL300, DQ500, DL501, Benz, BMW...
2.
Voltage display: the user can know the current operating voltage of the gearbox ECU. If there is a short circuit or wrong wiring, the voltage will drop severely, which can be used to judge the problem.
3. The current display can display the current working current of the gearbox ECU, which is used to judge the working condition of the gearbox ECU.
4. The communication indicator can display the current CANbus K-Line communication status.
5. Manual and automatic power switch, 120 ohm switch. There are boot mode cable (DB9 DSG gearbox universal conversion jumper) and a probe.
6. Detachable gold-plated DB9 connection interface, users can make professional connection ports by themselves to realize DIY development.
7. Equipped with power cord that has battery clips. Users can draw power from the vehicle battery.
GODIAG GT107+ DSG plus Connection Diagram & Operation:
1. Used with
PCMtuner:
Easy Operation:
1. Connect the Godiag GT107+ to the gearbox ECU according to the gearbox ECU wiring definition. For VAG DQ250, DQ200, VL381, VL300, DQ500, DL501, for Renault DC0/DC4, Gen2, for Honda LUK UDCT.
2. Connect the 12V 2A DC power supply. (The function buttons must be popped up before connecting the power supply. )
3. GODIAG GT107 + analog ignition switch is in automatic mode if the ignition switch is not pressed, the voltage and current data of the adapter displays 0V 0A, and it is in manual mode, if the ignition switch is pressed, the adapter displays the current working voltage of the power supply, and the current working current of gearbox
ECU. (Note: please select the automatic or manual analog ignition mode, according to the mode required by the device for reading and writing data, )
4. Connect PCM
Flash, PCM
Tuner, J2534passthru.
5. Perform data reading and writing operations.
2. Used on the
Car:
Easy Operation:
1. According to the wiring definition of Gearbox ECU, connect Godiag GT107+ to the gearbox ECU. For VAG DQ250, DQ200, VL381, VL300, DQ500, DL501, for Renault DC0/DC4, Gen2, for Honda LUK UDCT.
2. Connect the 12V 2A DC power supply. (The function buttons must be popped up before connecting the power supply. )
3. GODIAG GT107 + analog ignition switch is in automatic mode if the ignition switch is not pressed, the voltage and current data of the adapter displays 0V 0A, and it is in manual mode, if the ignition switch is pressed, the adapter displays the current working voltage of the power supply, and the current working current of gearbox
ECU. (Note: please select the automatic or manual analog ignition mode, according to the mode required by the device for reading and writing data, )
4. Connect PCM
Flash, PCM
Tuner, J2534passthru.
5. Perform data reading and writing operations.
3. GODIAG GT107+ DSG plus Used with KESS V2, DQ200, DQ250, DQ500:
Easy Operation:
1. Connect the Godiag GT107+ to the gearbox ECU according to the gearbox ECU wiring definition. For VAG DQ250, DQ200, VL381, VL300, DQ500, DL501, for Renault, DC0/DC4, Gen2, for Honda LUK UDCT, Benz, BMW, gearbox ECU.
2. Connect the 12V 2A DC power supply. (The function buttons must be popped up before connecting the power supply. )
3. GODIAG GT107 + analog ignition switch is in manual mode if the ignition switch is pressed, the adapter displays the current working voltage of the power supply, and the current working current of gearbox ECU.
4. Connect OBD2 data reading and writing device or diagnostic device.
5. Perform Gearbox ECU data reading, writing or diagnostic operations
Package Includes:
1pc x Godiag GT107+ ECU Prog AD
1pc x DB9 DSG Gearbox Universal Conversion Jumper
1pc x Power Cord with Battery Clips
1pc x Probe
1pc x DC power adapter( 5.5 * 2.1 mm female to 5.5 * 2.5 mm male)
1pc x Manual
